(2) On speedometers with total and trip odometers in line (fig. 55) remove retaining screw, pry up end of
retainer, and pull out odometers.

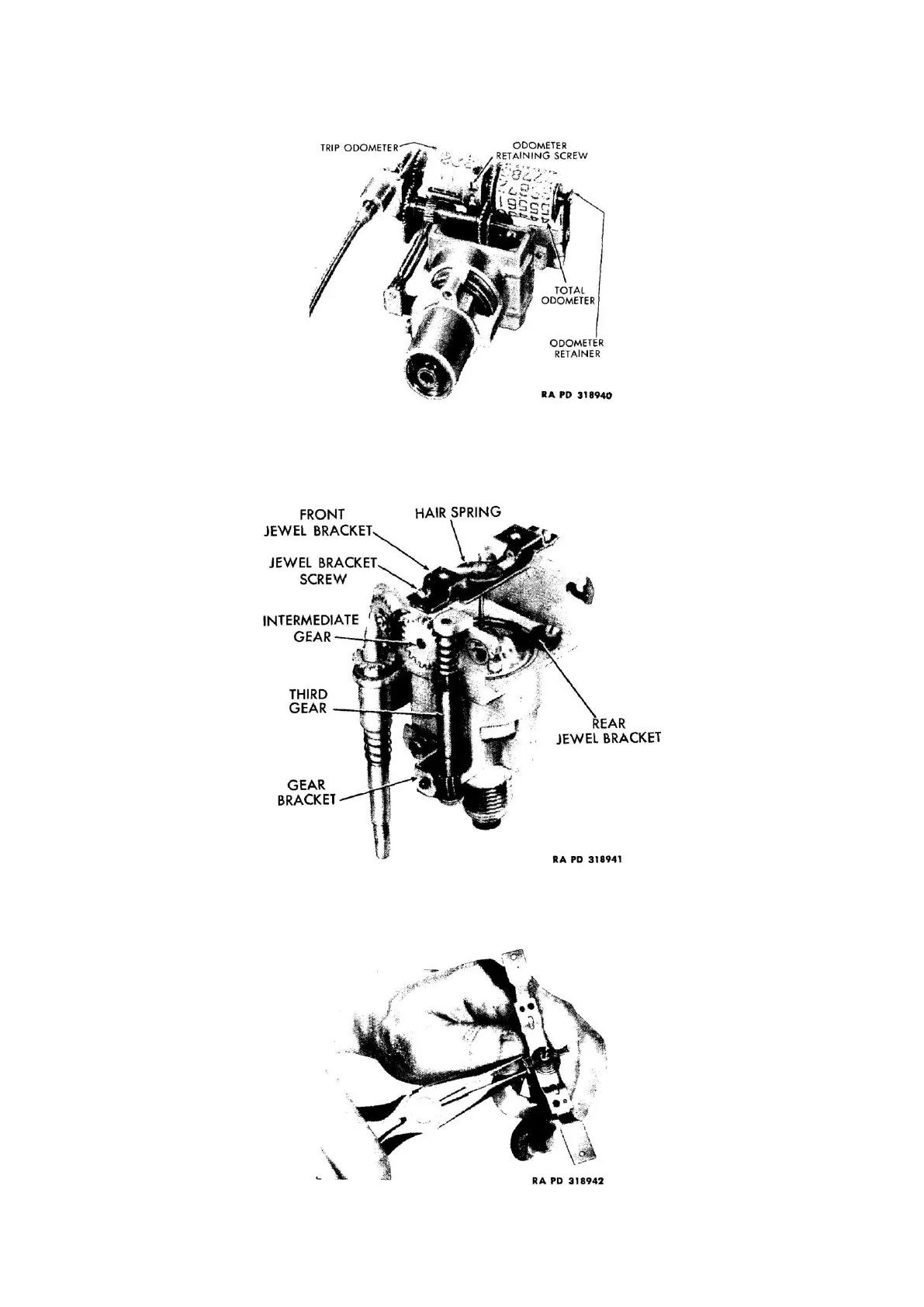

Figure 55: Speedometer mechanism with odometers in line
d. Remove jewel brackets and speed cup (fig. 56): Remove rear jewel bracket screw and lift out bracket.
Remove the two front jewel bracket screws and lift out speed cup, front jewel bracket, and hair spring as an
assembly.
Figure 56: Speedometer mechanism (odometers removed)
e. Remove hair spring: Remove hair spring pin by placing one jaw of long-nosed pliers against small end of
pin and other jaw against end of hair spring regulator and squeezing pin out (fig. 57).
Figure 57: Removing hair spring pin
