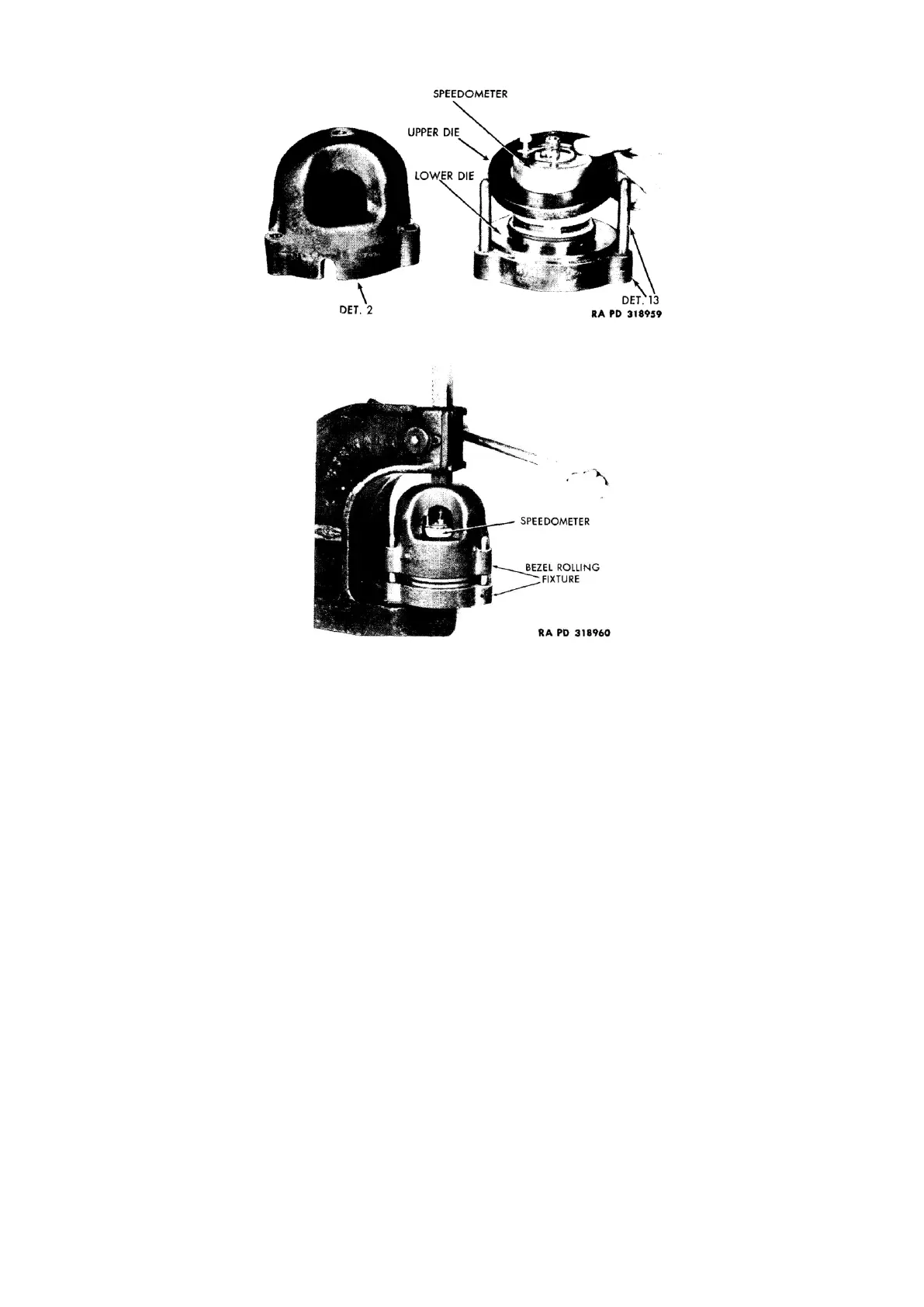

Figure 74: Placing upper die of Bezel rolling fixture (T-178730) over speedometer
Figure 75: Rolling bezel with fixture (T-178730) in arbor press
(3) Attach miscellaneous parts to speedometer, such as reset shaft nut, reset knob, sealing gasket and plate,
mounting bracket, etc.
