TM 9-1829A, April 1944 60/100 2021-07-07

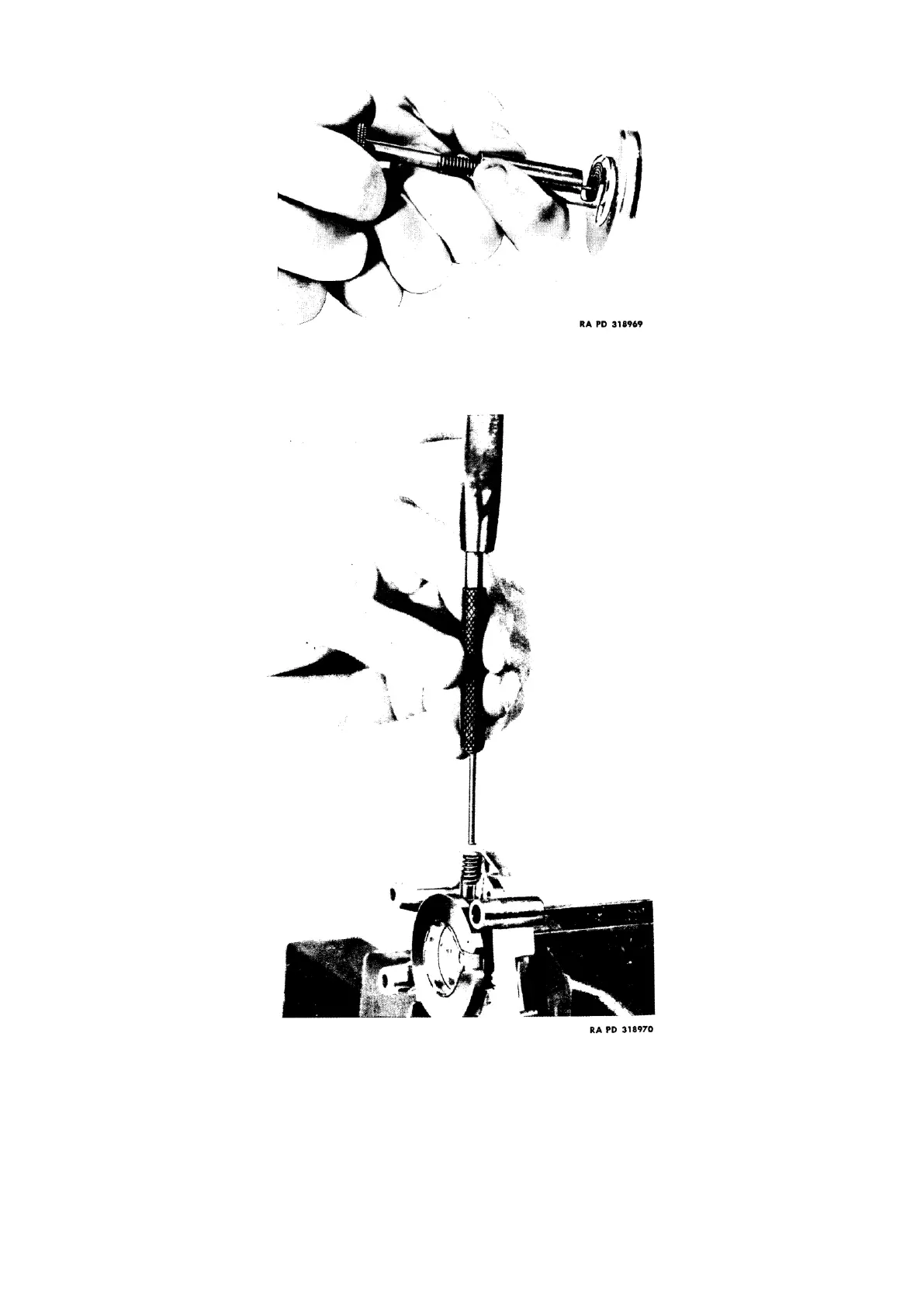

Figure 84: Removing hair spring, using puller (T-66296)
g. Remove second gear: Place frame, gear, and magnet assembly in vise (not too tightly). Using punch, drive
on end of second gear (fig. 85) until brass bushing at other end of shaft drops out.
Figure 85: Removing second gear
