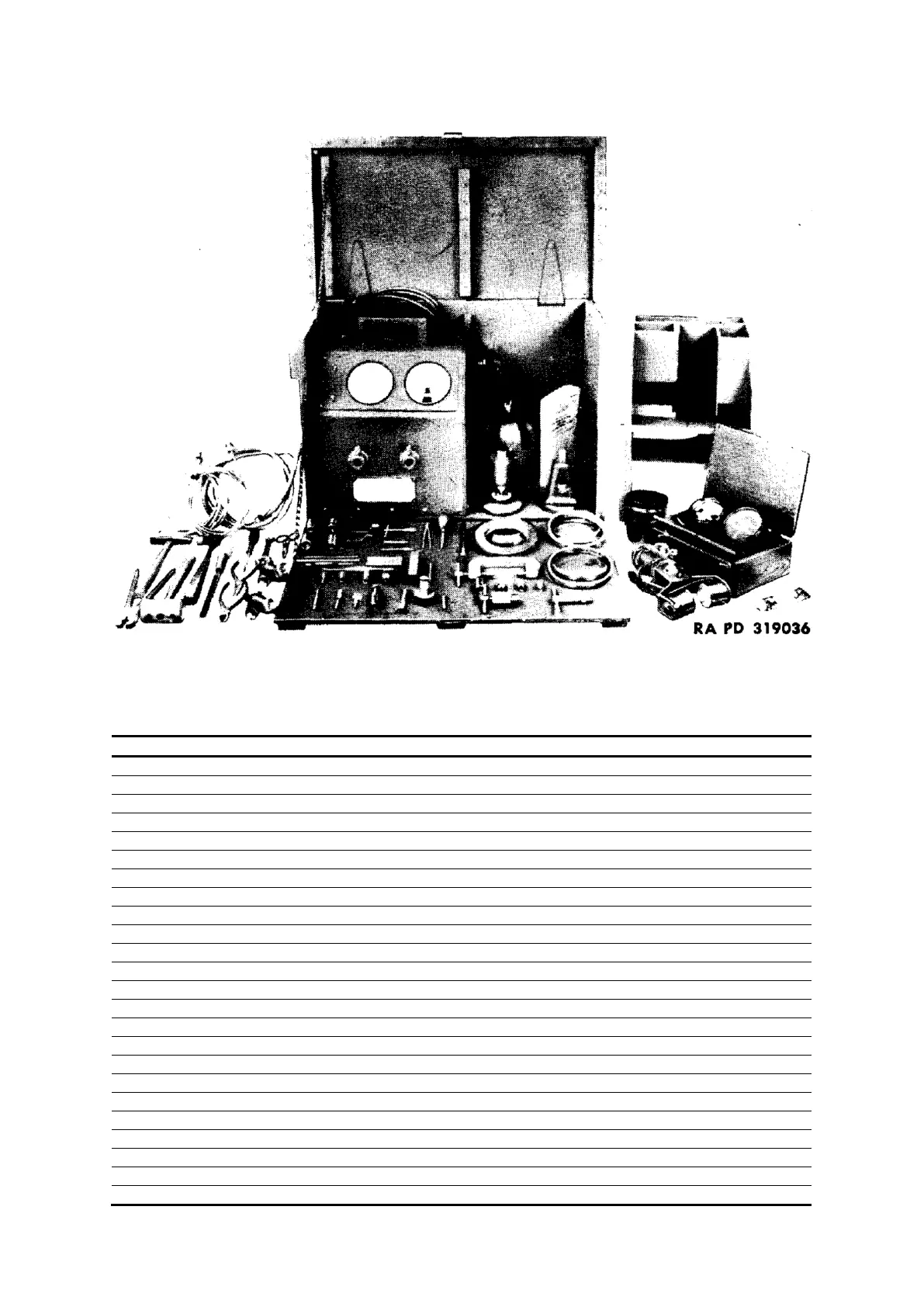

Figure 151: Master tool kit (T-187852)
64. Special tools
Figures 152, 153 and 154
Fig. no.
Key
Tool name
Mfr’s no.
152
A
Adapter, calibrating (for 0.104 in. square female thread drive)
T-170886
152
B
Adapter, calibrating (for 0.104 in. male thread drive)
T-170852
152
C
Adapter, calibrating (for 0.187 in. square drive
T-170863
152
D
Adapter, calibrating (for connecting flexible shafts
T-178719
153
A
Adjuster, calibration
STS-10878
153
B
Adjuster, front jewel
846862
153
C
Adjuster, front jewel
T-178705
153
D
Adjuster, hairspring
T-51742
153
E
Adjuster, magnet regulator
T-178715
154
A
Crimper, flexible shaft ferrule
T-52644
153
F
Extractor, gear
ST-263-34
154
B
Fixture, bezel rolling
T-178730
154
C
Fixture, inner core cutting, squaring and tip attaching
T-136374
153
G
Fixture, magnet assembly
T-170666
153
H
Fixture, staking, intermediate gear
T-178717
153
I
Gage, feeler (0.005 in.)
ST-263-27
153
J
Gage, feeler (0.003 in.)
ST-263-31
-
-
Grease, hi-low test
408083
-
-
Grease, magnet bearing
ST-263-36
153
K
Installer, gear
ST-263-35
152
E
Joint, swivel (for CW drive)
T-176827
152
F
Joint, swivel (for CCW drive)
T-178704
154
D
Kit, disassembly and assembly Stewart-Warner type-666 drive-joints
T-178708
153
L
Kit, hair spring assembly
T-29
