CONTROLS AND FEATURES (R type)
Shifting gear into forward, reverse, or
neutral and the engine speed
adjustment can be performed with the
remote control lever.
It is necessary to pull up the neutral
release lever to operate the remote
control lever.
FORWARD:
Moving the lever to the FORWARD
position (i.e. approximately 32° from
the NEUTRAL position) engages the
gear into forward. Moving the lever
further from the FORWARD position
will increase the throttle opening and
the boat forward speed.
NEUTRAL:
Engine power is cut off from the
propeller.
REVERSE:
Moving the lever to the REVERSE
position (i.e. approximately 32° from
the NEUTRAL position) engages the
gear into reverse. Moving the lever
further from the REVERSE position
will increase the throttle opening and
the boat reverse speed.

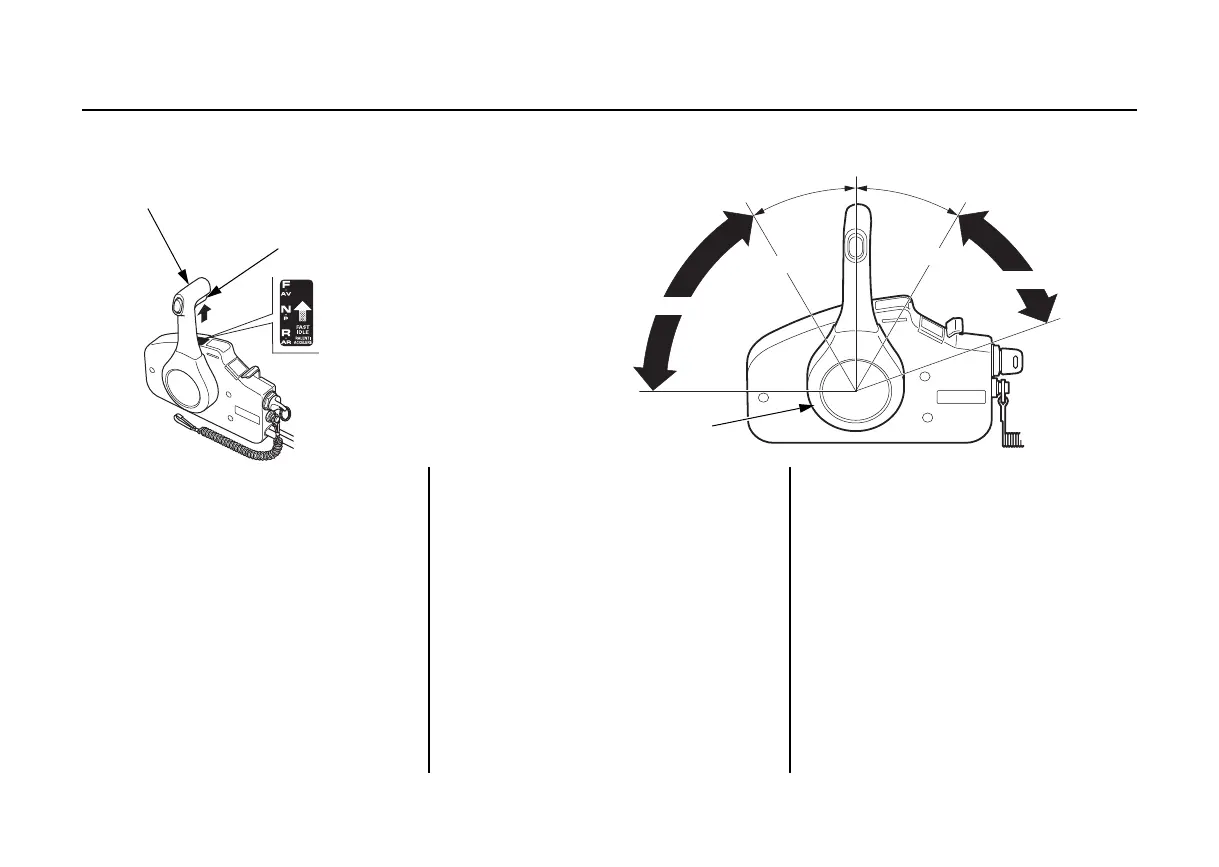

Remote Control Lever
REMOTE CONTROL LEVER
NEUTRAL RELEASE LEVER
FORWARD
NEUTRAL
REVERSE
THROTTLE OPENING
THROTTLE OPENING
NEUTRAL
FORWARD REVERSE
32°32°
SHIFT SHIFT
MINIMUM
MINIMUM
MAXIMUM
REMOTE CONTROL LEVER
MAXIMUM
(R1 type)
