CONTROLS AND FEATURES (Common)

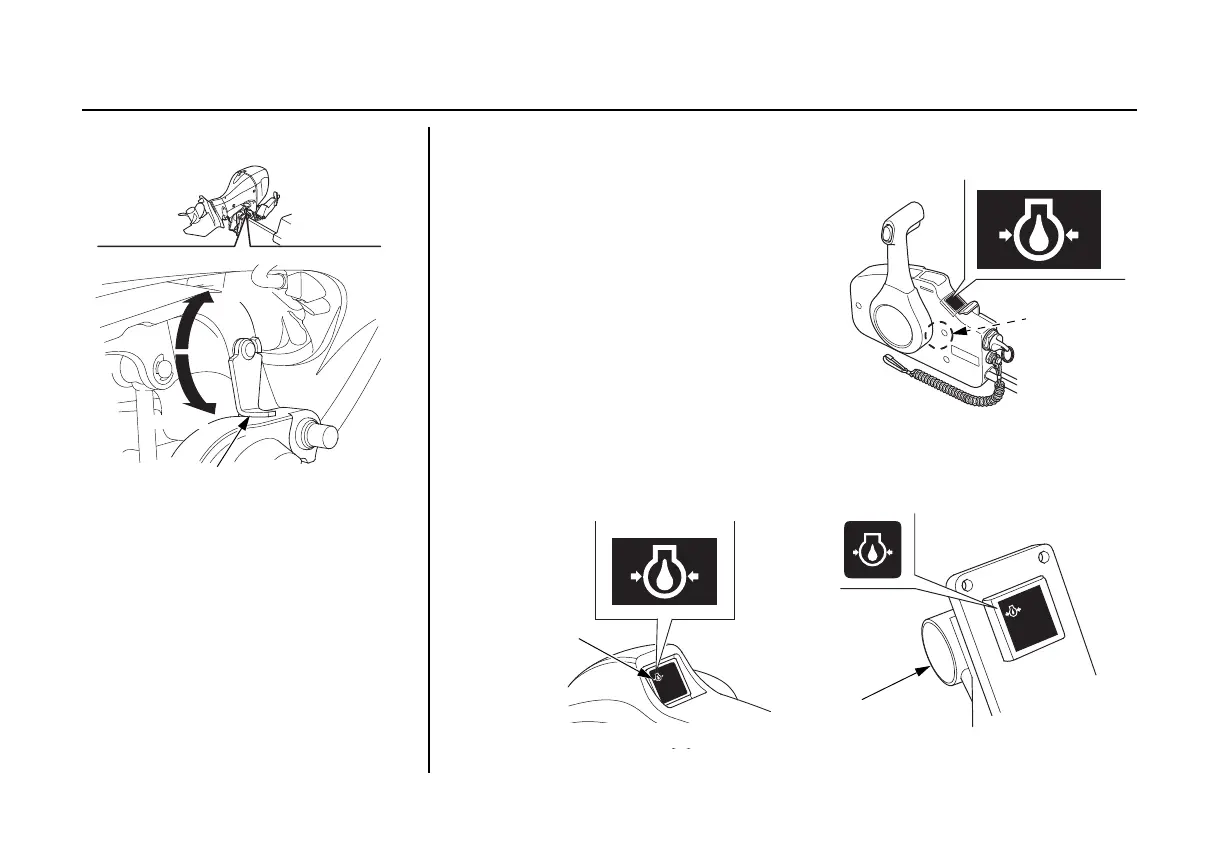

Tilt Lock Lever
Use the tilt lock lever to raise the
outboard motor and lock it in the
position when the boat is moored or
anchored for a long time.
Tilt the outboard motor as far as it
goes and move the lock lever in the
locking direction.
Oil Pressure Indicator/Buzzer
The oil pressure indicator turns off
and the buzzer sounds when the oil
level is low and/or the engine
lubrication system is faulty.
The engine speed slows down
gradually this time.
If using a panel-mount or top-mount
switch panel without indicators,
check the indicators displayed on an
NMEA2000-compatible device.
For information about NMEA2000-
compatible device displays, refer to
the display device's manual.
(H type)
(R1 type)
(R2, R3 types)
(GREEN)
OIL PRESSURE
INDICATOR
(internal buzzer)
OIL PRESSURE
INDICATOR
(GREEN)
BUZZER
OIL PRESSURE
INDICATOR
(GREEN)
BUZZER
