PRE-OPERATION CHECKS
Steering Handle Friction (H type)
(H1 type)

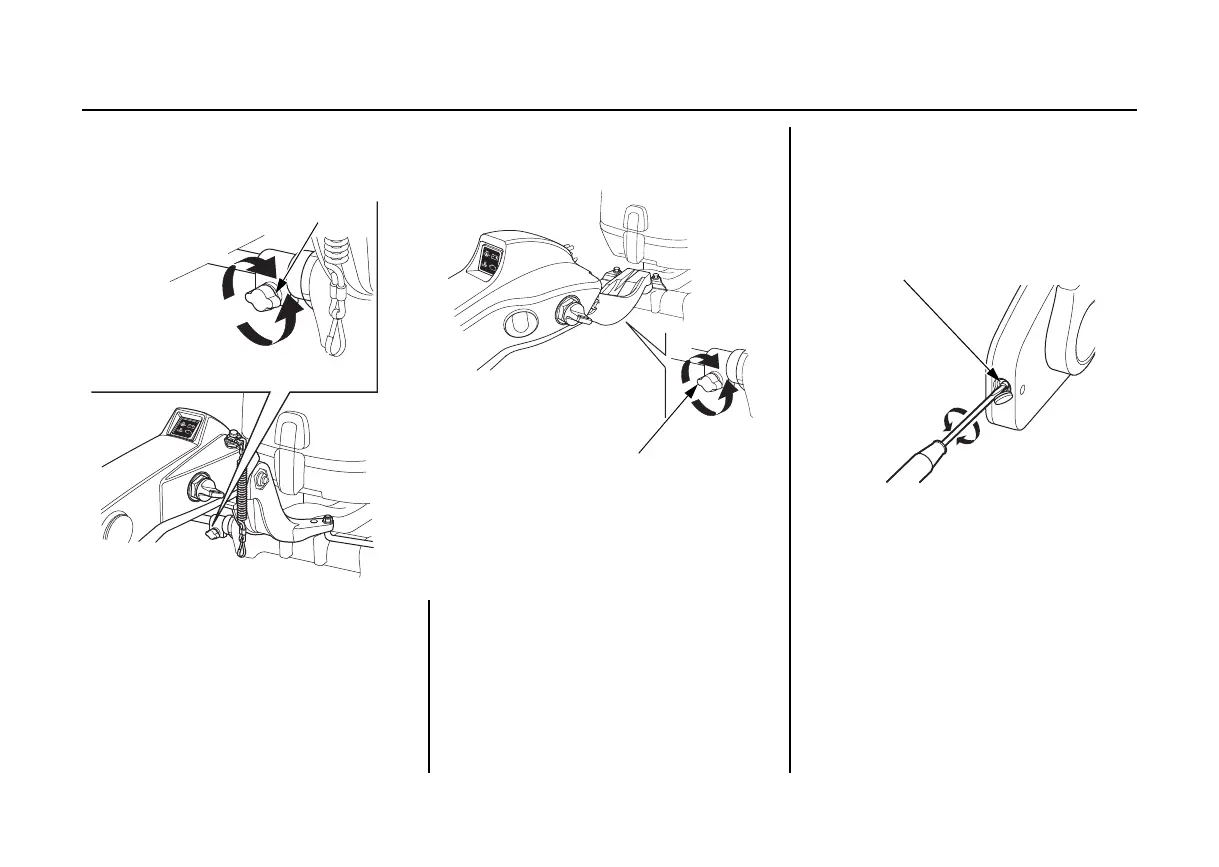

Check whether the handle moves
smoothly.
For smooth steering, adjust the
steering friction adjusting knob so
that a slight drag is felt when turning.
(H2 type)
Remote Control Lever Friction
(R type)
(R1 type)
Check whether the remote control
lever moves smoothly.
Friction of the control lever can be
adjusted by turning the control lever
friction adjuster right or left.
STEERING FRICTION
ADJUSTING KNOB
To decre a s e
friction
To increase
friction
STEERING FRICTION
ADJUSTING KNOB
To decre ase
friction
To in cr ea s e
friction
CONTROL LEVER
FRICTION ADJUSTER
To decrea s e
friction
To increa s e
friction
