TOHATSU MX 50D2 - Names of Parts

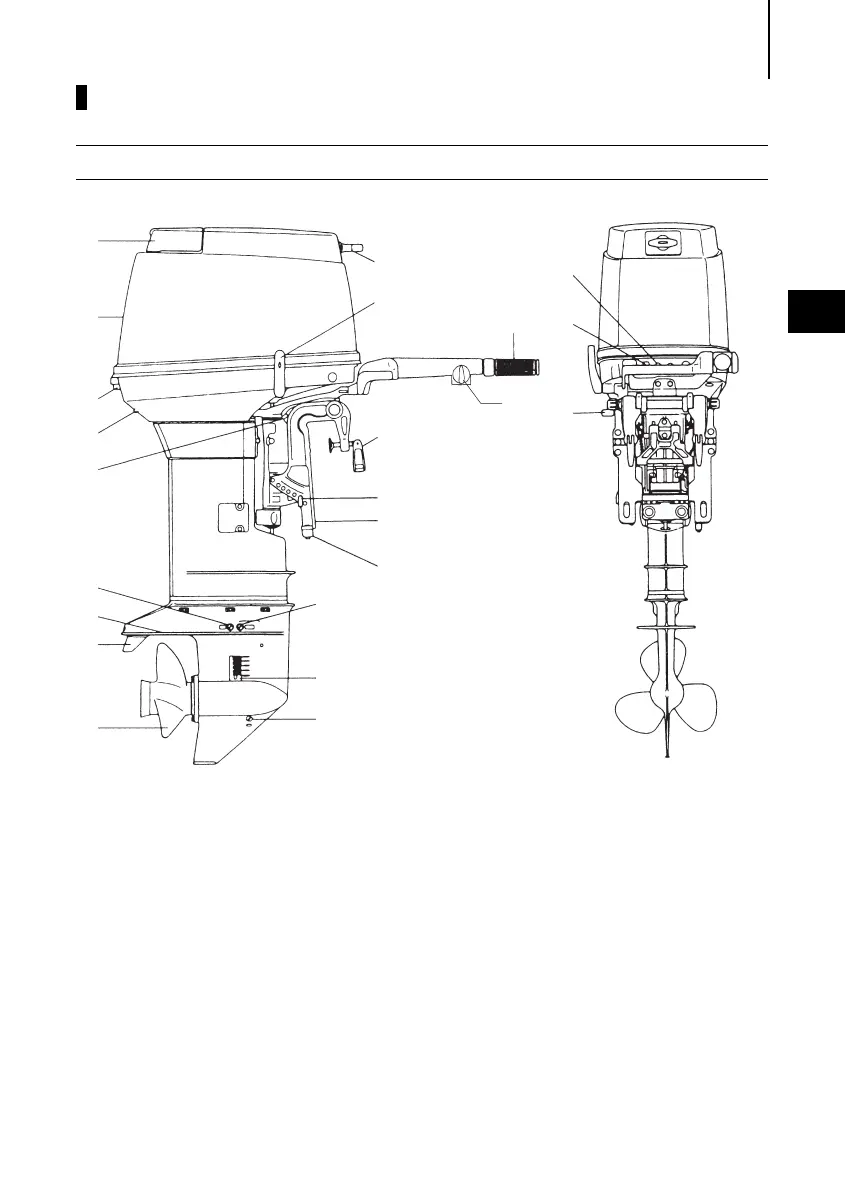

NAMES OF PARTS 11
2
1 Tilt Handle
2 Top C ow l
3 Hook Lever
4 Water Check Port
5 Reverse Lock Lever
6 Water Plug
7 Anti-ventilation Plate
8 Trim Tab
9 Propeller
10 Oil Plug (lower)
11 Water Strainer
12 Oil Plug (upper)
13 Clamp Bracket
14 Thrust Rod
15 Clamp Screw
16 Throttle Grip
17 Adjust Nut
18 Shift Lever
19 Starter Handle
20 Stop Switch
21 Choke Knob
22 Anode
