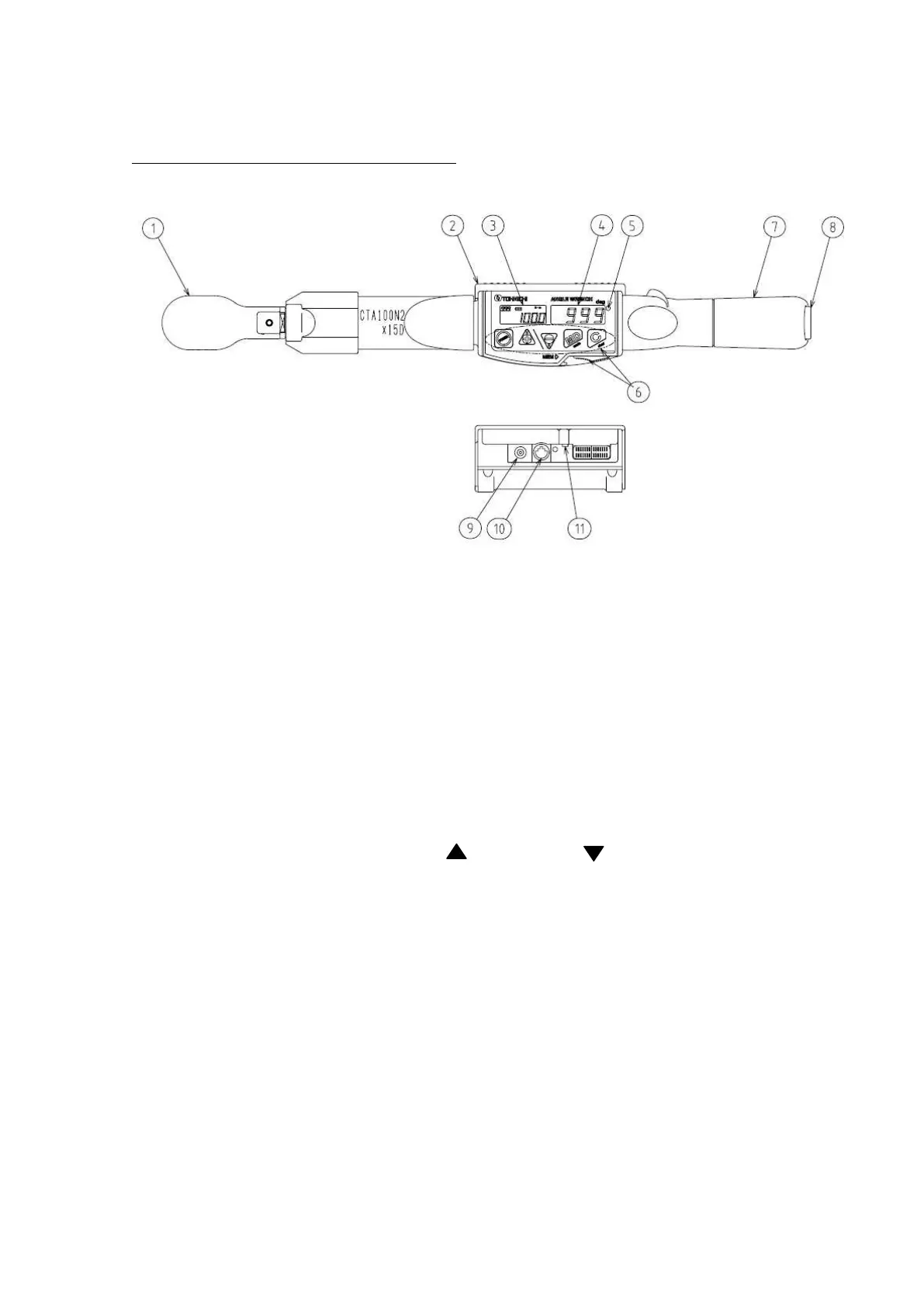

5. Name and explanation of each part
1. Interchangeable head: QH is packaged as standard accessory. Other TOHNICHI
interchangeable heads are also applicable
(SH, SH-N, RH, QH, RQH, DH, HH, FH).
* PH head cannot be used.
2. Protection cover: it is to protect from physical damage to CTA2-G against work
applications.
3. LCD display: To display memory counter, torque value, torque unit, remaining
battery indication.
4. 7-segment LED display: To display tightening angle.
5. Tightening completion / judgment LED: It turns blue for OK and red for NG.
6. Operation key: To operate power key, (forward) key, (backward) key, MD (mode) key,
C (clear) key, MEM (memory) key to make settings. (Refer to 7. How to use).
7. Handle: To set battery pack (BP-5) inside.
8. Cap: Remove this cap to exchange battery backs (rotate counter-clockwise to open)
9. Recharging jack: The output terminal to connect to Quick Charger BC-3.
10. External output terminal: The output terminal to connect USB cable.
11. Reset switch: Use this switch in case of display error and operation error. Not necessary to
push this switch each time after recharging (This is to be used when
changing setting values or RUN mode in the production tightening mode.
