Output image sample of production tightening mode
RST，001，08/12/31，12:59:59CRLF
RES，001，01，020.0CRLF
RES，001，02，021.0CRLF
RES，001，03，020.5CRLF
RES，001，04，020.4CRLF
RES，001，05，020.6CRLF
RA1，001，01，090CRLF
RA1，001，02，092CRLF
RA1，001，03，090CRLF
RA1，001，04，095CRLF
RA1，001，05，090CRLF
RA2，001，01，090CRLF
RA2，001，02，090CRLF
RA2，001，03，092CRLF
RA2，001，04，091CRLF
RA2，001，05，090CRLF
RET，001，01，065.0CRLF
RET，001，02，064.0CRLF
RET，001，03，063.0CRLF
RET，001，04，066.0CRLF
RET，001，05，065.0CRLF
Tightening starting
date and time
Torque tightening data
1st angle tightening
data
2nd angle tightening
data
Final torque data

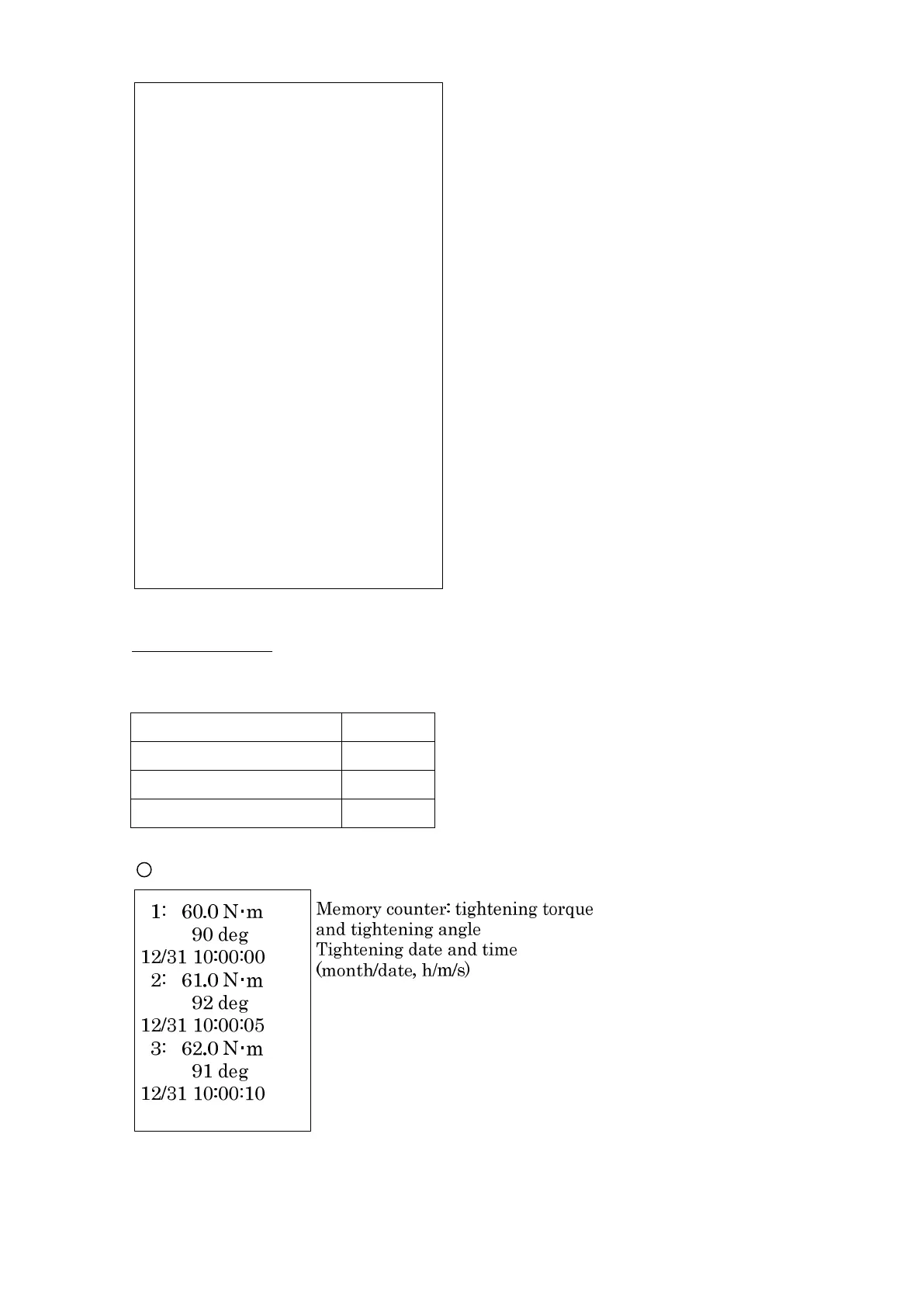

(3) Printer output
When connected to EPP16M3 Tohnichi printer, use the dedicated cable (No.575).
CTA2-G communication setting should be changed as follows:
External output format Prn
Baud rate 2400bps
Data length 7bit
Parity NONE
Single-spindle tightening mode
