DIGITAL TORQUE WRENCH TESTER DOTE4-G
DOTE20N4-G, 50N4-G, 100N4-G, 200N4-G
DOTE500N4-G, 1000N4-
G
• DC power jack, 12V-1A-Center positive: Connect the attached AC adapter BA-6.
• Power switch: Turns the power ON / OFF.
• RS232C terminal: Connect an RS232C communication cable.
• USB B-type connector for serial communication: Connect a USB communication cable.
• Do not connect RS232C and USB output connectors externally at the same time.

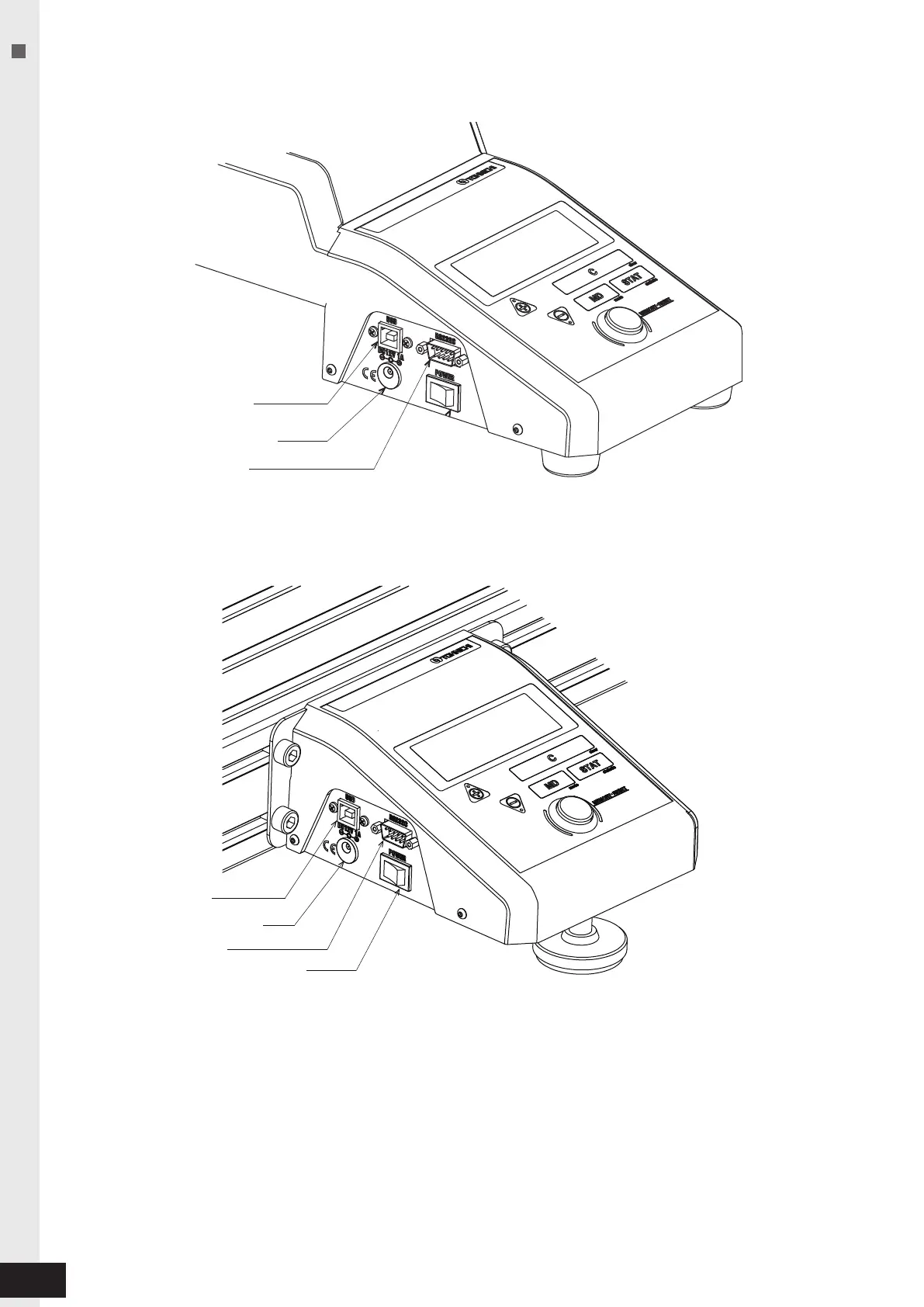

4-2. Power Source and Output
USB Terminal B type
AC Jack
RS232C (D-SUB 9 Pin male)
Power switch
USB Terminal B type
AC Jack
RS232C (D-SUB 9 Pin male)
To Next Page
