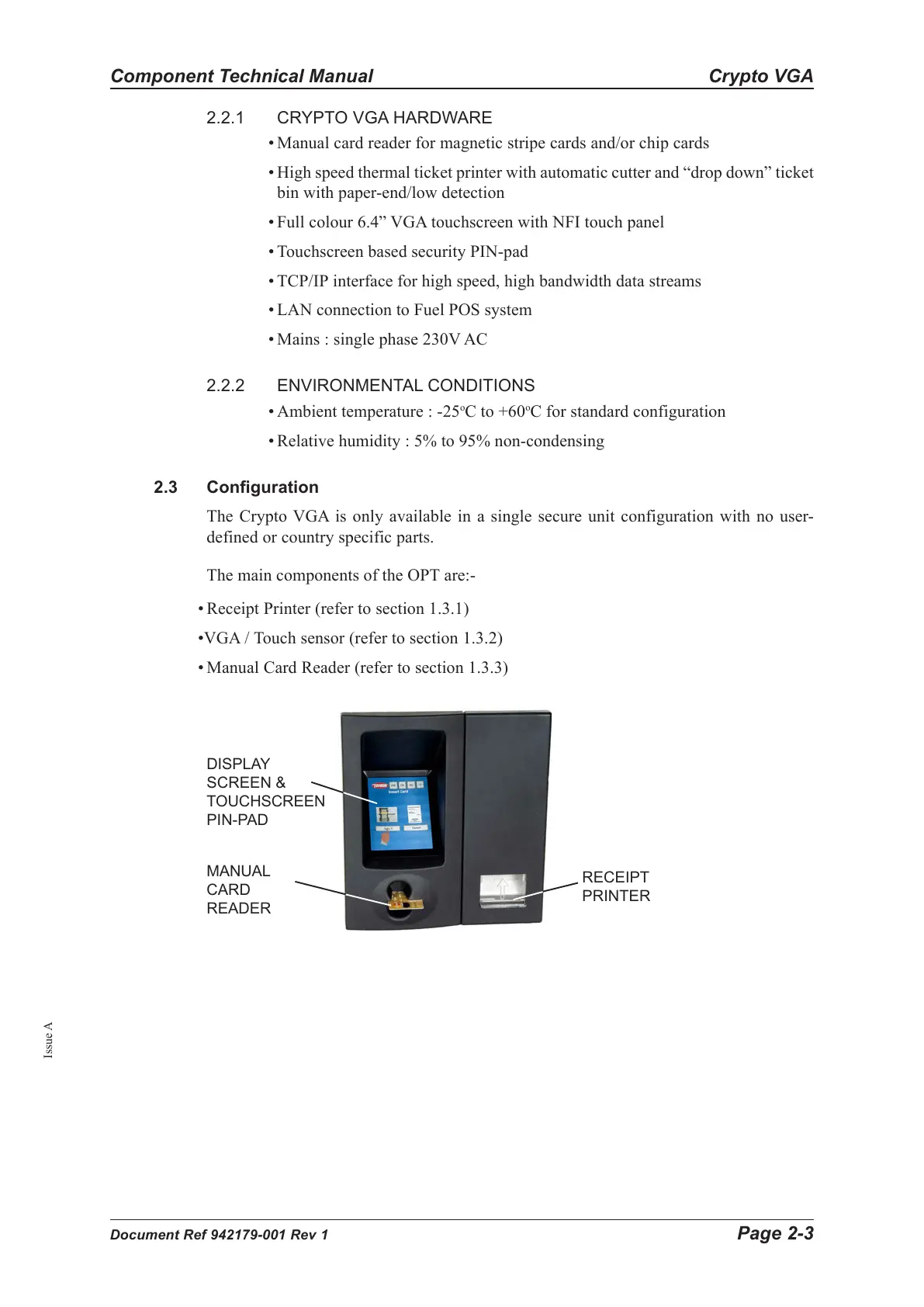

Tokheim Crypto VGA User Manual

Component Technical Manual Crypto VGA
Document Ref 942179-001 Rev 1 Page 2-3
Issue A
2.2.1 CRYPTO VGA HARDWARE
• Manual card reader for magnetic stripe cards and/or chip cards
• High speed thermal ticket printer with automatic cutter and “drop down” ticket
bin with paper-end/low detection
• Full colour 6.4” VGA touchscreen with NFI touch panel
• Touchscreen based security PIN-pad
• TCP/IP interface for high speed, high bandwidth data streams
• LAN connection to Fuel POS system
• Mains : single phase 230V AC
2.2.2 ENVIRONMENTAL CONDITIONS
• Ambient temperature : -25
o
C to +60
o
C for standard configuration
• Relative humidity : 5% to 95% non-condensing
2.3 Configuration
The Crypto VGA is only available in a single secure unit configuration with no user-
defined or country specific parts.
The main components of the OPT are:-
• Receipt Printer (refer to section 1.3.1)
•VGA / Touch sensor (refer to section 1.3.2)
• Manual Card Reader (refer to section 1.3.3)
DISPLAY
SCREEN &
TOUCHSCREEN
PIN-PAD
MANUAL
CARD
READER
RECEIPT
PRINTER

Tokheim Crypto VGA Specifications

General

Brand	Tokheim
Model	Crypto VGA
Category	Payment Terminal
Language	English
