Page 3-6 Document Ref 942179-001 Rev 1
Crypto VGA Component Technical Manual
Issue A

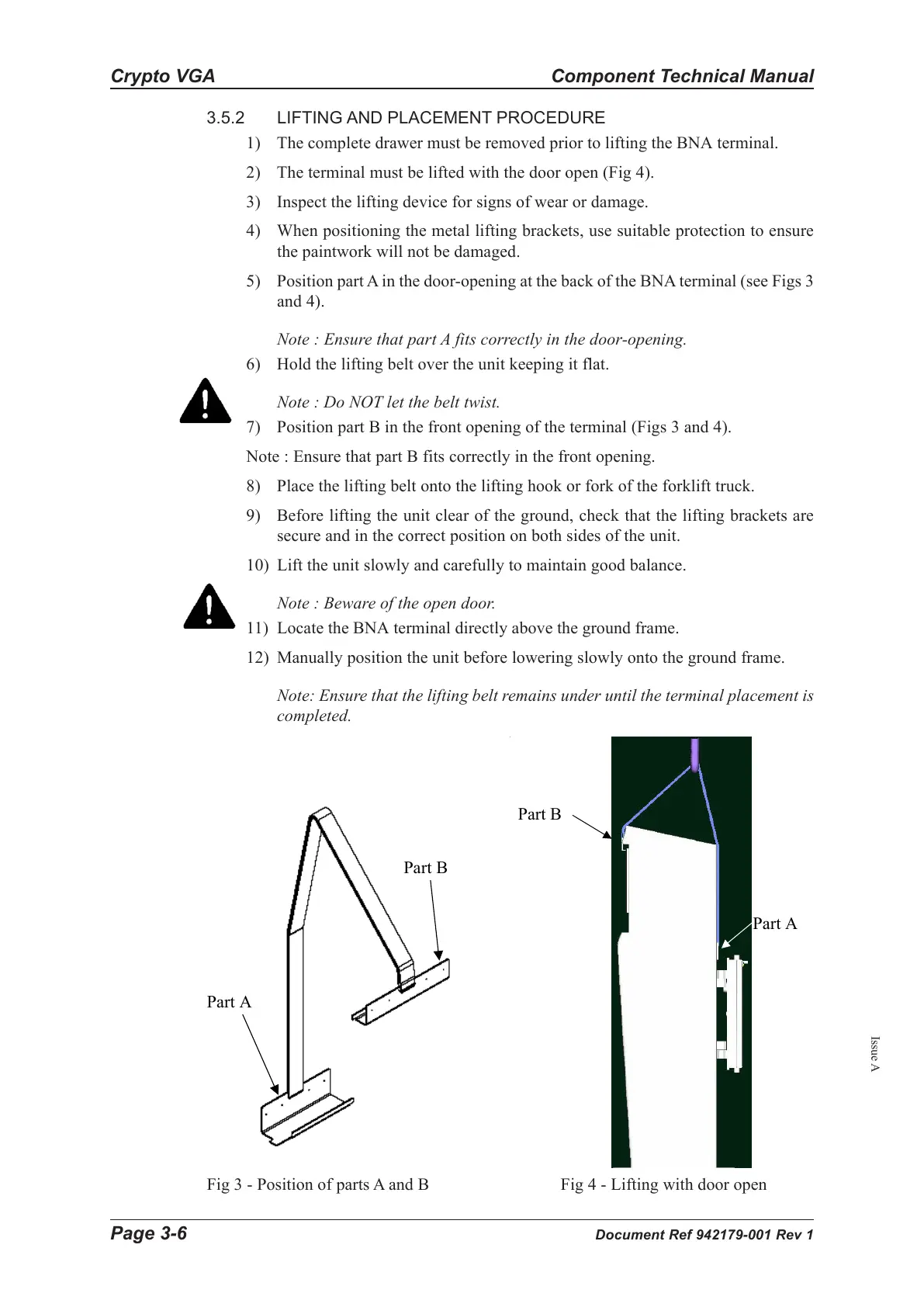

Fig 3 - Position of parts A and B Fig 4 - Lifting with door open
3.5.2 LIFTING AND PLACEMENT PROCEDURE
1) The complete drawer must be removed prior to lifting the BNA terminal.
2) The terminal must be lifted with the door open (Fig 4).
3) Inspect the lifting device for signs of wear or damage.
4) When positioning the metal lifting brackets, use suitable protection to ensure
the paintwork will not be damaged.
5) Position part A in the door-opening at the back of the BNA terminal (see Figs 3
and 4).
Note : Ensure that part A fits correctly in the door-opening.
6) Hold the lifting belt over the unit keeping it flat.
Note : Do NOT let the belt twist.
7) Position part B in the front opening of the terminal (Figs 3 and 4).
Note : Ensure that part B fits correctly in the front opening.
8) Place the lifting belt onto the lifting hook or fork of the forklift truck.
9) Before lifting the unit clear of the ground, check that the lifting brackets are
secure and in the correct position on both sides of the unit.
10) Lift the unit slowly and carefully to maintain good balance.
Note : Beware of the open door.
11) Locate the BNA terminal directly above the ground frame.
12) Manually position the unit before lowering slowly onto the ground frame.
Note: Ensure that the lifting belt remains under until the terminal placement is
completed.
Part A
Part B
P
r
A
P
r
B
