Document Ref 94219-001 Rev 1 Page 5-17
Component Technical Manual Crypto VGA
Issue A

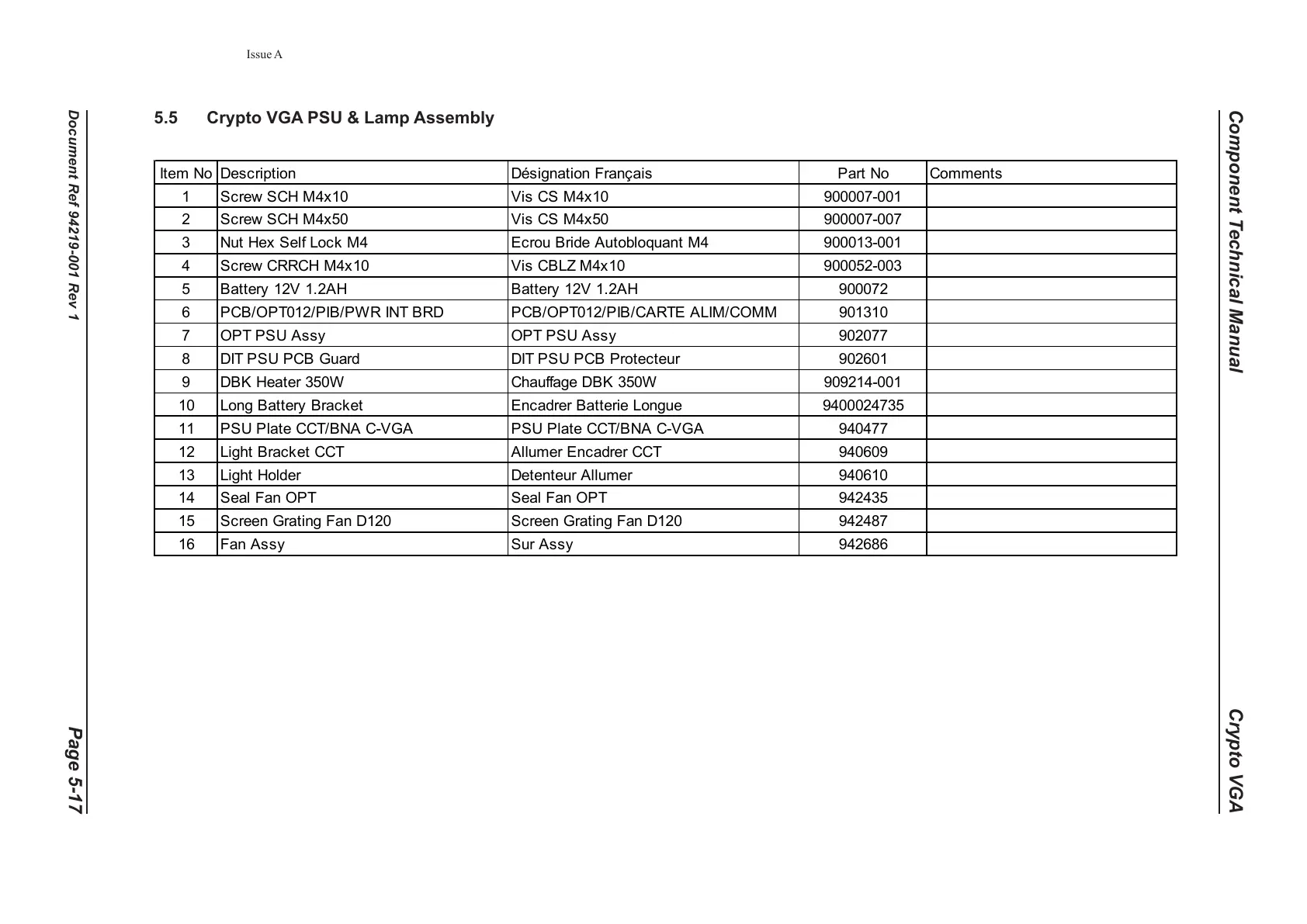

5.5 Crypto VGA PSU & Lamp Assembly
Item No Description Désignation Français Part No Comments
1 Screw SCH M4x10 Vis CS M4x10 900007-001
2 Screw SCH M4x50 Vis CS M4x50 900007-007
3 Nut Hex Self Lock M4 Ecrou Bride Autobloquant M4 900013-001
4 Screw CRRCH M4x10 Vis CBLZ M4x10 900052-003
5 Battery 12V 1.2AH Battery 12V 1.2AH 900072
6 PCB/OPT012/PIB/PWR INT BRD PCB/OPT012/PIB/CARTE ALIM/COMM 901310
7 OPT PSU Assy OPT PSU Assy 902077
8 DIT PSU PCB Guard DIT PSU PCB Protecteur 902601
9 DBK Heater 350W Chauffage DBK 350W 909214-001
10 Long Battery Bracket Encadrer Batterie Longue 9400024735
11 PSU Plate CCT/BNA C-VGA PSU Plate CCT/BNA C-VGA 940477
12 Light Bracket CCT Allumer Encadrer CCT 940609
13 Light Holder Detenteur Allumer 940610
14 Seal Fan OPT Seal Fan OPT 942435
15 Screen Grating Fan D120 Screen Grating Fan D120 942487
16 Fan Assy Sur Assy 942686
