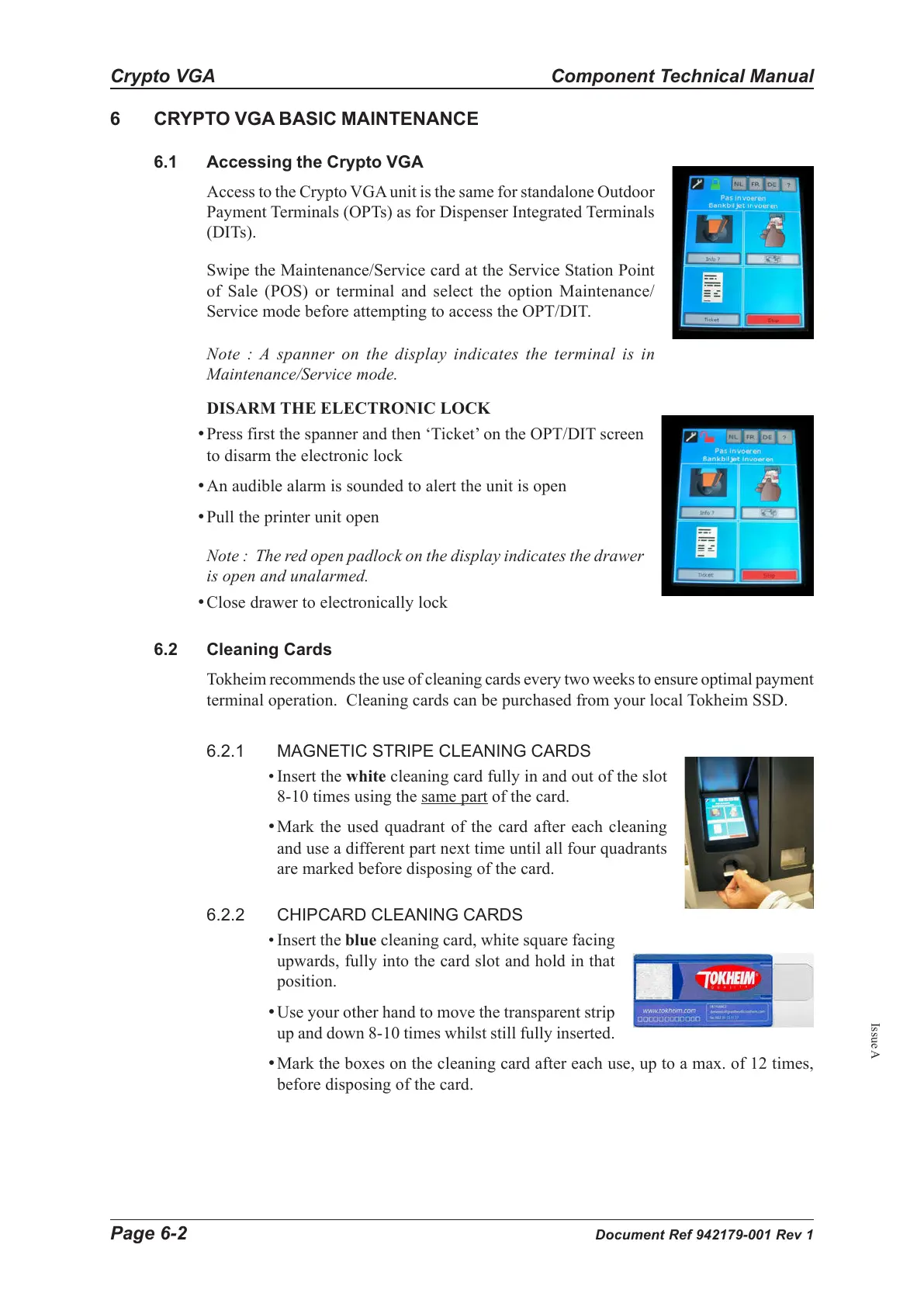

Page 6-2 Document Ref 942179-001 Rev 1
Crypto VGA Component Technical Manual
Issue A
6 CRYPTO VGA BASIC MAINTENANCE
6.1 Accessing the Crypto VGA
Access to the Crypto VGA unit is the same for standalone Outdoor
Payment Terminals (OPTs) as for Dispenser Integrated Terminals
(DITs).
Swipe the Maintenance/Service card at the Service Station Point
of Sale (POS) or terminal and select the option Maintenance/
Service mode before attempting to access the OPT/DIT.
Note : A spanner on the display indicates the terminal is in
Maintenance/Service mode.
DISARM THE ELECTRONIC LOCK
• Press first the spanner and then ‘Ticket’ on the OPT/DIT screen
to disarm the electronic lock
• An audible alarm is sounded to alert the unit is open
• Pull the printer unit open
Note : The red open padlock on the display indicates the drawer
is open and unalarmed.
• Close drawer to electronically lock
6.2 Cleaning Cards
Tokheim recommends the use of cleaning cards every two weeks to ensure optimal payment
terminal operation. Cleaning cards can be purchased from your local Tokheim SSD.
6.2.1 MAGNETIC STRIPE CLEANING CARDS
• Insert the white cleaning card fully in and out of the slot
8-10 times using the
same part of the card.
• Mark the used quadrant of the card after each cleaning
and use a different part next time until all four quadrants
are marked before disposing of the card.
6.2.2 CHIPCARD CLEANING CARDS
• Insert the blue cleaning card, white square facing
upwards, fully into the card slot and hold in that
position.
• Use your other hand to move the transparent strip
up and down 8-10 times whilst still fully inserted.
• Mark the boxes on the cleaning card after each use, up to a max. of 12 times,
before disposing of the card.
