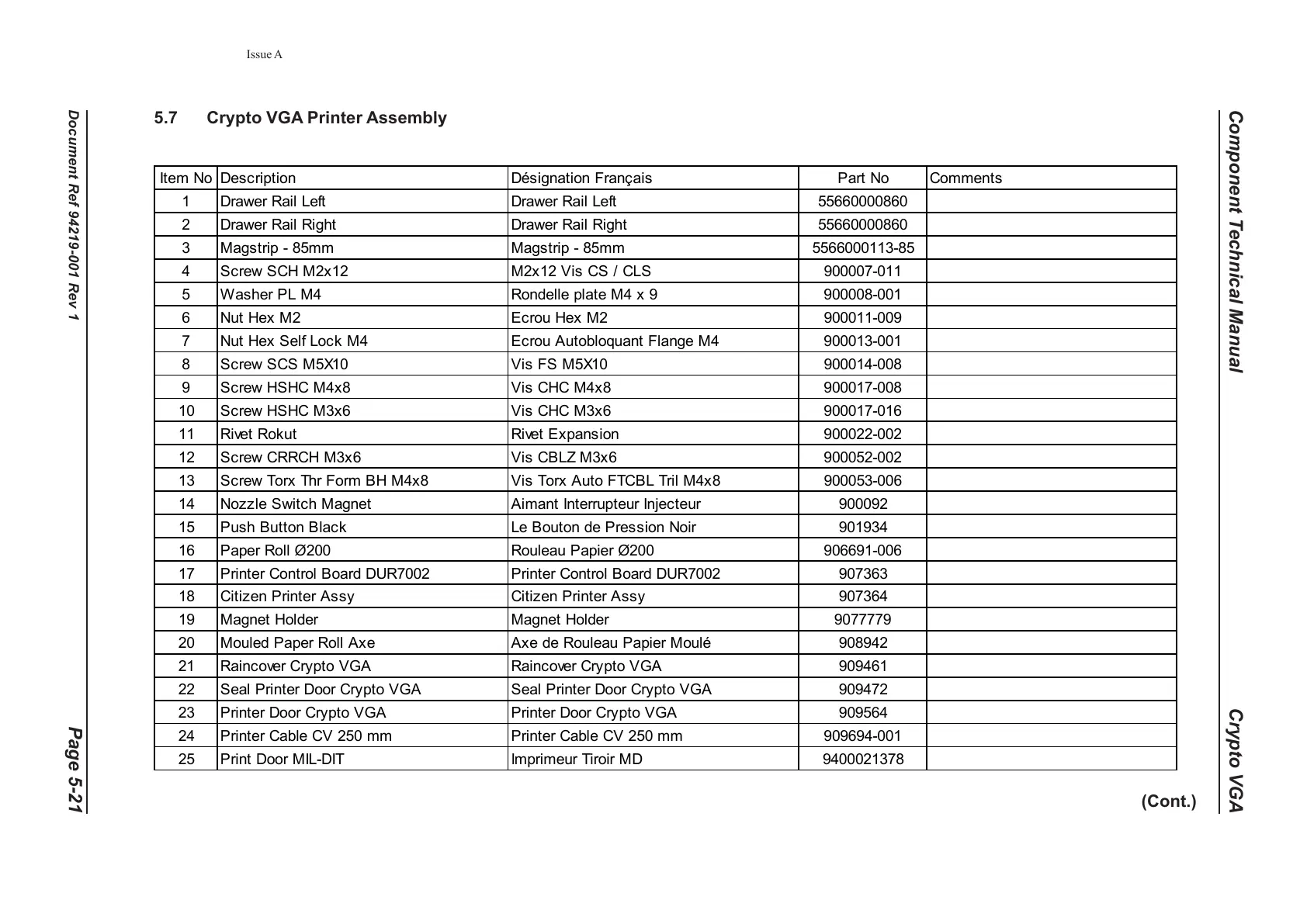

5.7 Crypto VGA Printer Assembly
Item No Description Désignation Français Part No Comments
1 Drawer Rail Left Drawer Rail Left 55660000860
2 Drawer Rail Right Drawer Rail Right 55660000860
3 Magstrip - 85mm Magstrip - 85mm 5566000113-85
4 Screw SCH M2x12 M2x12 Vis CS / CLS 900007-011
5 Washer PL M4 Rondelle plate M4 x 9 900008-001
6 Nut Hex M2 Ecrou Hex M2 900011-009
7 Nut Hex Self Lock M4 Ecrou Autobloquant Flange M4 900013-001
8 Screw SCS M5X10 Vis FS M5X10 900014-008
9 Screw HSHC M4x8 Vis CHC M4x8 900017-008
10 Screw HSHC M3x6 Vis CHC M3x6 900017-016
11 Rivet Rokut Rivet Expansion 900022-002
12 Screw CRRCH M3x6 Vis CBLZ M3x6 900052-002
13 Screw Torx Thr Form BH M4x8 Vis Torx Auto FTCBL Tril M4x8 900053-006
14 Nozzle Switch Magnet Aimant Interrupteur Injecteur 900092
15 Push Button Black Le Bouton de Pression Noir 901934
16 Paper Roll Ø200 Rouleau Papier Ø200 906691-006
17 Printer Control Board DUR7002 Printer Control Board DUR7002 907363
18 Citizen Printer Assy Citizen Printer Assy 907364
19 Magnet Holder Magnet Holder 9077779
20 Mouled Paper Roll Axe Axe de Rouleau Papier Moulé 908942
21 Raincover Crypto VGA Raincover Crypto VGA 909461
22 Seal Printer Door Crypto VGA Seal Printer Door Crypto VGA 909472
23 Printer Door Crypto VGA Printer Door Crypto VGA 909564
24 Printer Cable CV 250 mm Printer Cable CV 250 mm 909694-001
25 Print Door MIL-DIT Imprimeur Tiroir MD 9400021378
(Cont.)
