Document Ref 94219-001 Rev 1 Page 5-3
Component Technical Manual Crypto VGA
Issue A

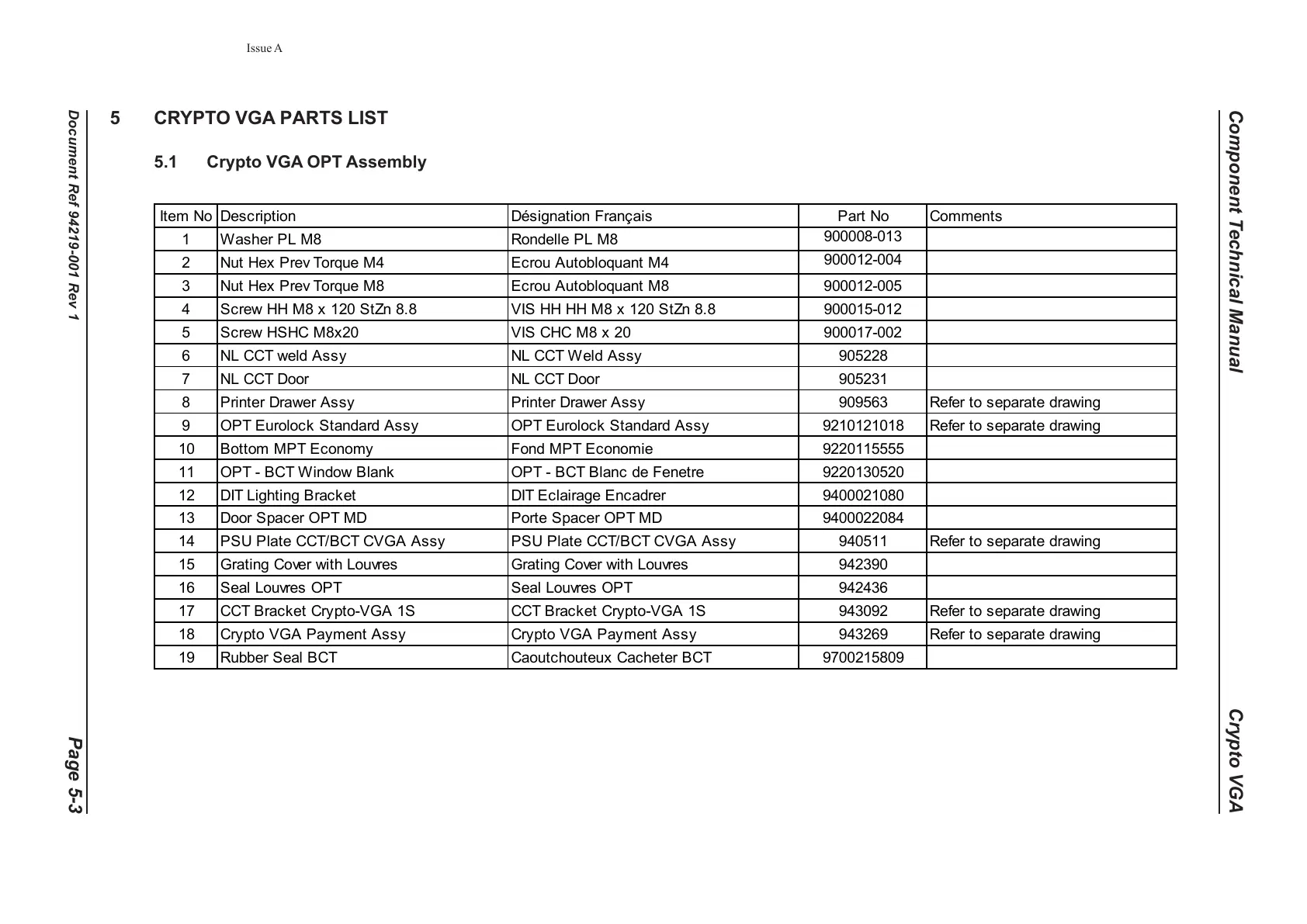

5 CRYPTO VGA PARTS LIST
5.1 Crypto VGA OPT Assembly
Item No Description Désignation Français Part No Comments
1 Washer PL M8 Rondelle PL M8
900008-013
2 Nut Hex Prev Torque M4 Ecrou Autobloquant M4
900012-004
3 Nut Hex Prev Torque M8 Ecrou Autobloquant M8 900012-005
4 Screw HH M8 x 120 StZn 8.8 VIS HH HH M8 x 120 StZn 8.8 900015-012
5 Screw HSHC M8x20 VIS CHC M8 x 20 900017-002
6 NL CCT weld Assy NL CCT Weld Assy 905228
7 NL CCT Door NL CCT Door 905231
8 Printer Drawer Assy Printer Drawer Assy 909563 Refer to separate drawing
9 OPT Eurolock Standard Assy OPT Eurolock Standard Assy 9210121018 Refer to separate drawing
10 Bottom MPT Economy Fond MPT Economie 9220115555
11 OPT - BCT Window Blank OPT - BCT Blanc de Fenetre 9220130520
12 DIT Lighting Bracket DIT Eclairage Encadrer 9400021080
13 Door Spacer OPT MD Porte Spacer OPT MD 9400022084
14 PSU Plate CCT/BCT CVGA Assy PSU Plate CCT/BCT CVGA Assy 940511 Refer to separate drawing
15 Grating Cover with Louvres Grating Cover with Louvres 942390
16 Seal Louvres OPT Seal Louvres OPT 942436
17 CCT Bracket Crypto-VGA 1S CCT Bracket Crypto-VGA 1S 943092 Refer to separate drawing
18 Crypto VGA Payment Assy Crypto VGA Payment Assy 943269 Refer to separate drawing
19 Rubber Seal BCT Caoutchouteux Cacheter BCT 9700215809
To Next Page
