Document Ref 94219-001 Rev 1 Page 5-5
Component Technical Manual Crypto VGA

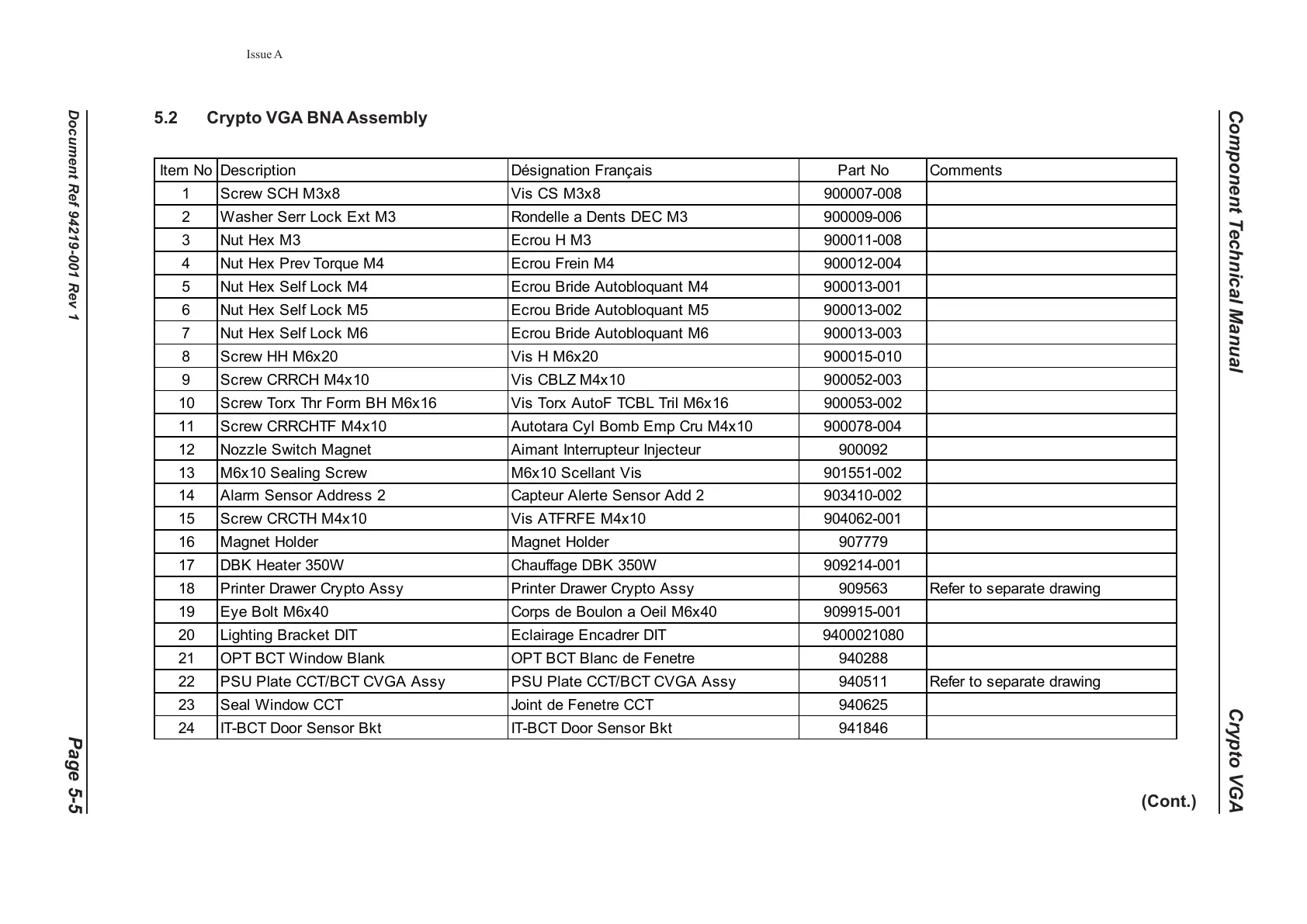

5.2 Crypto VGA BNA Assembly
Item No Description Désignation Français Part No Comments
1 Screw SCH M3x8 Vis CS M3x8 900007-008
2 Washer Serr Lock Ext M3 Rondelle a Dents DEC M3 900009-006
3 Nut Hex M3 Ecrou H M3 900011-008
4 Nut Hex Prev Torque M4 Ecrou Frein M4 900012-004
5 Nut Hex Self Lock M4 Ecrou Bride Autobloquant M4 900013-001
6 Nut Hex Self Lock M5 Ecrou Bride Autobloquant M5 900013-002
7 Nut Hex Self Lock M6 Ecrou Bride Autobloquant M6 900013-003
8 Screw HH M6x20 Vis H M6x20 900015-010
9 Screw CRRCH M4x10 Vis CBLZ M4x10 900052-003
10 Screw Torx Thr Form BH M6x16 Vis Torx AutoF TCBL Tril M6x16 900053-002
11 Screw CRRCHTF M4x10 Autotara Cyl Bomb Emp Cru M4x10 900078-004
12 Nozzle Switch Magnet Aimant Interrupteur Injecteur 900092
13 M6x10 Sealing Screw M6x10 Scellant Vis 901551-002
14 Alarm Sensor Address 2 Capteur Alerte Sensor Add 2 903410-002
15 Screw CRCTH M4x10 Vis ATFRFE M4x10 904062-001
16 Magnet Holder Magnet Holder 907779
17 DBK Heater 350W Chauffage DBK 350W 909214-001
18 Printer Drawer Crypto Assy Printer Drawer Crypto Assy 909563 Refer to separate drawing
19 Eye Bolt M6x40 Corps de Boulon a Oeil M6x40 909915-001
20 Lighting Bracket DIT Eclairage Encadrer DIT 9400021080
21 OPT BCT Window Blank OPT BCT Blanc de Fenetre 940288
22 PSU Plate CCT/BCT CVGA Assy PSU Plate CCT/BCT CVGA Assy 940511 Refer to separate drawing
23 Seal Window CCT Joint de Fenetre CCT 940625
24 IT-BCT Door Sensor Bkt IT-BCT Door Sensor Bkt 941846
Issue A
(Cont.)
To Next Page
