Document Ref 94219-001 Rev 1 Page 5-7

Component Technical Manual Crypto VGA

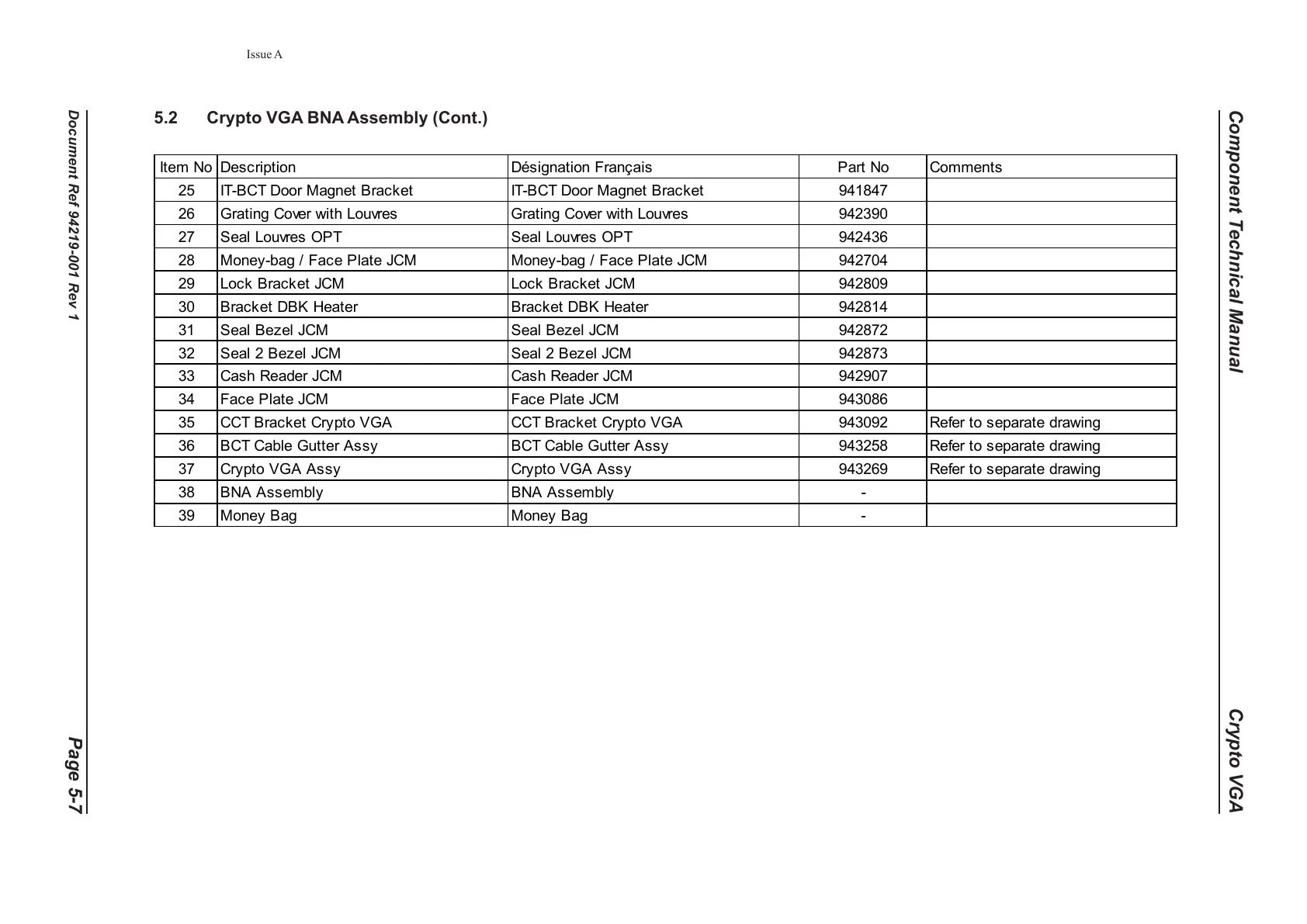

5.2 Crypto VGA BNA Assembly (Cont.)

Issue A

Item No Description Désignation Français Part No Comments

25 IT-BCT Door Magnet Bracket IT-BCT Door Magnet Bracket 941847

26 Grating Cover with Louvres Grating Cover with Louvres 942390

27 Seal Louvres OPT Seal Louvres OPT 942436

28 Money-bag / Face Plate JCM Money-bag / Face Plate JCM 942704

29 Lock Bracket JCM Lock Bracket JCM 942809

30 Bracket DBK Heater Bracket DBK Heater 942814

31 Seal Bezel JCM Seal Bezel JCM 942872

32 Seal 2 Bezel JCM Seal 2 Bezel JCM 942873

33 Cash Reader JCM Cash Reader JCM 942907

34 Face Plate JCM Face Plate JCM 943086

35 CCT Bracket Crypto VGA CCT Bracket Crypto VGA 943092 Refer to separate drawing

36 BCT Cable Gutter Assy BCT Cable Gutter Assy 943258 Refer to separate drawing

37 Crypto VGA Assy Crypto VGA Assy 943269 Refer to separate drawing

38 BNA Assembly BNA Assembly -

39 Money Bag Money Bag -
