Document Ref 94219-001 Rev 1 Page 5-13
Component Technical Manual Crypto VGA

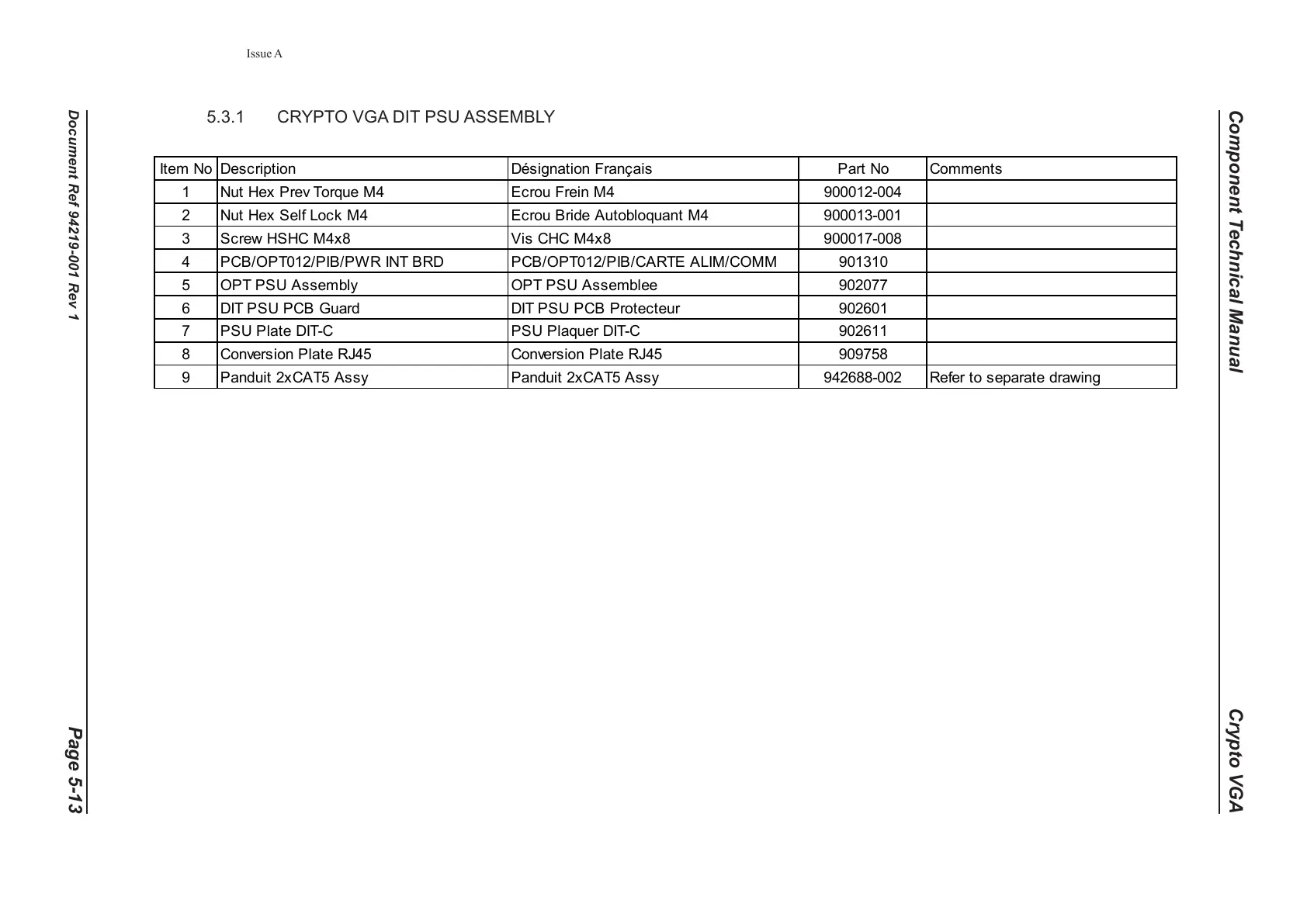

5.3.1 CRYPTO VGA DIT PSU ASSEMBLY
Item No Description Désignation Français Part No Comments
1 Nut Hex Prev Torque M4 Ecrou Frein M4 900012-004
2 Nut Hex Self Lock M4 Ecrou Bride Autobloquant M4 900013-001
3 Screw HSHC M4x8 Vis CHC M4x8 900017-008
4 PCB/OPT012/PIB/PWR INT BRD PCB/OPT012/PIB/CARTE ALIM/COMM 901310
5 OPT PSU Assembly OPT PSU Assemblee 902077
6 DIT PSU PCB Guard DIT PSU PCB Protecteur 902601
7 PSU Plate DIT-C PSU Plaquer DIT-C 902611
8 Conversion Plate RJ45 Conversion Plate RJ45 909758
9 Panduit 2xCAT5 Assy Panduit 2xCAT5 Assy 942688-002 Refer to separate drawing
Issue A
