Document Ref 94219-001 Rev 1 Page 5-27
Component Technical Manual Crypto VGA
Issue A

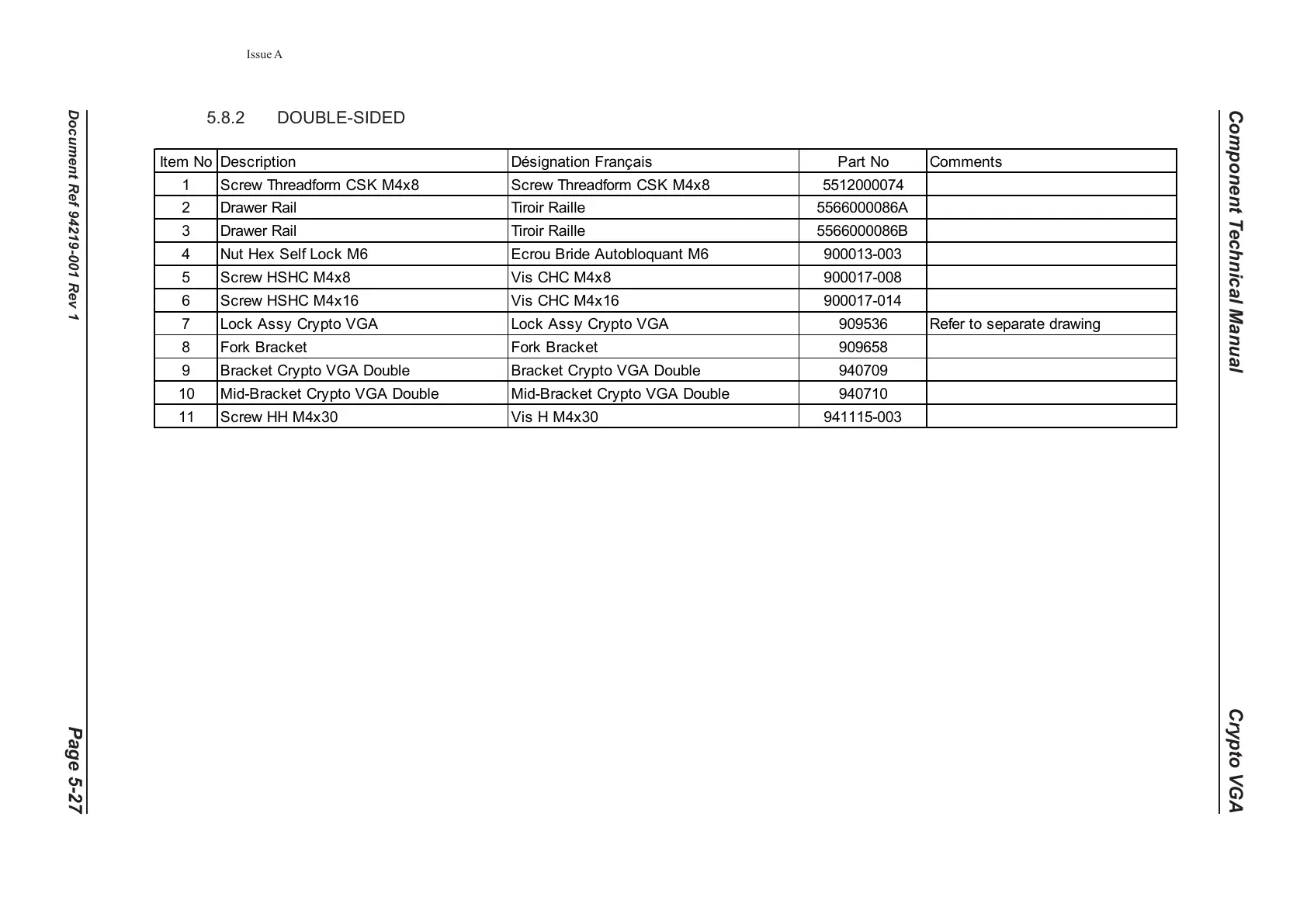

5.8.2 DOUBLE-SIDED
Item No Description Désignation Français Part No Comments
1 Screw Threadform CSK M4x8 Screw Threadform CSK M4x8 5512000074
2 Drawer Rail Tiroir Raille 5566000086A
3 Drawer Rail Tiroir Raille 5566000086B
4 Nut Hex Self Lock M6 Ecrou Bride Autobloquant M6 900013-003
5 Screw HSHC M4x8 Vis CHC M4x8 900017-008
6 Screw HSHC M4x16 Vis CHC M4x16 900017-014
7 Lock Assy Crypto VGA Lock Assy Crypto VGA 909536 Refer to separate drawing
8 Fork Bracket Fork Bracket 909658
9 Bracket Crypto VGA Double Bracket Crypto VGA Double 940709
10 Mid-Bracket Crypto VGA Double Mid-Bracket Crypto VGA Double 940710
11 Screw HH M4x30 Vis H M4x30 941115-003
To Next Page
