22 Tone Commander 8610/8620 User Guide
Handset Retainer Clip
For desktop use, the handset retainer clip should be installed in the
default position, without the tab protruding into the hookswitch area.

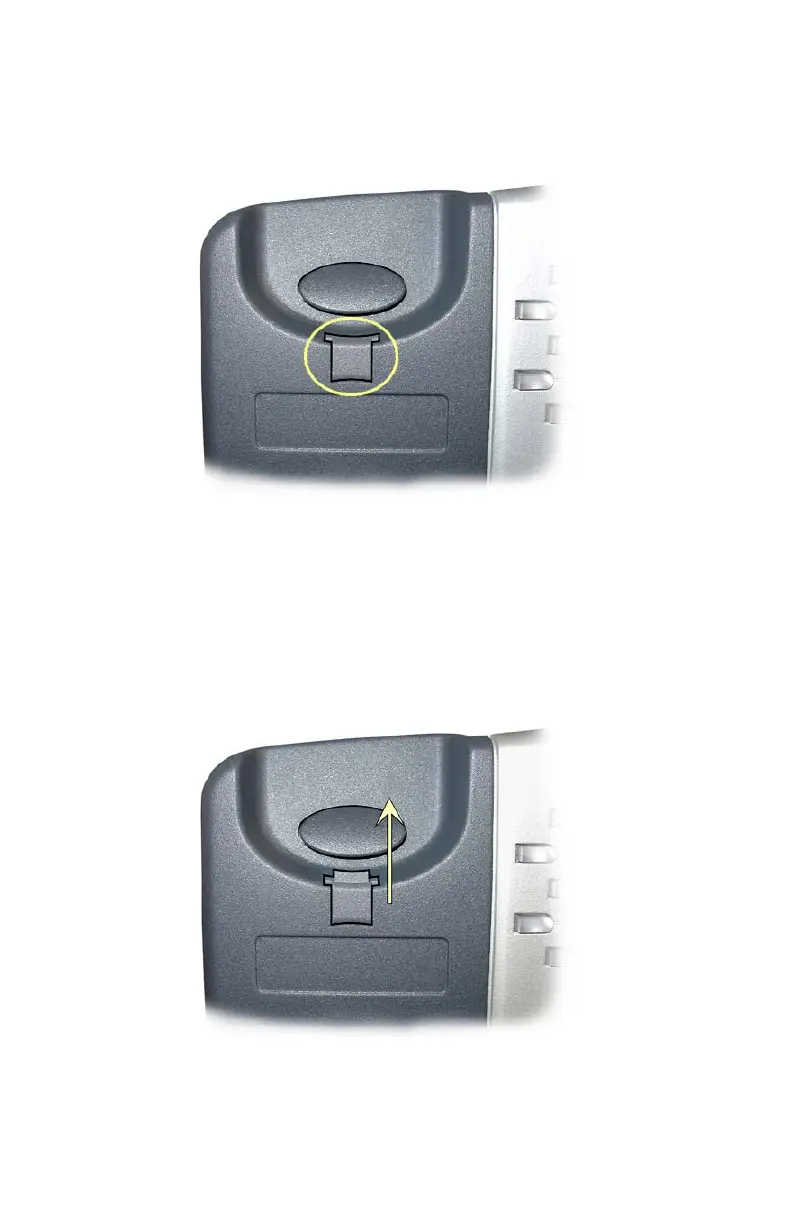

Install the handset retainer clip as shown below for wall mount use or
high desktop positions, where the handset may be inadvertently
bumped from the cradle. Pull out the clip as shown, rotate the clip 180°,
then re-insert the clip. The tab should protrude into the hookswitch
area.
