3.5 Steering calibrations
18
3.5. Steering calibrations
The console uses the satellite data it receives, through the receiver
attached to the top of the vehicle, to identify the precise coordinates of
the vehicle. Using this and other data, the system is able to calculate
the vehicle’s position and control the vehicle’s steering system.
For this to work properly the system needs to be calibrated for the
individual vehicle.
The steering calibrations must be carried out before the tuning process
is commenced. This should be done every time tuning is carried out,
regardless of the calibration state.
3.5.1. Accessing the calibration screen
X30 console
1. Select Steering Options Menu / Auto Steer Calibration
.

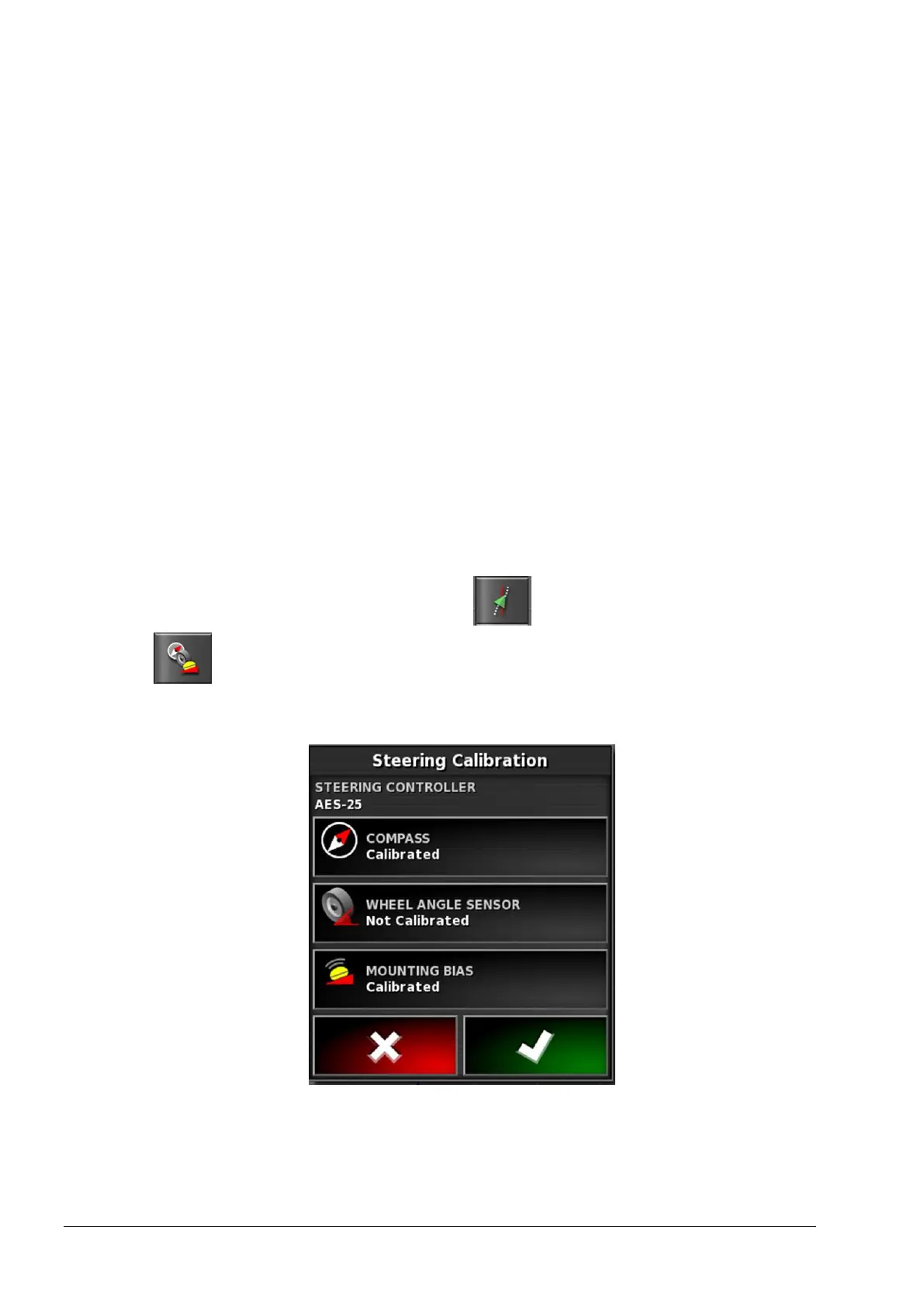

The Steering Calibration screen displays.
