Topcon BM-7AC - Part Names and Function

1. Before Use
10

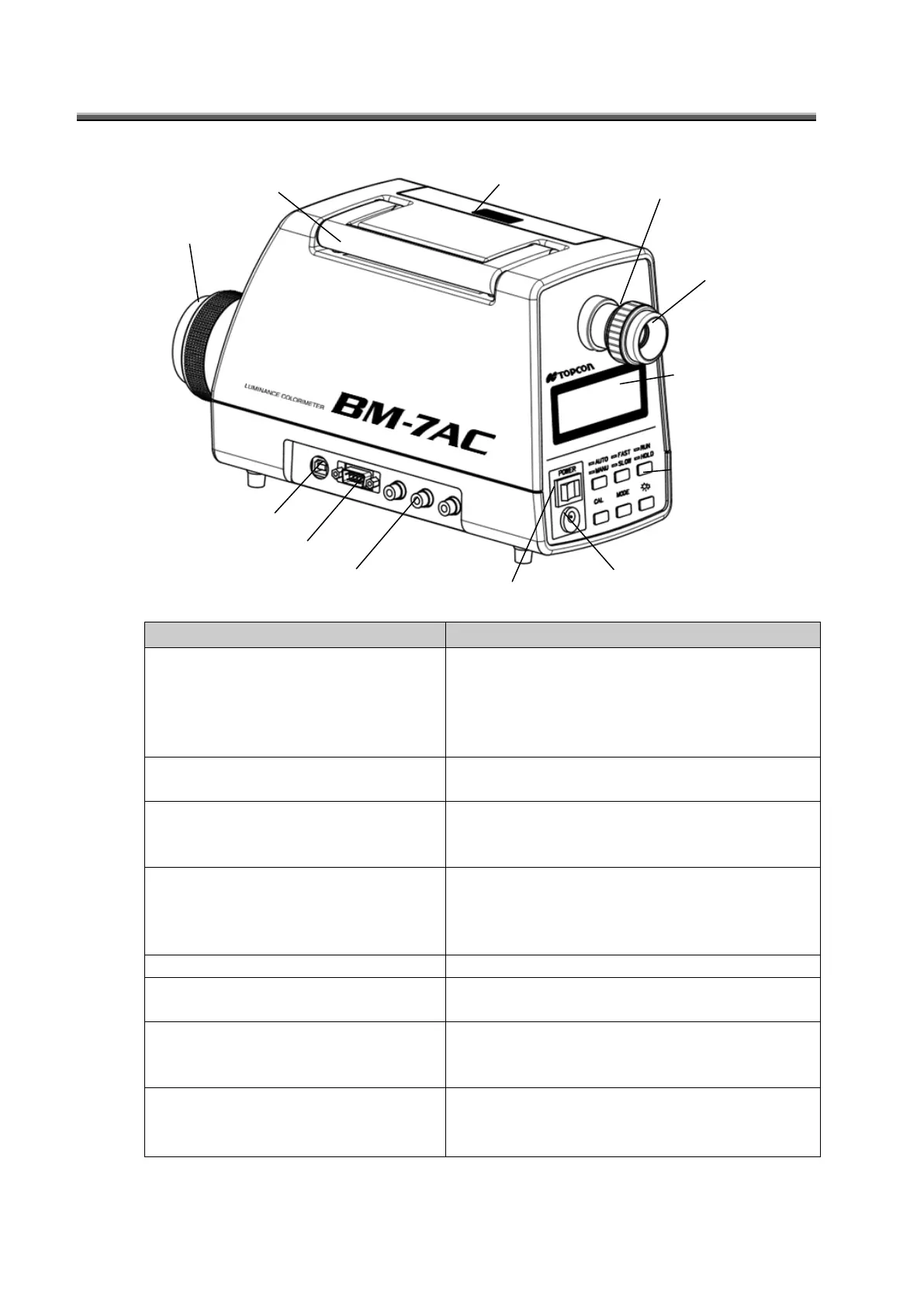

1.2 Part Names and Function
■Main Body
Name
Function
Inner switches/buttons
Buttons for performing various settings in the
function mode, and dip switches for performing
various settings for the remote mode, change in
object color etc.
☞
「■ Inner Switches/Buttons」
Diopter adjustment ring
Used when adjusting the focus of the finder on the
reticle mark.
LCD
LCD with backlight for displaying various kinds of
information such as measurement results and
measurement conditions.
Panel switches
Switches for starting/stopping measurement, and
switches for changing the response speed of the
photo-receiver circuits and display mode.
☞
「■ Panel Switches」
Power switch
Power switch to the instrument.
DC input connector
Connector for plugging in the output plug from AC
adapter.
USB connector
Connector for connecting a PC when performing
measurement in the remote mode.
PC connection
☞
「1.3.2 Connecting a PC」
RS-232C connector
Connector for connecting a PC when performing
measurement in the remote mode.
PC connection
☞
「1.3.2 Connecting a PC」
Eyepiece
Handle
Objective lens
RS-232C connector
LCD
Panel switches
USB connector
Diopter adjustment ring
Analog output connector (X, Y, Z)
* Analog output model only
Inner switches/buttons
Power switch
DC input connector
