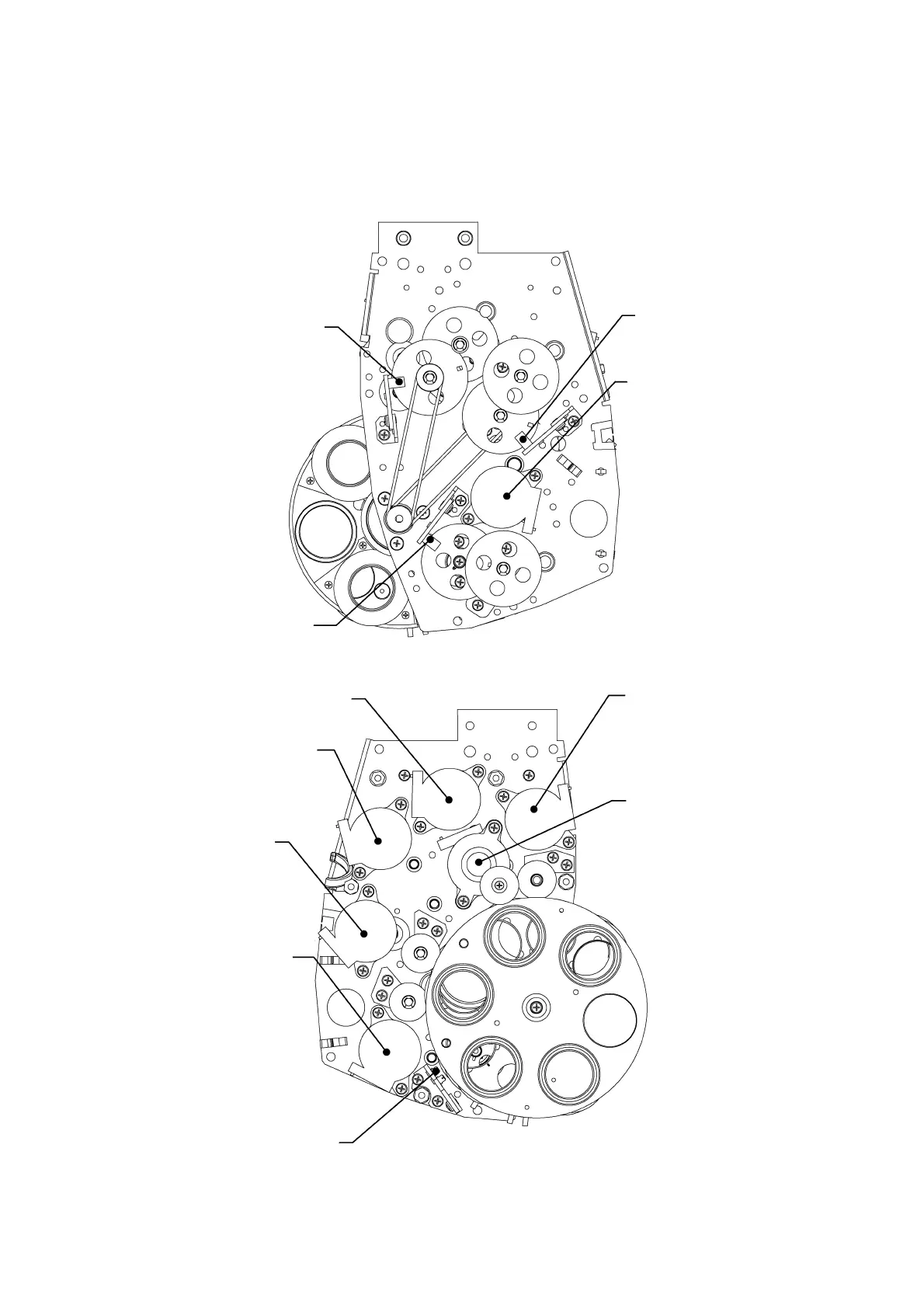

3-4-2 Names of motors in the cylindrical lens unit and their arrangement
[Cylindrical lens unit for left eye]
* Names of motors and their arrangement for right eye are symmetrical to left eye.
Cylindrical lens zero detection sensor
RPCC1 (RP1) motor
Auxiliary lens (AX) motor
RPCC2 (RP2) motor
Cylindrical axis (CA) motor
Cyli
ndrical motor No. 1 (C1)
Cylindrical motor No. 2 (C2)
RPCC1 zero detection sensor
Cylindrical axis zero detection sensor
RPCC2 zero detection sensor
RPCC (RP) motor
