− 43 −
3-6 Assembly and Adjustment Procedures

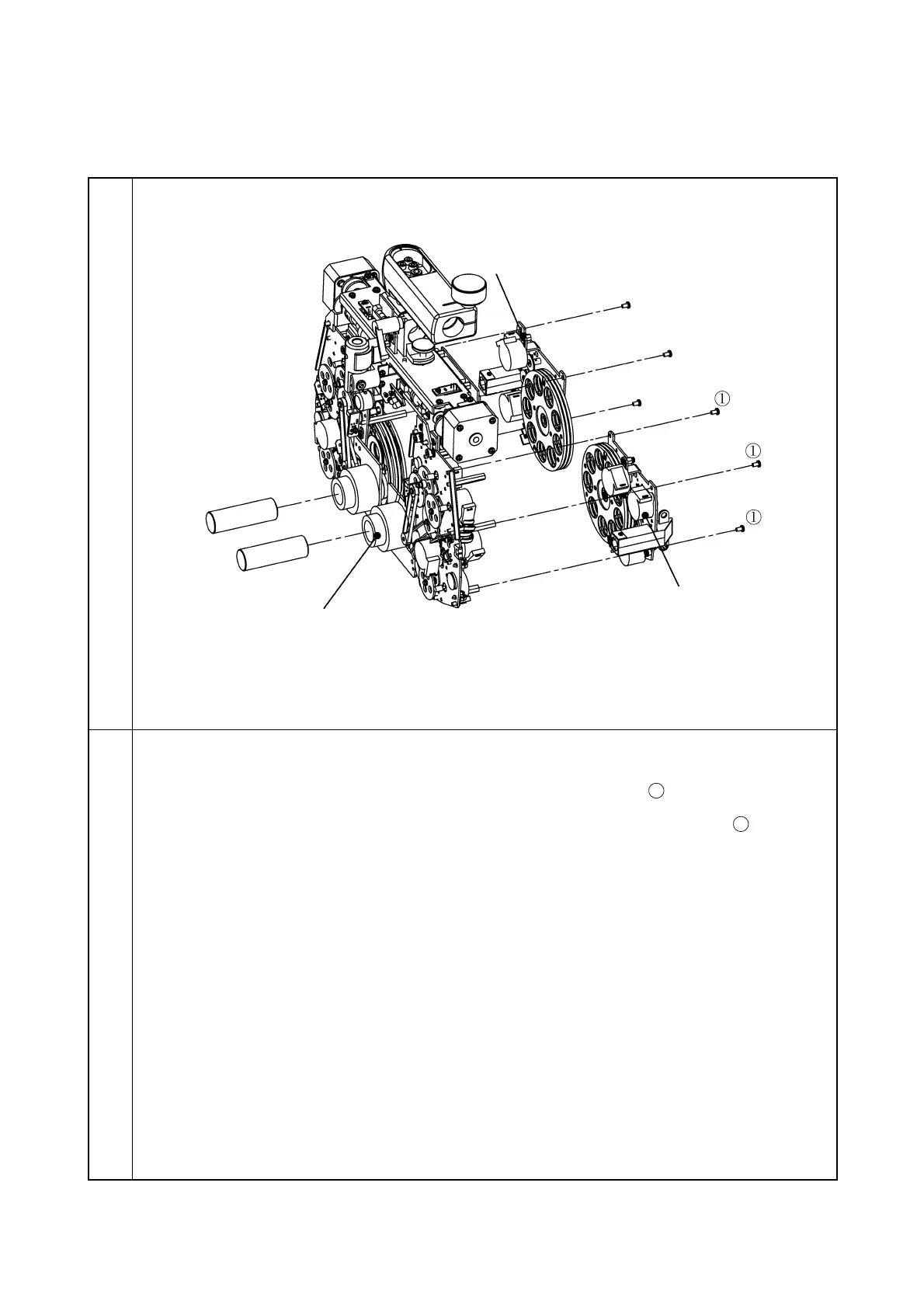

3-6-1 Installation of spherical unit
Illustration
Procedure
1. Install the lens zero positioning tool as aligning it with the dowel of the metal plate.
2. Set the spherical units temporarily with the screws CR3 × 5S3BZn3
.
3. Insert all the zero positioning tools. Tighten the three screws CR3 × 5S3BZn3
securely
where the zero positioning tools are inserted smoothly. (Make sure that the tools are inserted
smoothly.)
Lens zero positioning tool
To Next Page
