− 40 −
Take the same procedure for R side.
YES
NO
YES
NO
9

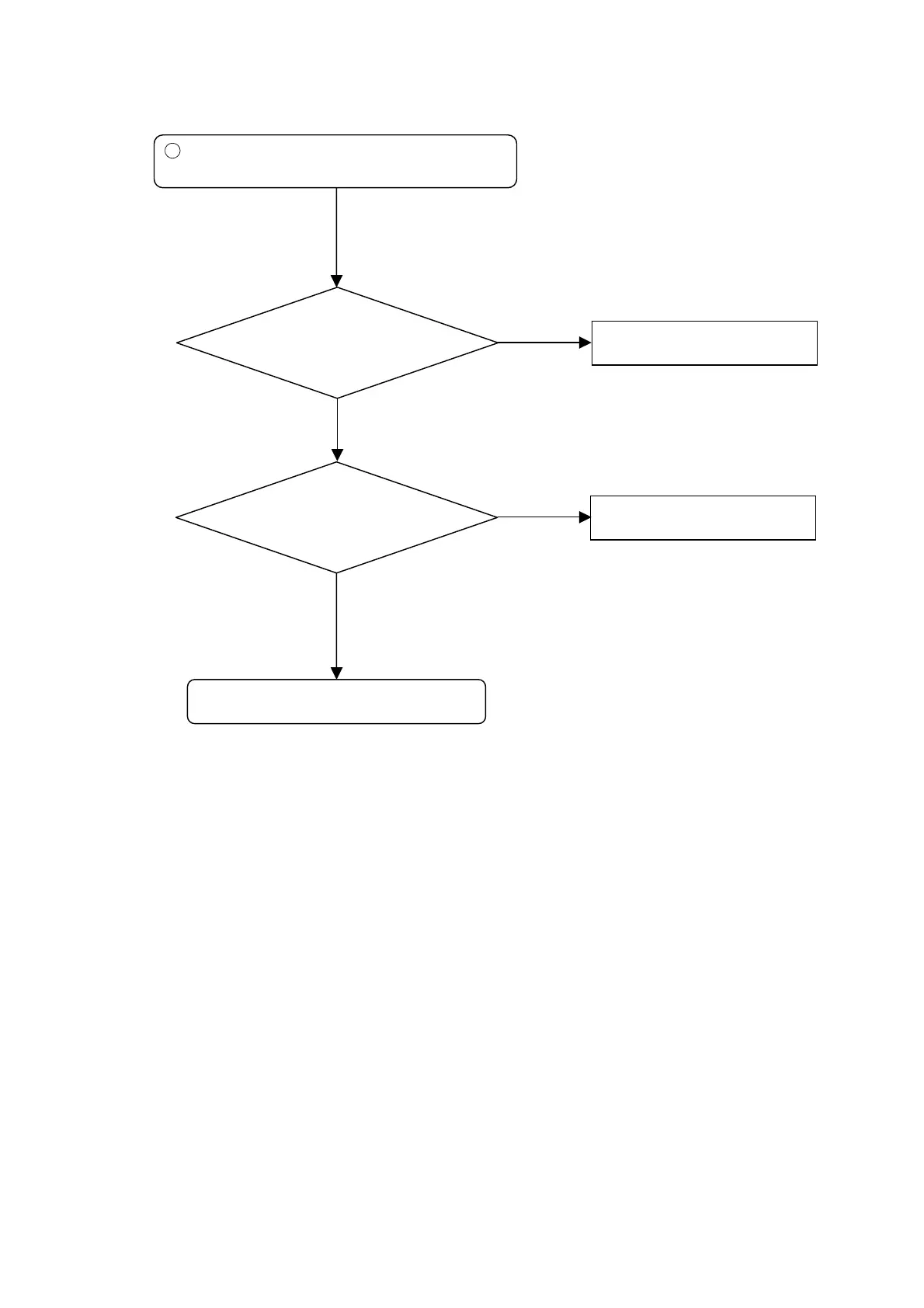

The near-point chart illumination is not ON
when pressing the switch of the operation unit.
Is the J109 connector
inserted securely?
Replace the near-point chart illumination.
Is there voltage of
5V or more between pin 1 and
pin 2 in J109?
Replace the MAIN PCB.
Insert the connector.
R-CV5000-0-0704-01
