11 Topcon (Great Britain) Medical Limited | DRI OCT Triton | Quick Reference Guide | Fundus Photography

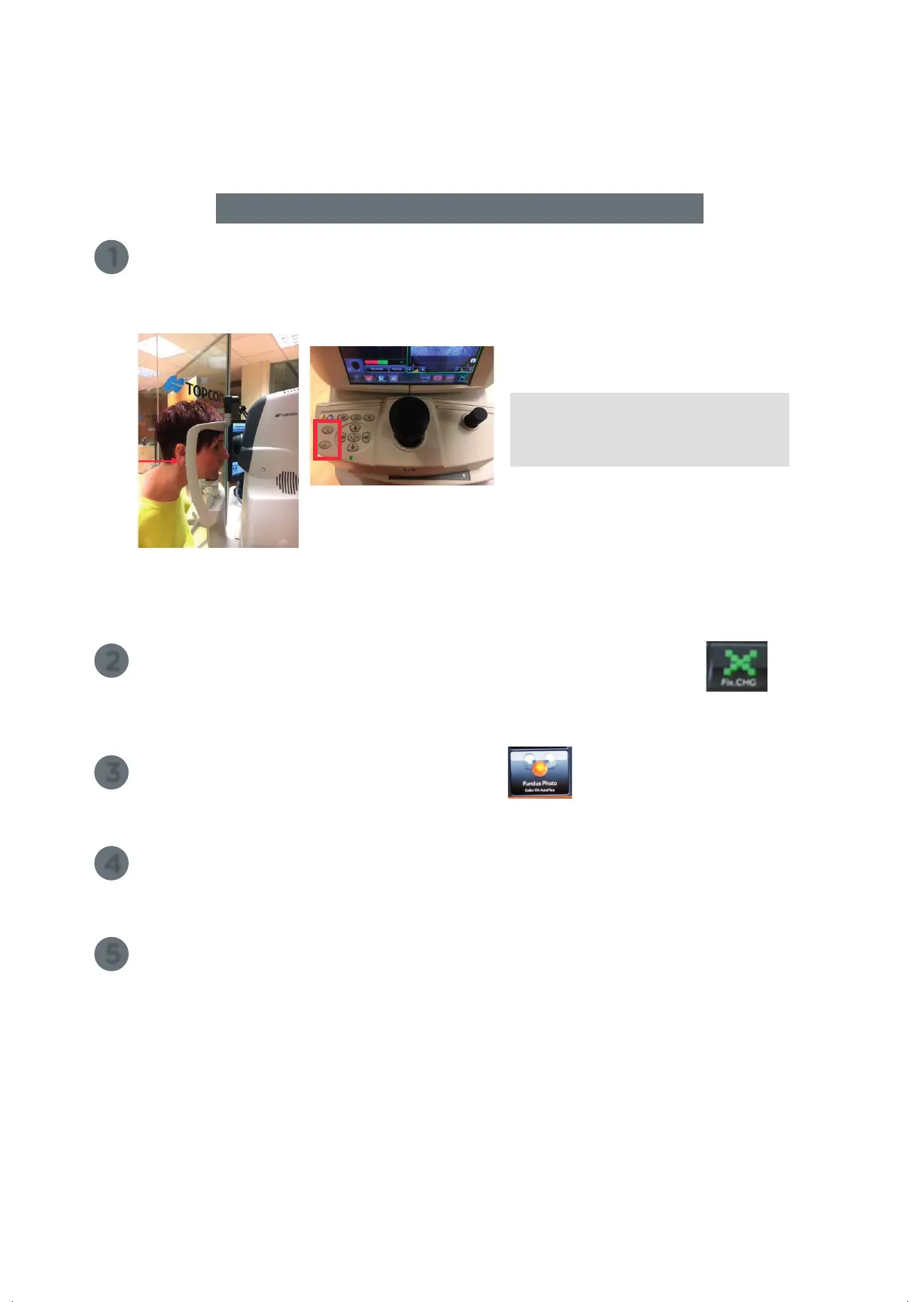

Fundus Photography – Colour or Auto Fluorescence
1
Position the Patient - Set the Patient's chin on chinrest. Keep their chin and forehead stable.
Be sure to adjust the chinrest height to align the eye marker and the corner of the eye.
2
Instruct the Patient to look straight ahead and find the internal
fixation target.
3
Select [Fundus Photo] on main menu.
4
Press the relevant [Fundus Photo] button – [Colour] or [Auto Fluorescence] -
change fixation position from Macula, Centre or Disc.
5
Move the machine in until the two circles are green and together within the brackets.
Adjust IR brightness or flash power if required and also the fixation target to adjust
Patient fixation.
Adjust the Patient’s height using the [Up]
and [Down] chinrest buttons found next to
the joystick on the machine.
11 Topcon (Great Britain) Medical Limited |
DRI OCT Triton | Quick Reference Guide | Fundus Photography
Fundus Photography – Colour or Auto Fluorescence
1
Position the Patient - Set the Patient's chin on chinrest. Keep their chin and forehead stable.
Be sure to adjust the chinrest height to align the eye marker and the corner of the eye.
2
Instruct the Patient to look straight ahead and find the internal
fixation target.
3
Select [Fundus Photo] on main menu.
4
Press the relevant [Fundus Photo] button – [Colour] or [Auto Fluorescence] -
change fixation position from Macula, Centre or Disc.
5
Move the machine in until the two circles are green and together within the brackets.
Adjust IR brightness or flash power if required and also the fixation target to adjust
Patient fixation.
Adjust the Patient’s height using the [Up]
and [Down] chinrest buttons found next to
the joystick on the machine.
11
61647 Topcon quick start guide Triton.indd 11 27/03/2019 09:56
