17-6

17 CHECK AND ADJUSTMENT

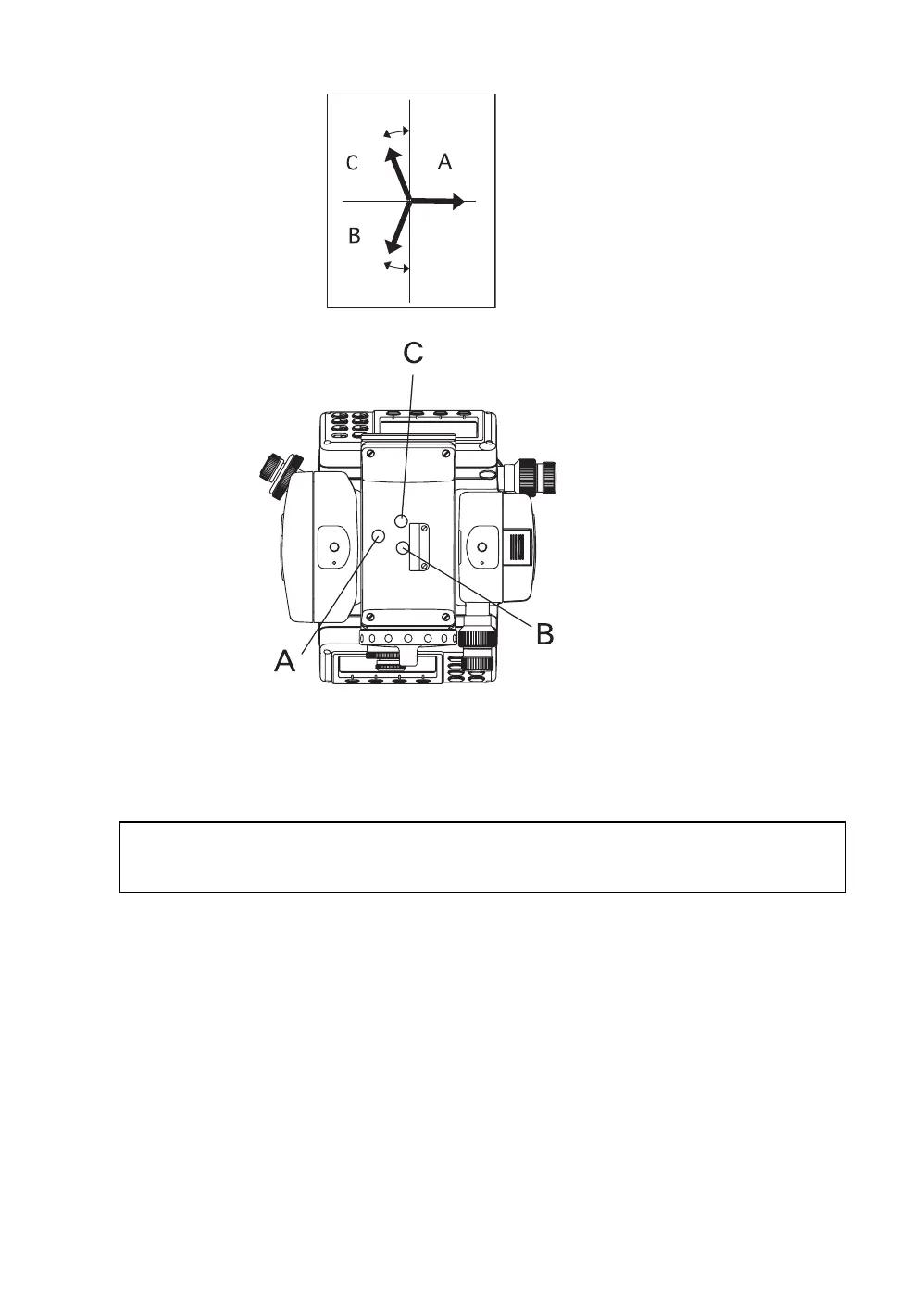

when screws A, B and C are turned clockwise (the direction for tightening them), the laser pointer, as

seen on the target from the standpoint of the GPT-3000, will move in the direction shown in the

drawing.

About30

The direction of the laser pointer

Adjustment screws

As seen from above

About30

● Tighten the 3 screws so that they are equally tight.

● Do not lose the rubber caps of the adjustment screws.
