3-6

3 ANGLE MEASUREMENT

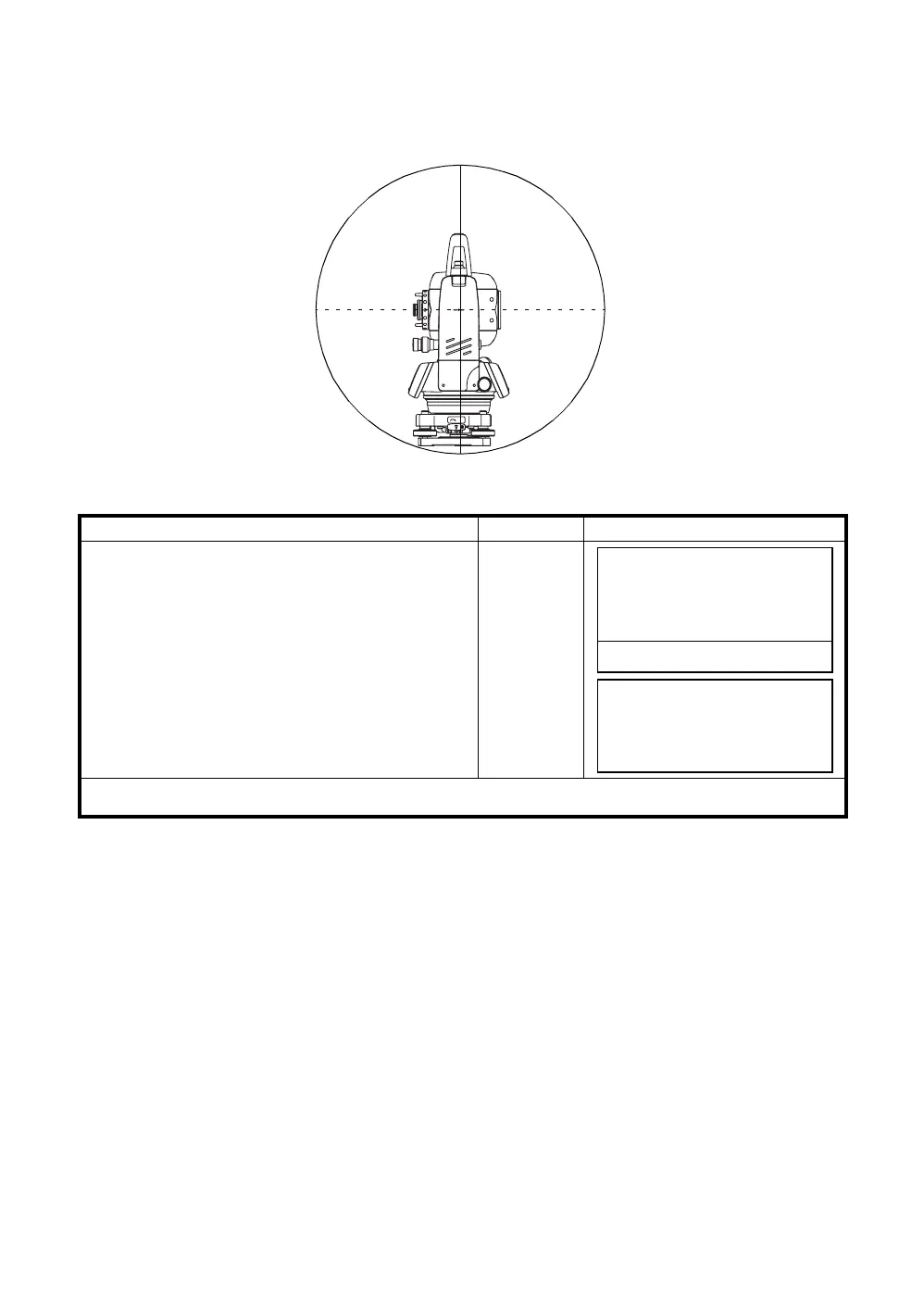

3.7 Compasses ( vertical angle)

Vertical angle is displayed as shown below.

Operating procedure Operation Display

Press the [F4](

↓

) key twice to get the function

on page 3.

[F4]

twice

Press the [F3](CMPS) key. *1)

[F3]

*1) Every time pressing the [F3](CMPS) key, the display mode switches.

LOCK

+90°

-90°

0°

V : 98°10'20"

HR: 170°30'20"

0SET HOLD HSET P1

↓

H-BZ R/L CMPS P3

↓

V : - 8°10'20"

HR: 170°30'20"

H-BZ R/L CMPS P3

↓
