7). Make sure there is 1” distance at least between the wheel cover and the gate after you position the base
plate.

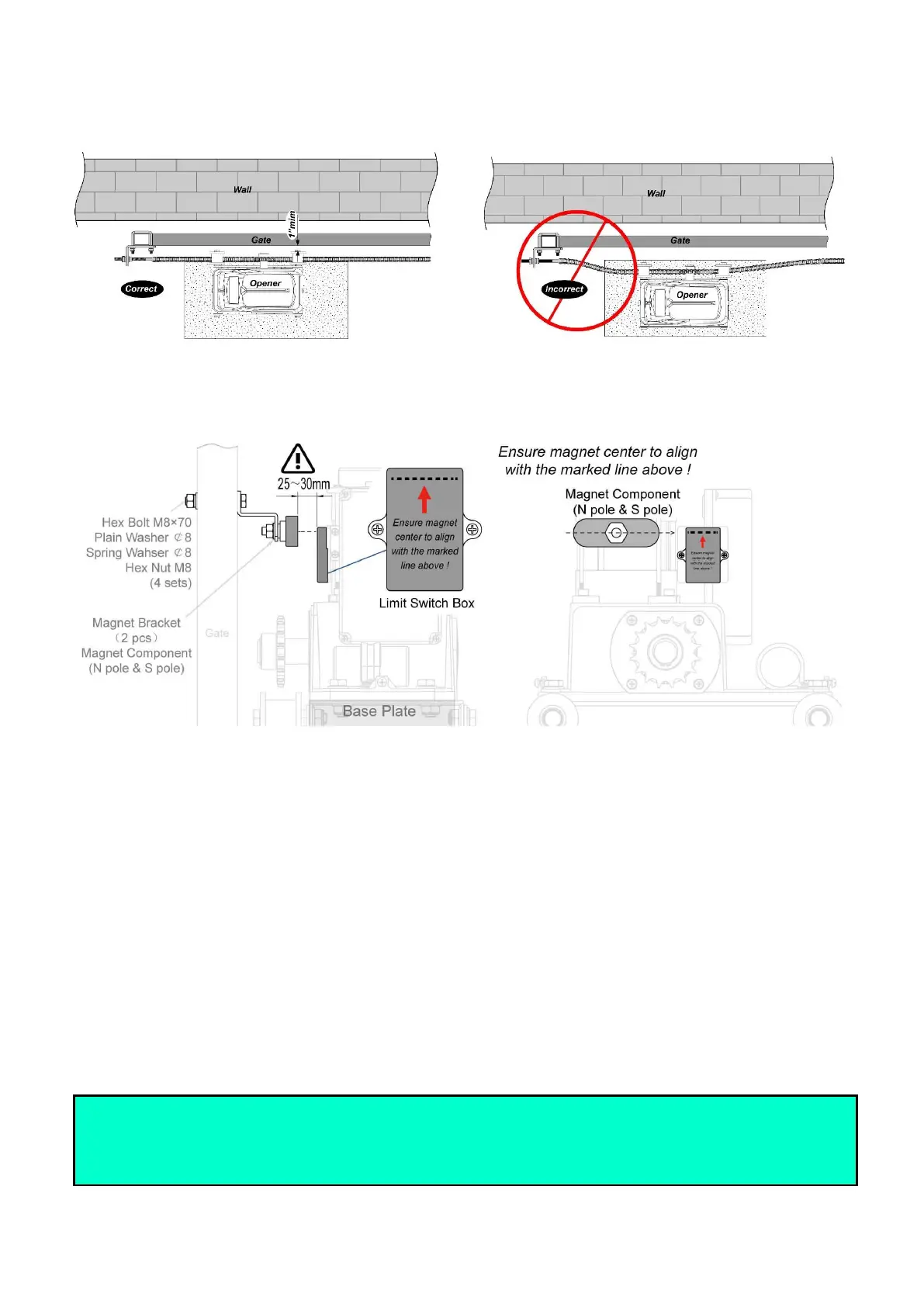

Installation of the Magnets
Before install limit switch, make sure the gate opener is put in manual operation. (the clutch connected with
gear shaft is disengaged) and the mains power supply is disconnected. Position the two Magnet
Components approximately on the gate and move the gate by hand to fix them in place.
Fit magnets bracket
Push the gate fully closed by hand. Locate and install the magnet bracket so that the opener will stop at the
desired close position when the close limit switch approaches it.
Push the gate fully open by hand. Locate and install the magnet bracket so that the opener will stop at the
desired open position when the open limit switch approaches it.
The magnet component with S pole must be installed at left side and the magnet component with N
pole must be installed at right side from the view inside of property.
Ensure magnet center to align with the marked line above !
The magnets should be 25~30mm (1-1.2”) away from the Limit Switch Box. If it is too near or too far, the
switches will fail to work. Adjust the position of the magnets until the positions of the opening and closing
meet the requirement.
Warning: Improper magnets installation may cause the gate crash into end barrier,
which is very dangerous !
