Topens CF800 - Connecting of Power Supply; Connecting of the Control Board

10
Connecting of Power Supply
WARNING: NEVER connect the gate opener to the power
outlet before all the installations have been done.
The power supply cord should be at least 3×0.75mm
2
(3C×18AWG).
Connect the live wire and neutral wire to the “L” (1) and “N” (2)
terminal of the control board respectively; and connect the earth wire
to “PE”.

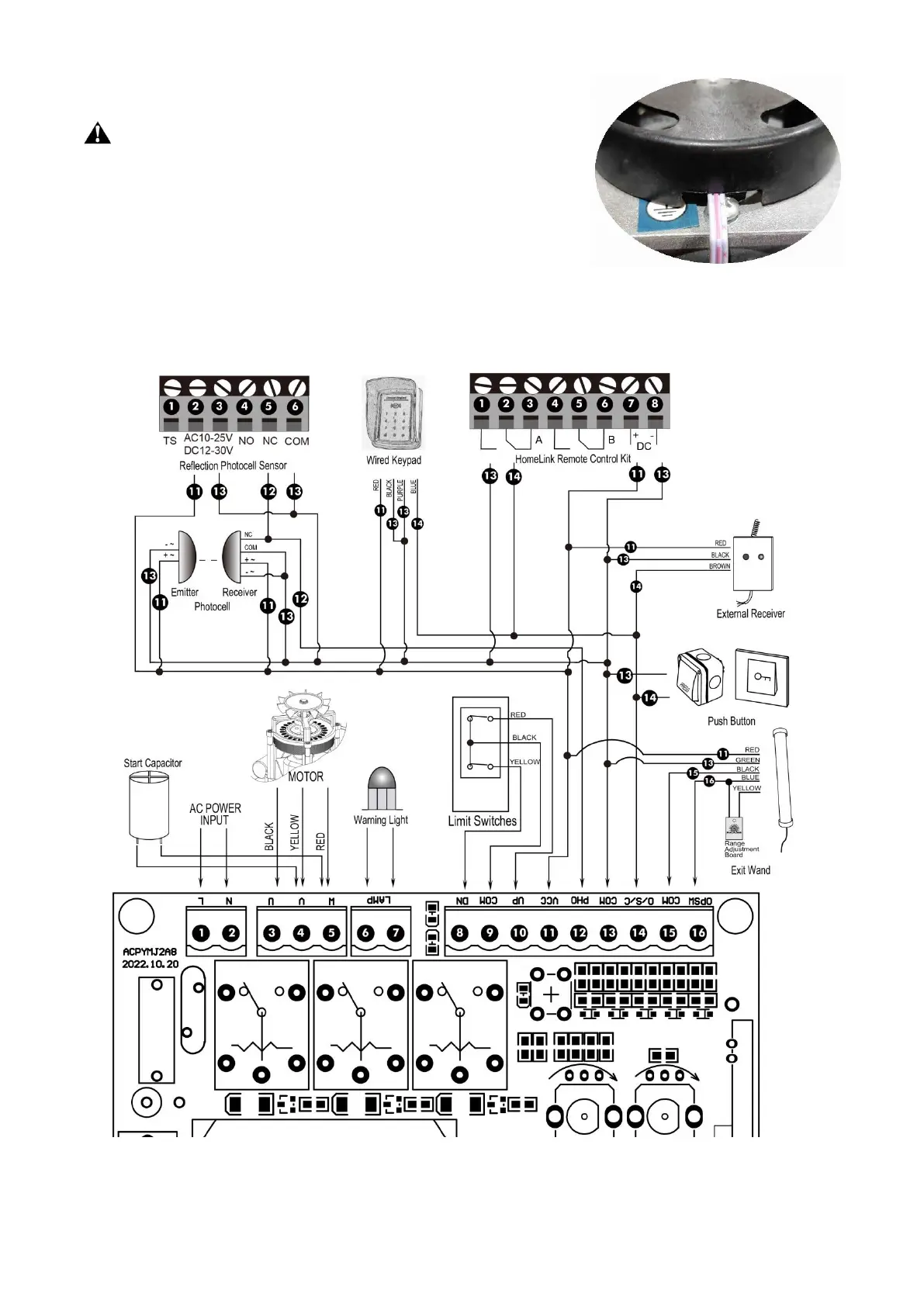

Connecting of the Control Board
1. Motor
The BLACK wire of the motor should be connected into the “3” terminal.
The YELLOW wire of the motor should be connected into the “4” terminal.
