Outswing Full Pedestrian 18 - 20 lbs Commissioning
Requirements
1. Shaft should be loose in the drive unit. Drive arm connected to door and shaft.
2. Determine system values for your application based on the illustrations on page 10.
Commissioning

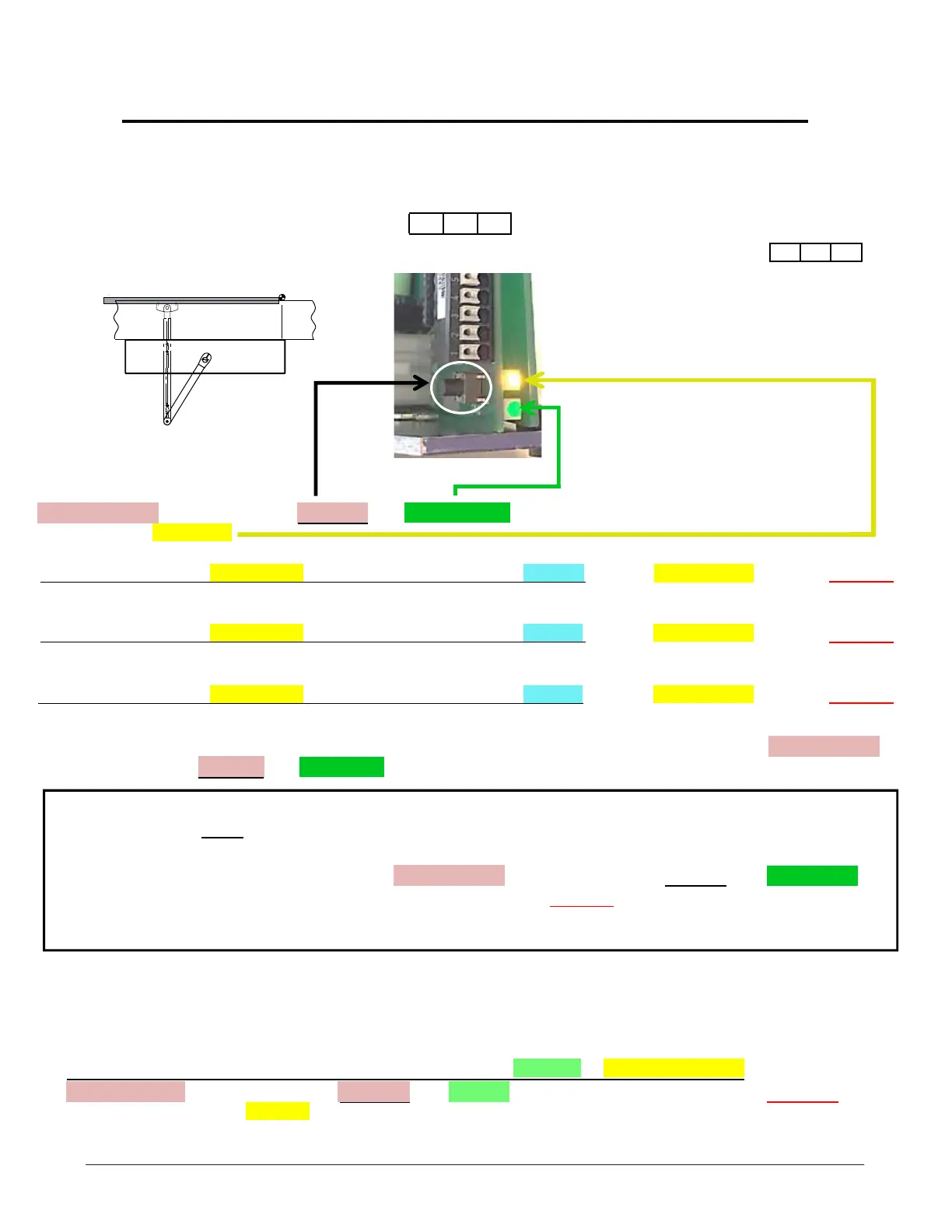

Commissioning Example: (3) = 36” door width, (1) = 0-2” reveal, (1) = Standard outswing Arm 11 3/8.
3 1 1
RECONNECT POWER (operator beeps 1x), then Press & Hold programming button & Release after 6 Green LED
Flashes. The operator will open 20 degrees stop and beep 2x.
Press & Release programming button. Operator will
slowly close and beep 2x, next slowly fully open & beep 2x, then close (beep 1x) followed by 5 beeps, and will cycle
fully open & close at normal speed.
Commissioning is complete for High Energy Applications. For Low Energy application complete the last step below
Program the country code into the controller. For additional programming refer to page 23 or Programming Tables.
Press & Hold Programming Button, Release after 1 Green LED Flash. The operator will make 1 beep and immediately
begin to flash the Yellow LED.
WHILE LOOKING AT THE YELLOW LED, WAIT FOR THE OPERATOR TO BEEP 1X, then after 3 yellow flashes, Press & Release
Programming Button
WHILE LOOKING AT THE YELLOW LED, WAIT FOR THE OPERATOR TO BEEP 2X, then after 1 yellow flashes, Press & Release
Programming Button
WHILE LOOKING AT THE YELLOW LED, WAIT FOR THE OPERATOR TO BEEP 3X, then after 1 yellow flashes, Press & Release
Programming Button
MADE AN ERROR DON’T WORRY: To start over Disconnect Power for 10 seconds, Reconnect Power, then Press & Hold
Programming Button and Release after 5 Green LED Flashes.
PAUSE
PAUSE
PAUSE
Enter Country Code 7 1: (Read Entire Step BEFORE attempting to enter Country Code)
PERFORM THIS STEP WHILE LOOKING AT BOTH GREEN & YELLOW LEDS.
Press & Hold
programming button, Release after 7 Green flashes then immediately Press & Release
programming button after 1 Yellow flash.
The operator will open 20 degrees stop and beep 2x. Attach Door Arm to Shaft and Door, place the Door in the
Closed Position, and
NOW Tighten the shaft to the operator at 25 ft-lbs. REMOVE POWER from Operator and
adjust open door stop to desired position, refer to page 22 for adjusting internal Open Door Stop.
