1. OFF - The interior and exterior activators are inhibited after the door reached
the fully closed position, if an electric lock is present it will be activated. Door
will cycle open, if a signal is sent to the key switch input.
2. AUTOMATIC - Typical setting for normal 2-way traffic operation with interior
and exterior activators, key switch input and safety devices operating the door.
3. REDUCED OPERATING - Allows the door to open with a reduced opening
width. Activators and safety devices operate the same as automatic mode.
4. EXIT - (1-way traffic) Allows interior activator and key switch inputs to operate
the door. The exterior activator input is inhibited from opening the door while
the door is closed. When the door is opened/ closing the exterior activator
becomes operational and will re-open a closing door.
5. HOLD OPEN - Hold and maintains the door in the open position.
6. (P) MANUAL OPERATION - Allows the door to be used manually without the
use of sensors. Push and pull motion applied to the door to open and close
the door.
Electric door
lock LED indicator
#1) OFF Mode
#2) AUTOMATIC Mode
#3) REDUCED OPEN Mode
#4) EXIT Mode
#6) (P) MANUAL Mode
KEY 1
KEY 2
#5) HOLD OPEN Mode
LED indicates current
operating mode

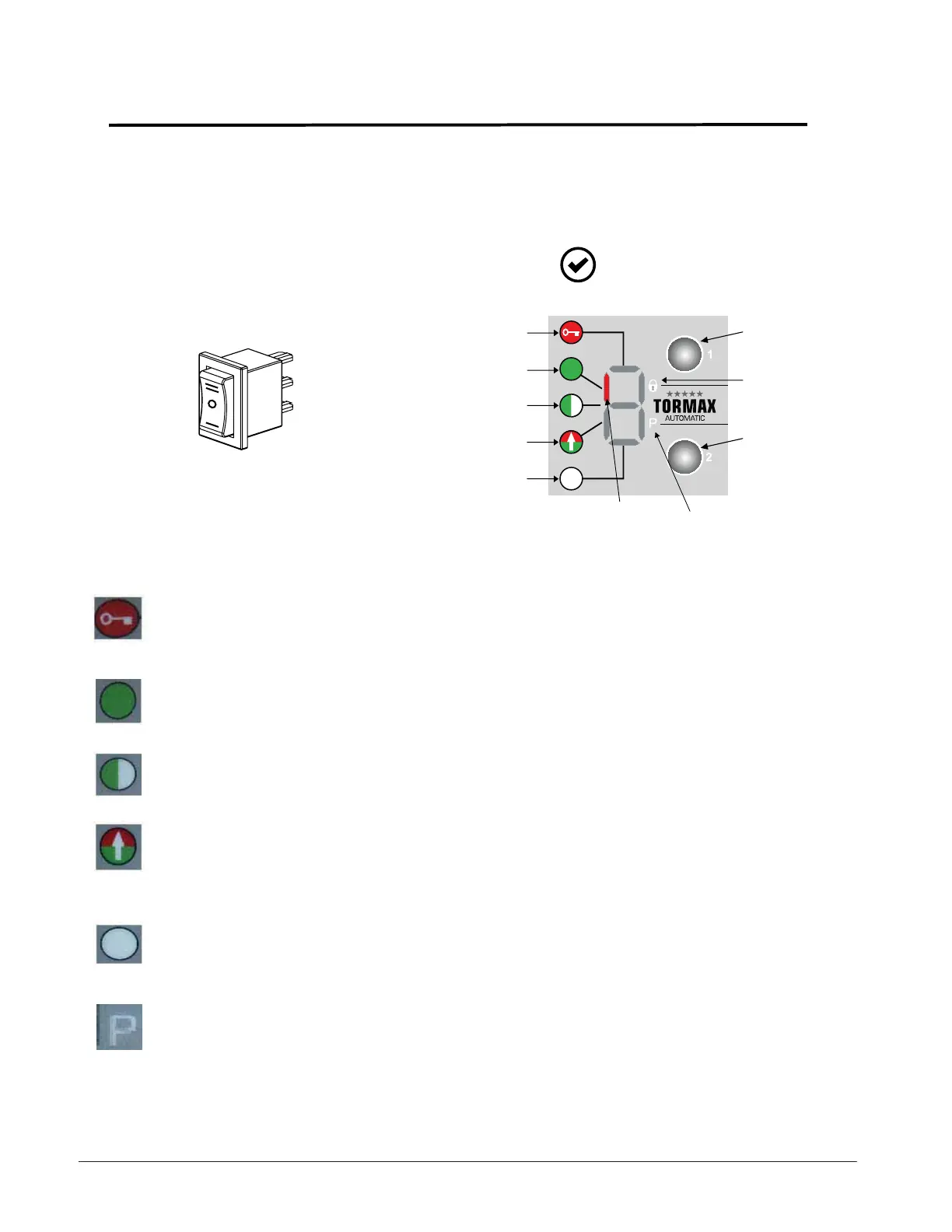

Modes of Door Operation
Modes of operation can be selected with either the standard 3-position switch or the
optional 6 position Functional Control Panel (FCP).
The technician will review the appropriate mode switch with the end-user.
OFF
AUTO
HOLD OPEN
Standard:
1102/ 1201
Optional:
1102/ 1201
6
www.tormaxusa.com
