12 Instructions for Use iMotion 2202 / 2301/ 2302 / 2401 T-1321 e
Fault Display
E.g. H31 or E11  See section 7 for the meaning of the display.
• Resetbypressingtheselectorkey2briey.
Resetting the System
• Presstheselectorkey2foratleast2seconds.
The software is restarted. The control system then conducts a calibration run, checks the travel distance
and looks for the end position again. Displayed as H61 and H62.
4.3 Operation with an Operating Mode Switch
Selection of Operating Modes
The operating mode can be set directly.
(Reset the system after disconnecting the power supply for at least 5 seconds.)
T1305_4
OFF
AUTOMATIC 1
OPEN
T1321_8
T1321_9
T1321_10
T1321_11
iMotion 2301, 2302, 2401 iMotion 2202
iMotion 2301, 2302, 2401 iMotion 2202

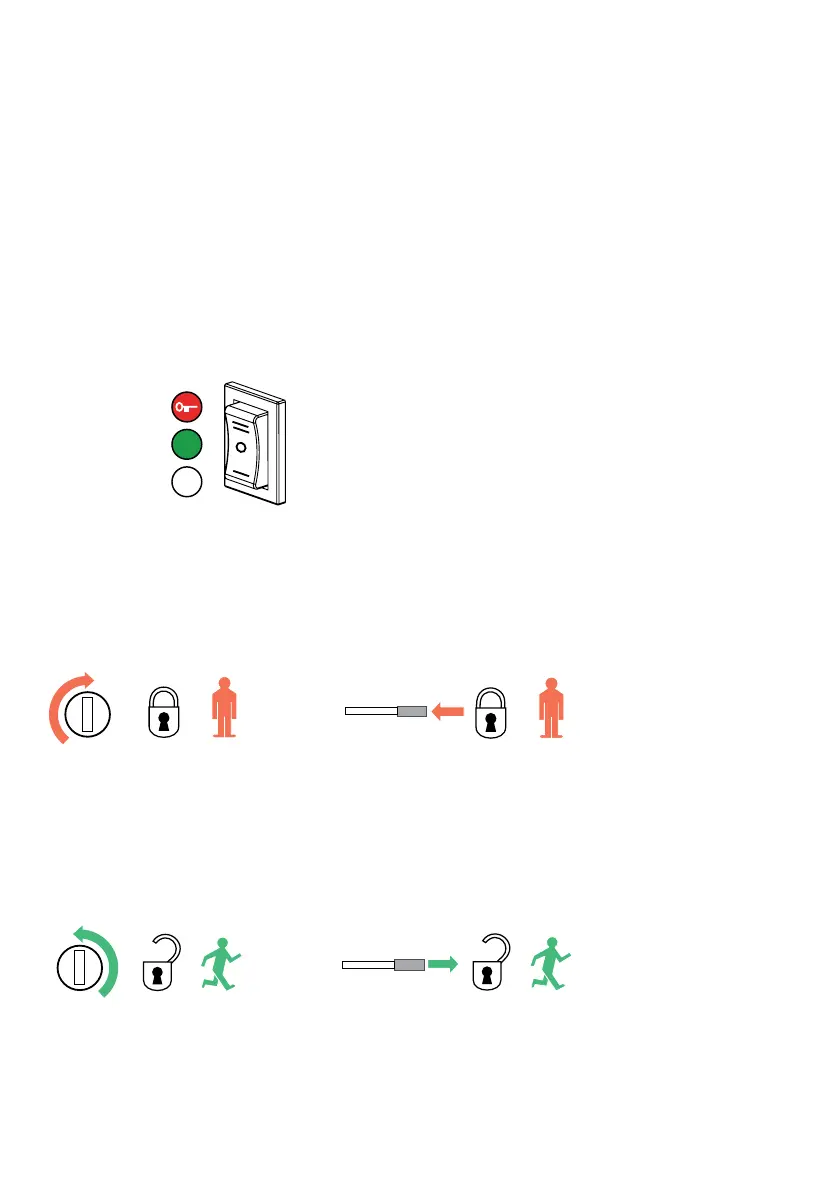

4.4 Operation on Power Failure
Manual Locking u
• Turnthemanualoperationknobclockwise(iMotion2301,2302,2401)orpressthemanualoperation
lever inwards (iMotion 2202).
• Pushthedoorclosedbyhanduntilthelatchengages.
• Switch theoperating modeswitch tooperating mode OFF.If a TORMAX userinterfaceis used,
operating mode OFF is automatically set when power is reconnected as the lock is engaged.
Manual Unlocking u
• Turnthemanualoperationknobanti-clockwise(iMotion2301,2302,2401)orpullthemanualop-
eration lever outwards (iMotion 2202).
• Pushthedooropenbyhand.
• Settheoperatingmodeswitchtotheoperatingmodeyouwantwhenpowerisrestored.
