16
MAINTENANCE

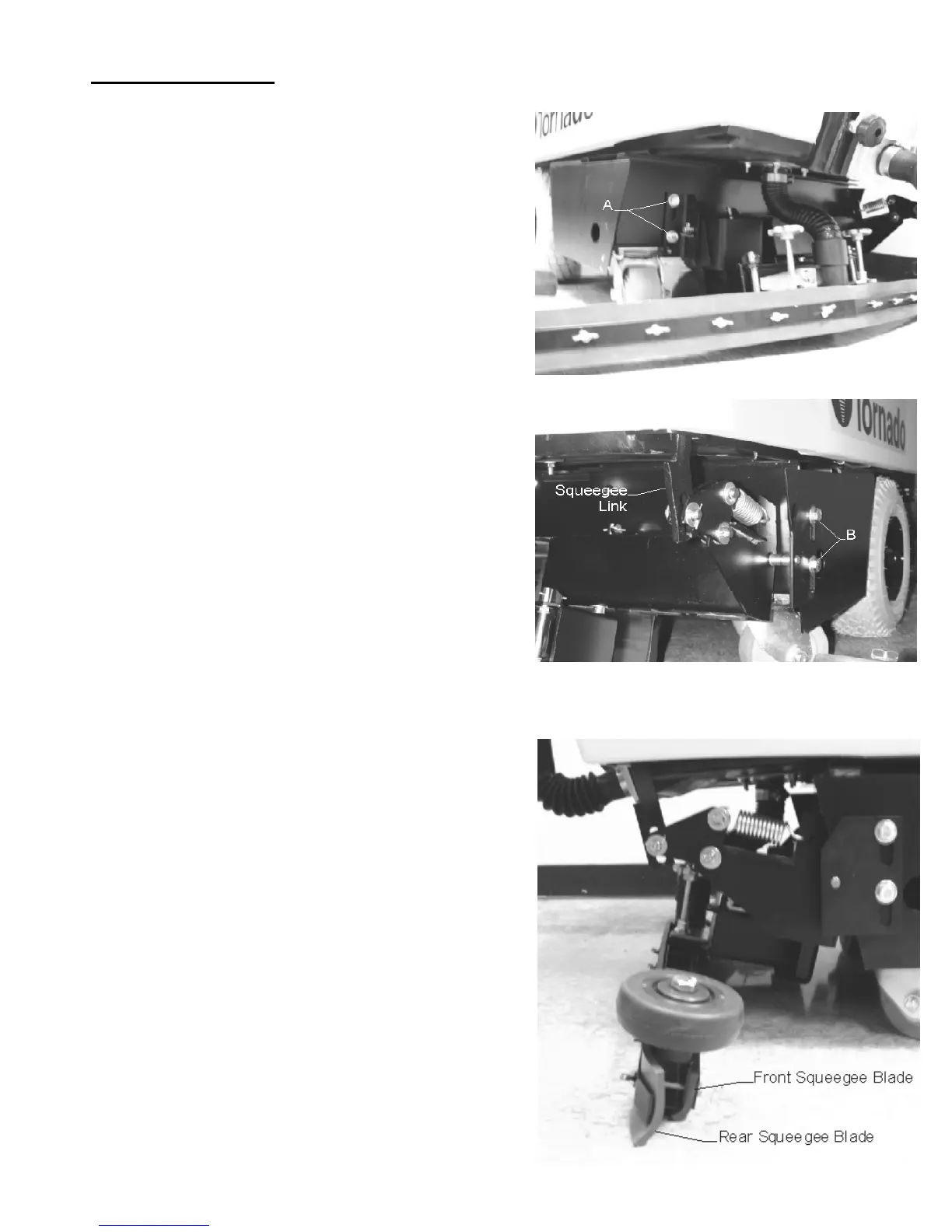

Squeegee Adjustment
1. Height and flatness adjustments are made by
loosening the four screws (A & B) and lifting or lowering
the entire squeegee mechanism as desired.
2. Turn machine on and move machine forward slightly.
3. Look down at the contact being made between the
squeegee blades and the floor. Make adjustments
as required.
4. Correct adjustment is made when squeegee blades rest
evenly on the floor. Tighten four screws (A & B).
Blade pressure is adjusted by lengthening or shortening
the length of the squeegee link.
There are three holes at each end of link which are used
for adjustments.
For Smooth Floors:
Use the soft (3/1 6”) rear squeegee blade. (Standard)
Release the squeegee lever above and allow the
squeegee to rest on the floor.
For Rough Floors:
Use the firm (1/4” thick) rear squeegee blade.
Lock the handle in the down position so that squeegee is
forced down to floor.
