#99332 BRUSH MOTOR ASSEMBLY PARTS LIST

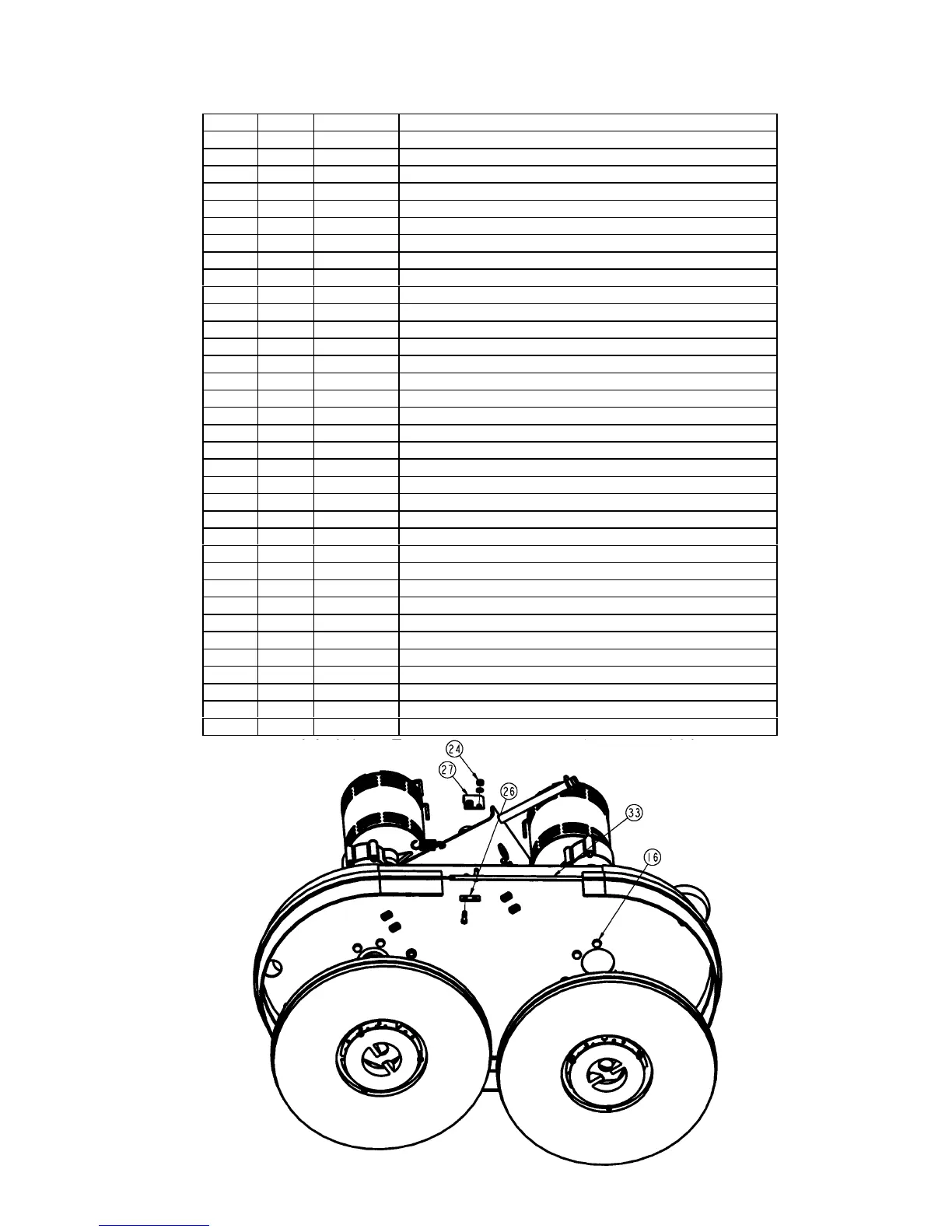

(Ref. Drawing 30913)
ITEM QTY PART # DESCRIPTION
1 6 01574 LOCK WASHER 1/4”
2 2 02568 WASHER - PLAIN 5/16
3 4 03218 WASHER - PLAIN 1/4
4 2 03470 RING - RETAINING EXT. “E” ½” (HEAVY DUTY)
5 2 03472 RING, RETAINING. 5/8
6 4 03931 WASHER - PLAIN 5/8
7 2 06387 LOCK - WASHER
8 4 07723 WASHER – SPRING 1/2’
9 2 10436 COVER, RUB WHEEL
10 4 10513 NUT - HEX JAM
11 4 12957 WASHER - PLAIN 1/2
12 2 14500 SCREW - HEX HEAD CAP 1/2-13 X 2-1/2
13 2 14817 WHEEL. 4 X 1-1/4
14 1 16412 SPRING - EXTENSION
15 1 16558 PIN, ACTUATOR TUBE
16 8 16671 SCREW - HEX HEAD CAP 3/8-16 X 518
17 2 16672 SCREW - HEX HEAD CAP 5116-18 X 3/4
18 1 16727 BRACKET
19 1 16734 SHAFT, GROOVED
20 2 16736 ABSORBER BLOCK
21 2 16737 3/8-16 UNC GRADE 5
22 2 17093 SET SCREW 5/16-18 X 1-3/4’ LG.
23 6 17160 SCREW - HEX HEAD CAP 1/4-20 X 3/4
24 2 17508 NUT - FINISHED HEX 1/4-20
25 2 17733 KEEPER
26 1 17751 FLAT W/2 HOLES
27 1 17752 RESTRAINER
28 2 18486 FITTING, PLASTIC ELBOW
29 2 18564 MOTOR - 3/4 HP, 36 VDC. 200 RPM
30 1 30757 ACTUATOR TUBE
31 1 30783 32 BRUSH COVER WELDMENT
32 1 31092 PIN - BRUSH SHAFT
33 1 31286 STRAP - BUMBER
34 2 98566 PAD HOLDER, ASSEMBLY
35 1 31285_F BUMPER
