Tornado 99328 User Manual

33

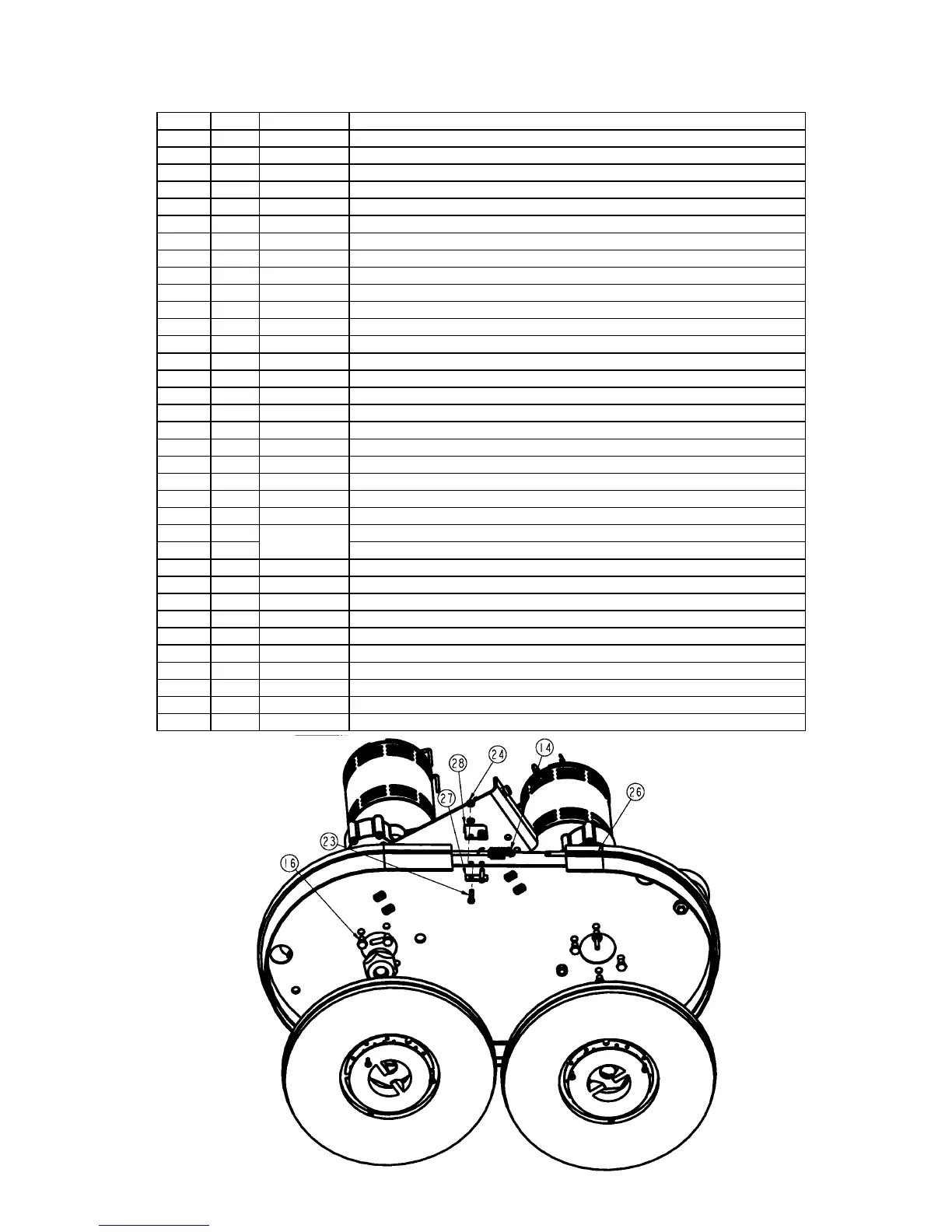

#99328 BRUSH MOTOR ASSEMBLY PARTS LIST
(Ref. drawing 30877)
ITEM QTY PART # DESCRIPTION
1 6 01574 LOCK WASHER ¼”
2 2 02568 WASHER-PLAIN 5/16”
3 4 03218 WASHER-PLAIN ¼”
4 2 03470 RING-RETAINING EXT. “E” ½” (HEAVY DUTY)
5 2 03472 RING, RETAINING, 5/8”
6 4 03931 WASHER-PLAIN 5/8”
7 2 06387 LOCK-WAHER
8 4 07723 WASHER-SPRING ½’
9 2 10436 COVER, RUB WHEEL
10 4 10513 NUT-HEX JAM
11 4 12957 WASHER-PLAIN ½”
12 2 14500 SCREW-HEX HEAD CAP 1/2-13 X 2-1/2
13 2 14817 WHEEL, 4 X 1-1/4
14 1 16472 SPRING - EXTENSION
15 1 16558 PIN, ACTUATOR TUBE
16 8 16671 SCREW-HEX HEAD CAP 3/8-16 X 5/8
17 2 16672 SCREW-HEX HEAD CAP 5/16-18 X 3/4
18 1 16727 BRACKET
19 1 16734 SHAFT, GROOVED
20 2 16736 ABSORBER BLOCK
21 2 16737 3/8-16 UNC GRADE5
22 2 17093 SET SCREW 5/16-18 X 1-3/4” LG.
23 6 17160 SCREW-HEX HEAD CAP 1/4-20 X 3/4
24 2 17508 NUT-FINISHED HEX 1/4-20
25 2 17733 KEEPER
26 1 17736 STRAP-BUMPER
27 1 17751 FLAT W/2 HOLES
28 1 11752 RESTRAINER
29 2 18486 FITTING, PLASTIC ELBOW
30 2 18564 MOTOR-3/4 HP. 36 VDC. 200 RPM
31 1 30757 ACTUATOR TUBE
32 1 30792 28 INCH BRUSH COVER
33 1 31092 PIN-BRUSH SHAFT
34 2 99152 PAD HOLDER. ASSEMBLY
35 1 31284_F BUMPER
