Tornado 99328 User Manual

27

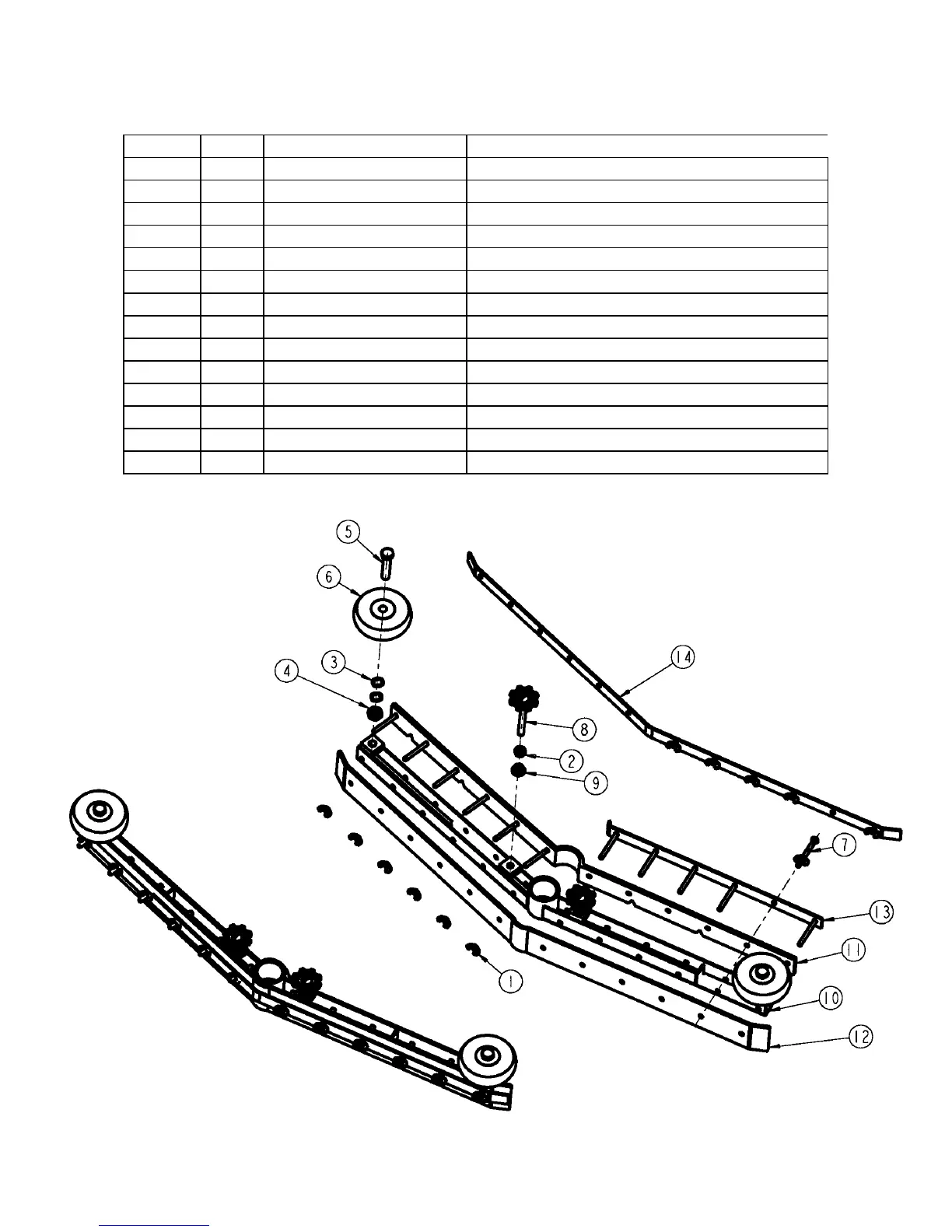

#99332 SQUEEGEE ASSEMBLY – PARTS LIST
(Ref. Drawing 31281)
ITEM QTY PART NUMBER DESCRIPTION
1 12 01019 NUT - WING 1/4-20
2 2 05025 NUT - HEX JAM
3 4 07723 WASHER – SPRING ½”
4 2 10513 NUT - HEX JAM
5 2 14500 SCREW - HEX HEAD CAP 1/2-13 X 2-1/2
6 2 14817 WHEEL, 4 X 1-1/4
7 12 15669 SCREW - HEX HEAD CAP 1/4-20 X 2-1/2
8 2 16365 KNOB ASSY
9 2 16876 NUT-HEX FLANGE 3/8-16
10 1 31273 SQUEEGEE WELDMENT 32 IN.
11 1 31274 SQUEEGEE, 32 IN. FRONT
12 1 31275 SQUEEGEE, 32 IN. REAR
13 2 31276 RETAINER STRIP, FRONT
14 1 31277 RETAINER WELDMENT 32 IN.
