Tornado 99328 User Manual

26
#99328 SQUEEGEE ASSEMBLY – PARTS LIST

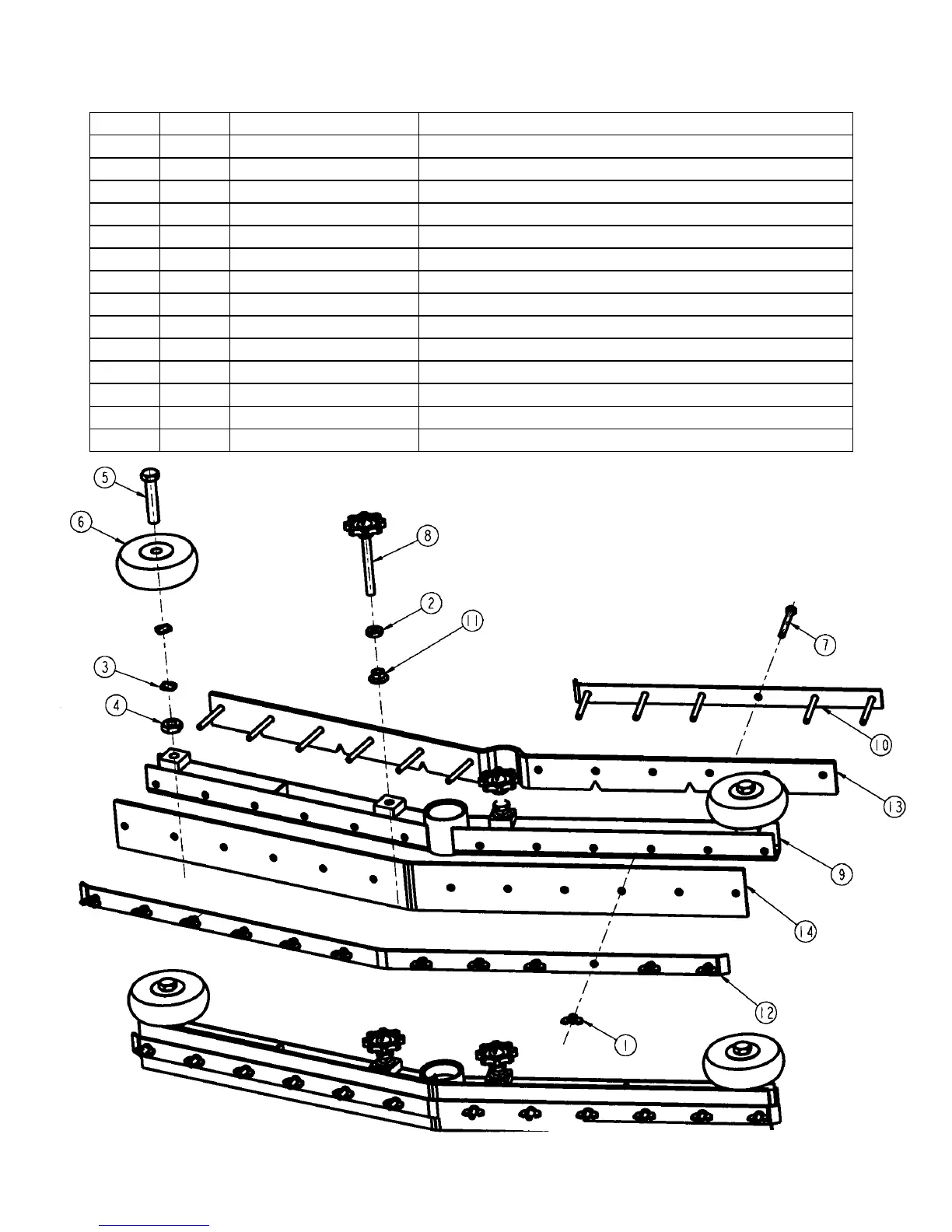

(Ref drawing 31185)
ITEM QTY PART NUMBER DESCRIPTION
1 12 01019 NUT - WING 1/4-20
2 2 05025 NUT - HEX JAM
3 4 07723 WASHER - SPRING ½”
4 2 10513 NUT - HEX JAM
5 2 14500 SCREW - HEX HEAD CAP 1/2-13 X 2-1/2
6 2 14817 WHEEL, 4 X 1-1/4
7 12 15669 SCREW – HEX HEAD CAP ¼-20 X 2-1/2
8 2 16365 KNOB ASSY
9 1 30947 SQUEEGEE WELDMENT 28
10 2 30950 RETAINER - FRONT 28 INCH
11 2 16876 NUT - HEX FLANGE 3/8-16
12 1 30951 RETAINER WELDMENT 28 IN.
13 1 30948 FRONT BLADE 28
14 1 30949 SQUEEGEE BLADE REAR 28 IN.
