ATTENTION:
This operation must be carried out using
gloves to protect from contact with dan-
gerous solutions.

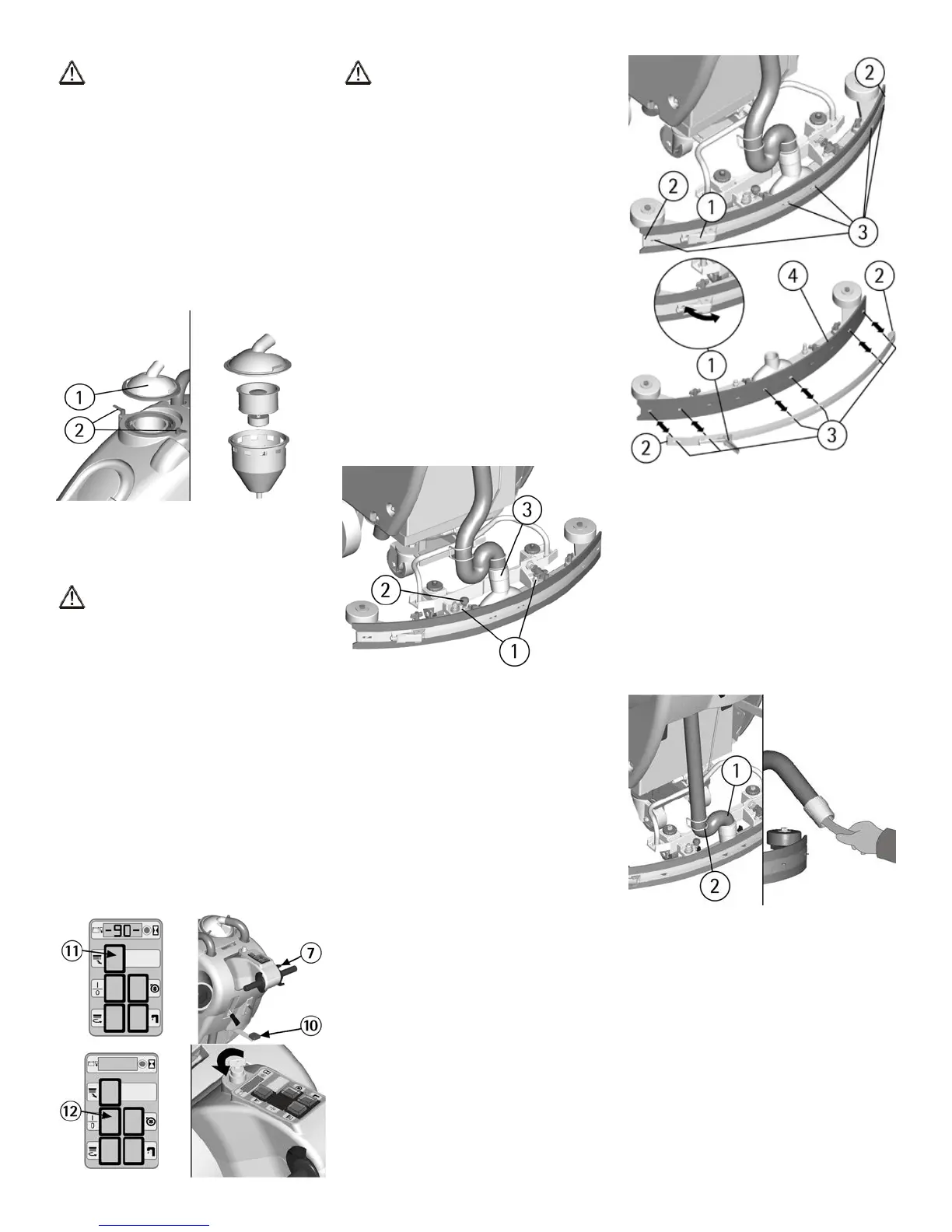

SUCTION FILTER CLEANING
1. Take off suction cover (1) after rotating
the blocking levers (2).
2.Takeoffthelterandlterprotection.
3. Clean all parts with a water jet especial-
lyinsidesurfacesandlterbottom.
4. Carry out carefully the cleaning opera-
tions.
5. Reassemble all parts.
BRUSH CLEANING
Disassemble the brush and clean with a
water jet (for the disassembly see as fol-
lows under “BRUSH DISASSEMBLY”).
ATTENTION:
The execution of brushes disassembly
operations with electric supply on, may
cause damages to hands.
AUTOMATIC BRUSH DISASSEMBLY
1. Lift the brush base lowering the pedal
(10).
2. Act upon the levers drive control (7)
and simultaneously press the push button
(11) of the brush release. In this way the
brush is uncoupled automatically.
3. Release the push button and the levers.
4. Switch off the machine acting upon
the general switch (12). For machines
equipped with key switch (see under “OP-
TIONAL ACCESSORIES”), turn the key
counterclockwise.
ATTENTION:
The handling of the brushes operation
must be carried out using suitable gloves
to protect both mechanically from contact
with the bristles and the chemical risk of
contact with dangerous solutions.
SQUEEGEE CLEANING
Keeping the squeegee clean guarantees
always the best drying action.
For the cleaning it is necessary to:
1. Take off the squeegee hose (3) from its
coupling.
2. Disassemble the squeegee from its sup-
port by rotating the lever (2) counterclock-
wise and making slide the stud bolts (1) in
their slots up to their release.
3. Clean with care the internal part of the
squeegee inlet eliminating eventual dirt
residuals.
4. Clean with care the squeegee rubbers.
5. Reassemble all parts.
WEEKLY MAINTENANCE
REAR SQUEEGEE RUBBER RE-
PLACEMENT
Check the squeegee rubber wear and
eventually turn or replace it.
For the replacement it is necessary to:
1. Lift the squeegee acting upon the lever
(g.1,pos.16).
2. Uncouple the hook (1) of the rubber
holder blade, release the extremities (2)
from the squeegee body and take off the
rubber (4).
3. Turn the rubber (4) to a new side or
replace it.
To reassemble the squeegee reverse the
operations above, inserting the rubber (4)
on the guides (3), couple the extremities
(2) of the rubber holder blade onto the
squeegeebodyandnallyblockthehook
(1).
SQUEEGEE HOSE CLEANING
Weeklyorincaseofinsufcientsuction,
it is necessary to check that the squeegee
hose is not obstructed. Eventually, to clean
it, proceed as follows:
1. Take off the hose from the squeegee
coupling (1) and release the guide spring
of the squeegee hose (2).
2. Wash the inside of the hose with a water
jet, from the squeegee hose side.
3. To reassemble the hose reverse the
operations above.
CLEANING OF SOLUTION TANK
AND FILTER
1. Bring the machine to an appropriate
place for tanks draining.
2. Unscrew the solution tank cap (1).
3. Unscrew the exhaust plug (2).
3a. The machines equipped with the op-
tional device of the solution drainage, it is
sufcienttoopenthesolutionvalveofthe
device (see under "EMPTYING DEVICE
DETERGENT SOLUTION").
4. Rinse with a water jet the solution tank.
5.Rinsethesolutiontanklterplacedin-
side the exhaust plug, under the machine.
