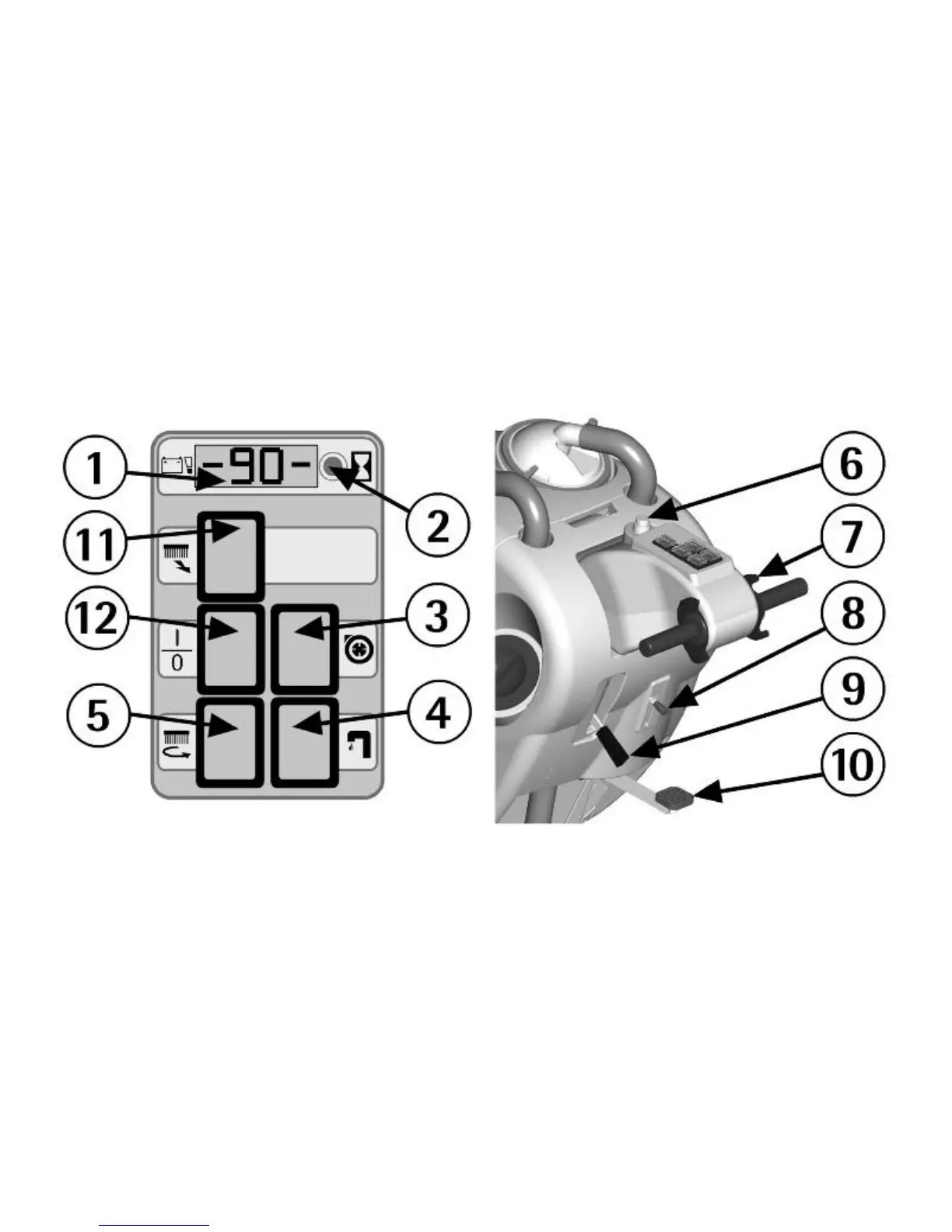

LEGEND INSTRUMENT BOARD AND CONTROLS
1. DISPLAY CHARGE LEVEL BATTERIES/HOUR METER
2. PUSH BUTTON VISUALIZATION HOUR METER (DISPLAY)
3. SWITCH SUCTION MOTOR
4. SIGNAL LAMP SOLUTION VALVE OPEN/ SWITCH 3S SYSTEM (OPTIONAL)
5. SWITCH BRUSH MOTOR
6. SWITCH WITH KEY (OPTIONAL)
7. BRUSH ACTIVATION LEVERS
8. LEVER SOLUTION VALVE
9. LEVER SQUEEGEE LIFTING
10. PEDAL BRUSH BASE GROUP LIFTING
11. PUSH BUTTON BRUSH RELEASE
12. GENERAL SWITCH (NOT USED WITH OPTIONAL KEY)
