6

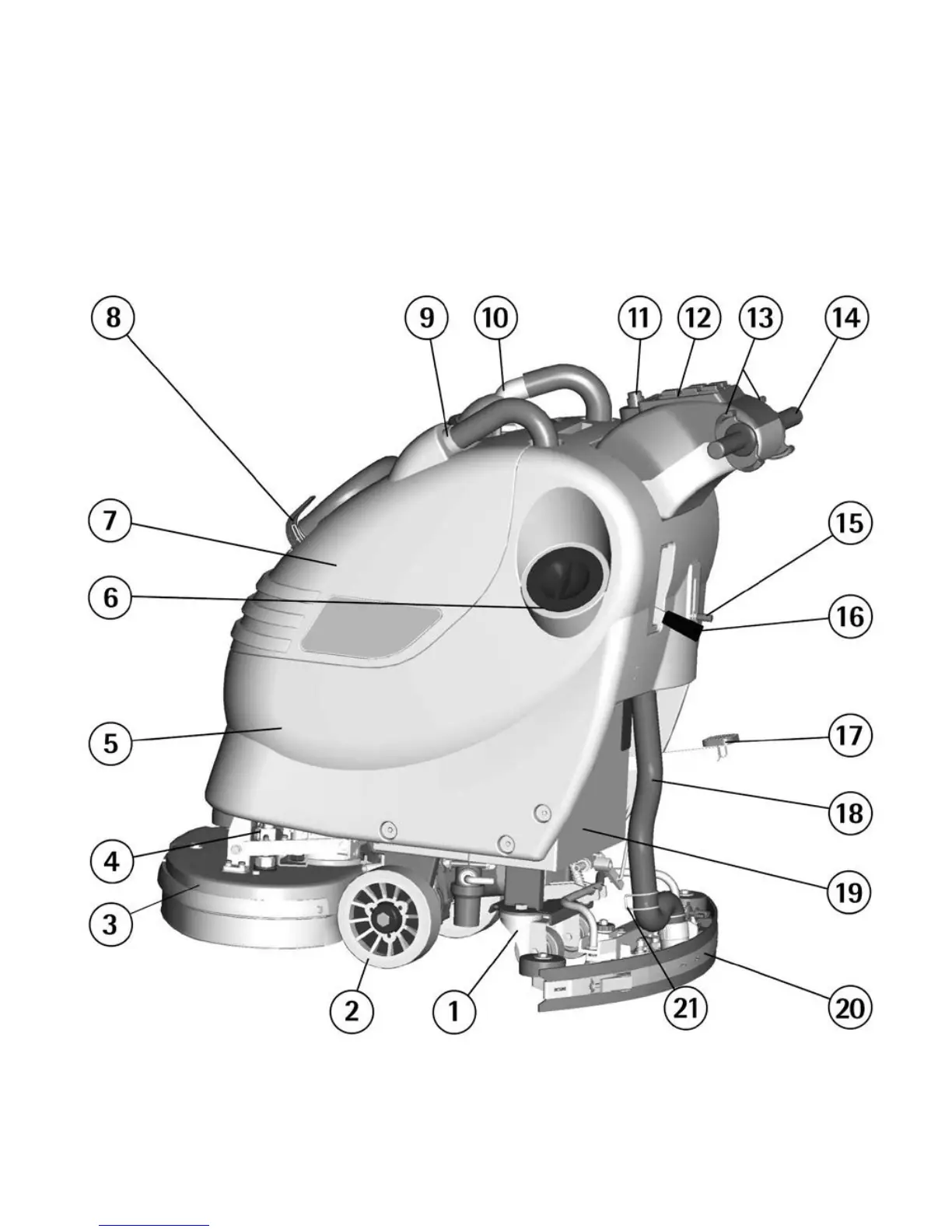

LEGEND MACHINE
1. CASTOR WHEELS
2. WHEELS
3. BRUSH BASE GROUP
4. SOLENOID VALVE (OPTIONAL)
5. SOLUTION TANK
6. SCREW CAP FOR INLET DETERGENT SOLUTION
7. RECOVERY TANK
8. PLUG EXHAUST HOSE RECOVERY TANK
9. INLET OPENING SQUEEGEE HOSE
10. SUCTION COVER
11. SWITCH WITH KEY (OPTIONAL)
12. INSTRUMENT BOARD
13. BRUSH ACTIVATION LEVERS
14. HANDLE BARS
15. LEVER SOLUTION VALVE
16. LEVER SQUEEGEE LIFTING
17. PEDAL BRUSH BASE GROUP LIFTING
18. SQUEEGEE HOSE
19. BATTERIES
20. SQUEEGEE ASSEMBLY
21. GUIDE SPRING SQUEEGEE HOSE
