33
Voltage Coast Drop Detection Enable : If enable, this second condition on the battery test is activated. On smaller
battery, the rise in current during a boost test might be to small to have a conclusive test. This second test verify the
capacitive effect on the battery line after a boost sequence.
Battery Fail From Engine RPM During Crank : If enable, the Battery Fail alarm will be activated if no RPM is read
after a crank cycle
Charger 1-2 Power Supply Voltage Reference : This is the voltage that is applied by the battery charger in power
supply mode (no battery connected). To measure this voltage, the battery must be disconnected.

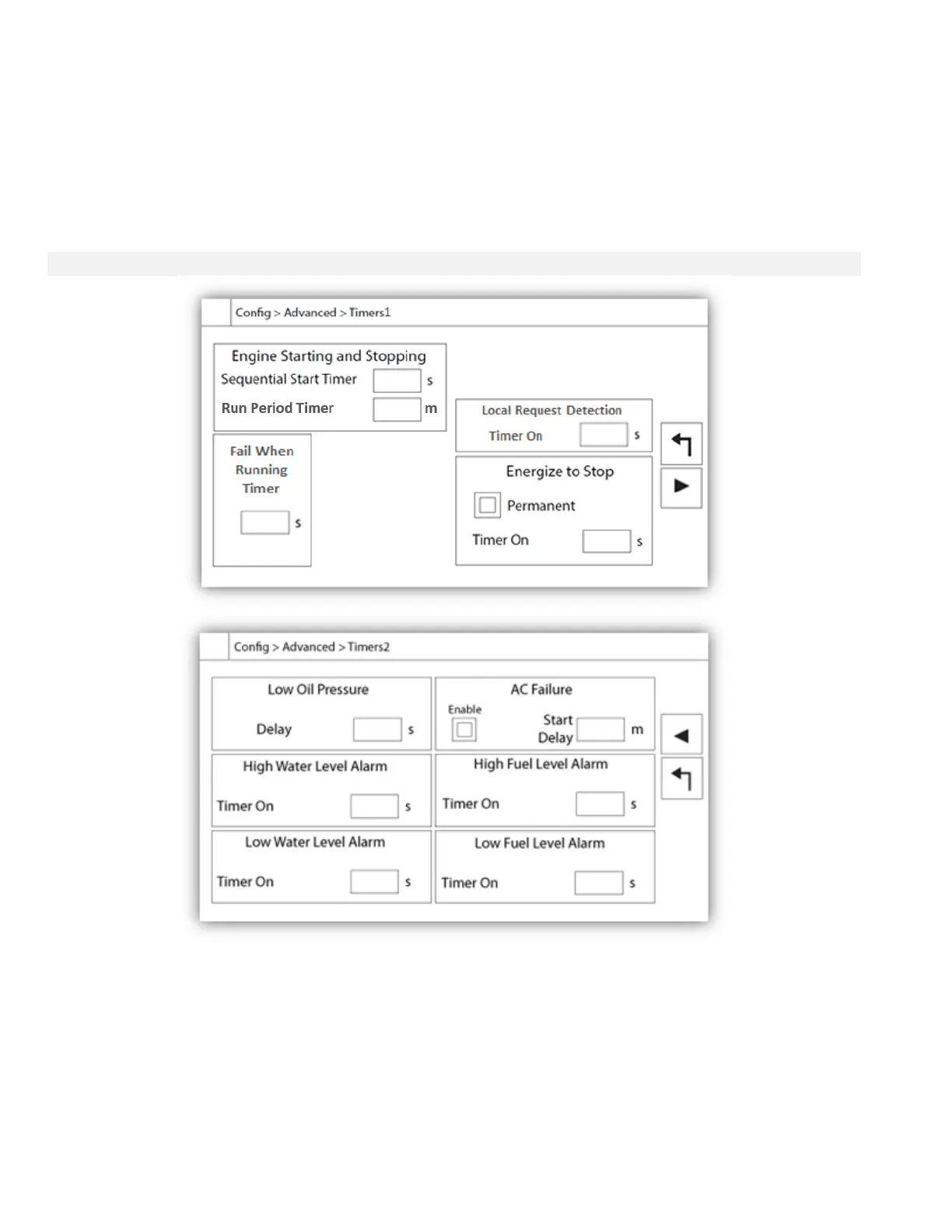

Config > Advanced > Timers1-2
Most common timers for fire pump control can be configured here. Note that any timer set to 0 will remove the delay
in the decision process.
Access level 1:
- Engine starting and stopping:
The main timers settings are the “Sequential Start Timer” (seconds), which allows a delayed response on an
automatic start request, the “Run Period Timer” (minutes), which in case of an automatic shutdown controller sets
the time before the controller will stop the engine when all conditions are back to normal. The Energize to Stop
setting must be selected in Factory. If selected, the timer can be configurable on site.
