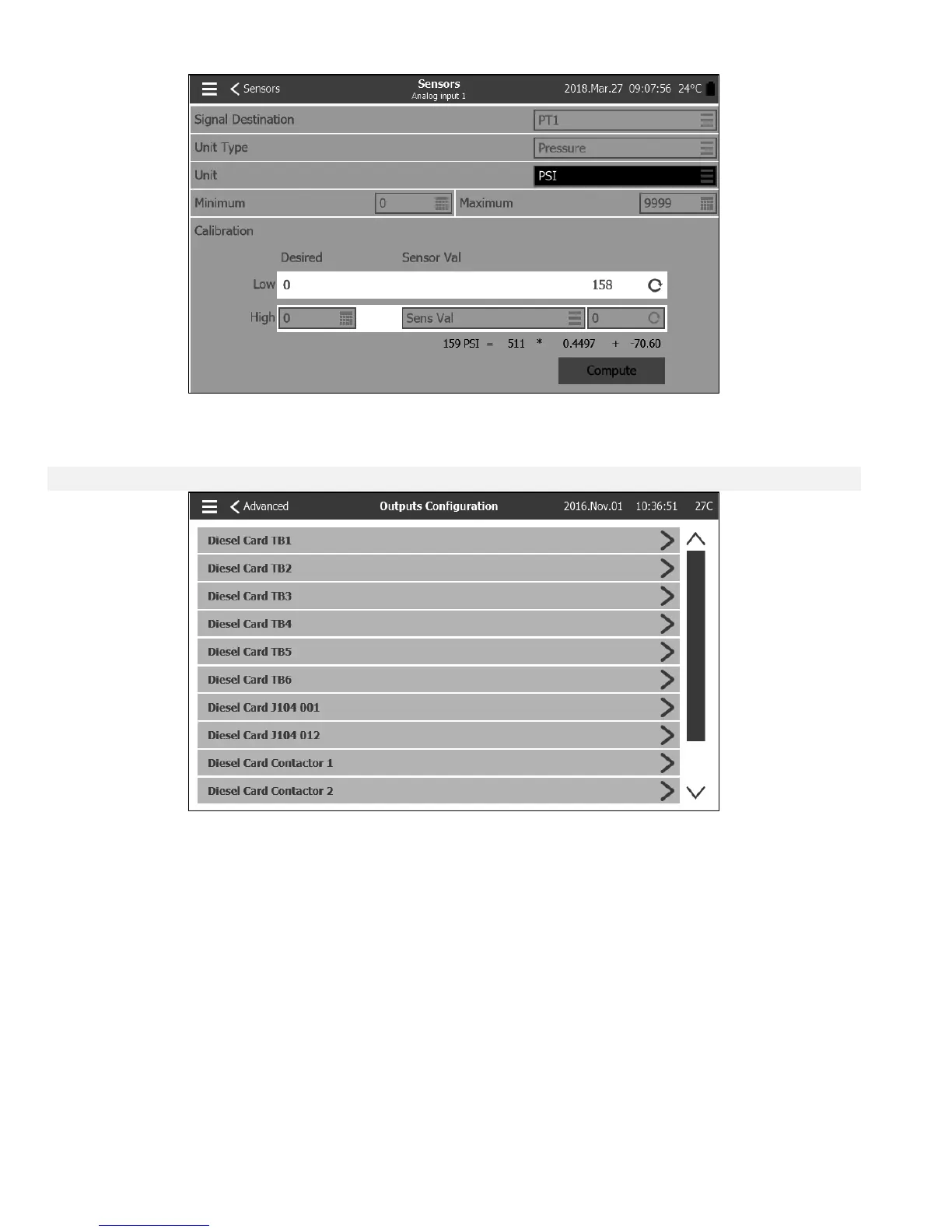

For the pressure transducer PT1, the low point (zero) is automatically acquired during first power up. It can be re-
acquired by pressing the blue round arrow. The high point needs to be entered in order to calibrate the sensor.
Outputs
Config > Advanced > Outputs
This page is used to choose the logic of the signals that will activate the Outputs on the IO board and to test those
Outputs.
- CTRL Trouble (TB1)
- Engine Run (TB2)
- HOA in Manual or OFF (TB3)
- Engine Trouble (TB4)
- Pump Room Trouble (TB5)
- Optionnal Output 1 (TB6)
- Fuel Solenoid (1)
- Stop Solenoid (12)
- Contactor 1 (9)
- Contactor 2 (10)
- Test Solenoid Valve
- Alarm Bell
Pressing on an Output will lead to this page:
