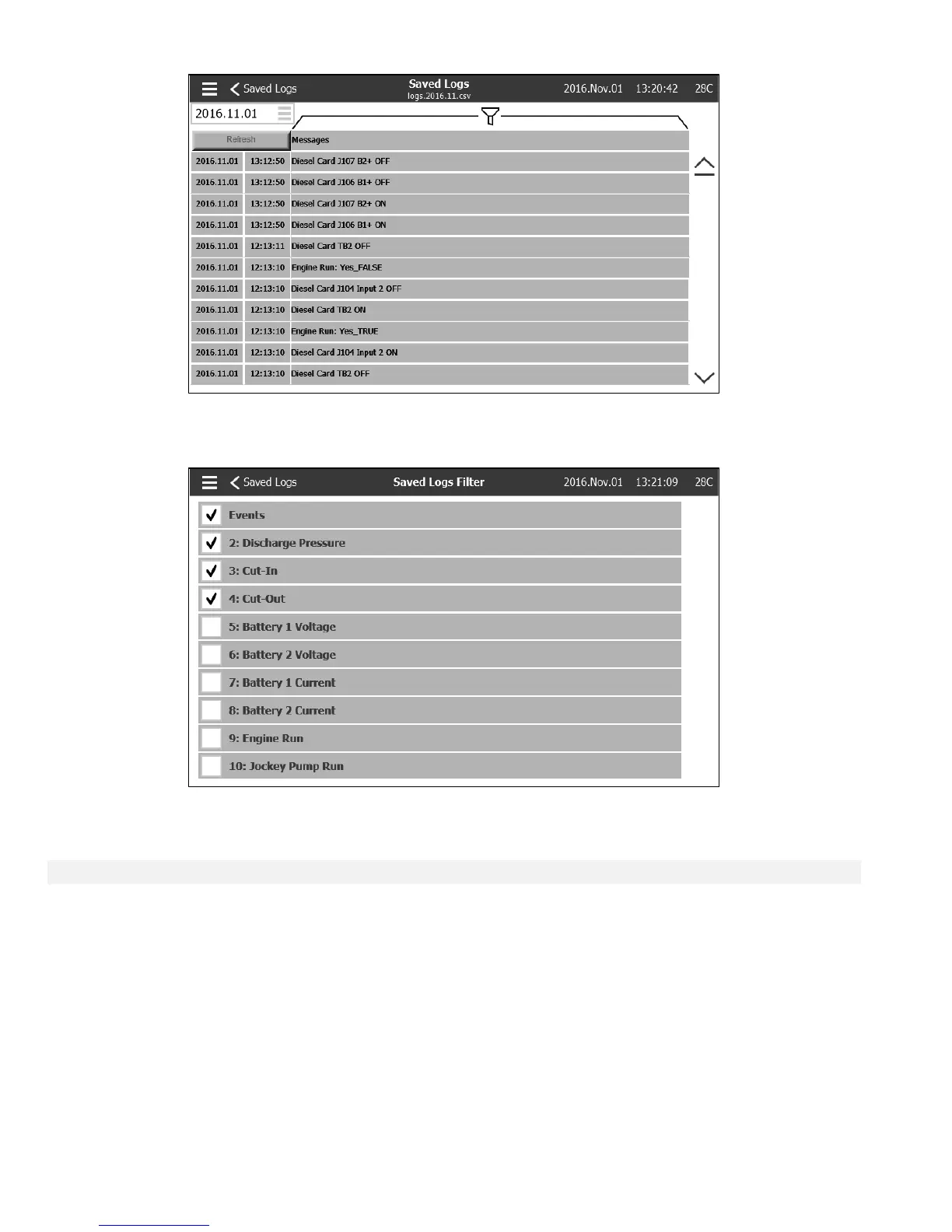

The logs are arranged chronologically. To select the displayed data, press on the filter icon in the top center of the
screen.
From this page, the selected values will be displayed. Press on “Log File” at the top left of the screen to go back to
the logs table.
Pump Curves
History > Pump Curves
This page is intended to help the customer generate the pump performance curve. In Auto mode, the controller will
sample the water flow exiting the pump, the system pressure and the suction at the entrance of the pump. The
appropriate sensor has to be installed for this mode to work. Each time the variation of a variable is important
enough, the controller will record the values and ring the bell. In manual mode, the user can manually enter the
values to generate the pump curve.
