Positioning the Turf Compensating Spring and Installing
the Hose Guide (continued)

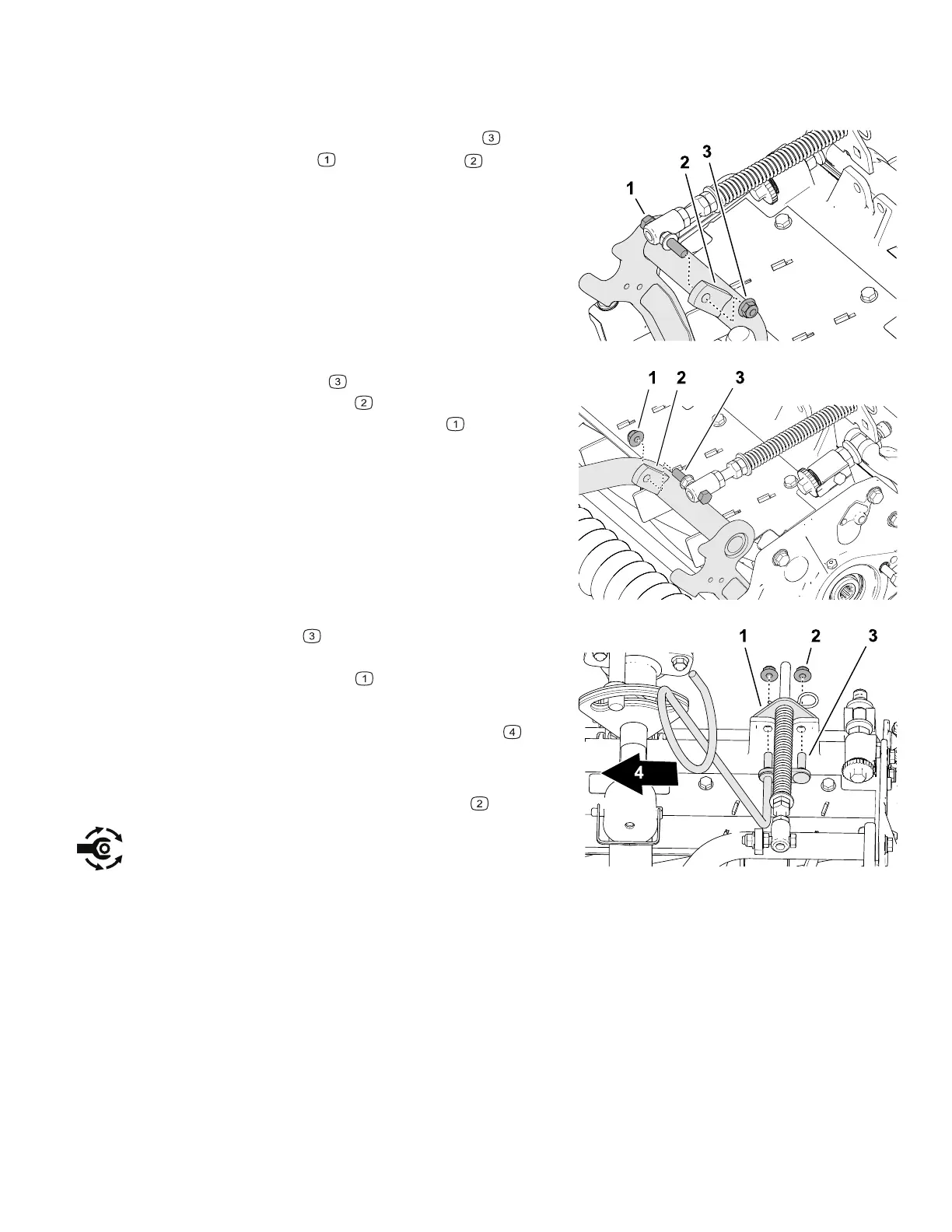

G410295
3. Remove the flange locknut (3/8 inch)
securing the bolt to the right tab of the
carrier frame, and remove the compensation
spring from the cutting unit.
Note: Do not remove the flange serrated nut
from the bolt.
G410296
4. Assemble the bolt of the turf compensation
spring to the right tab
of the carrier frame
with the flange locknut (3/8 inch)
.
G410297
5. Align the studs of the left hose guide with
the holes in the cutting-unit frame and the turf-
compensator bracket
.
Note: The support loop of the hose guide
aligns toward the center of the machine
.
6. Assemble the hose guide and turf-
compensator bracket to the cutting-unit frame
with the 2 flange locknuts (3/8 inch)
.
7. Torque the locknuts and bolts to 37 to 45 N∙m
(27 to 33 ft-lb).
Setup: Installing the Cutting Units Page 3–4 3464-482 A
