Reelmaster 7000--D
DPA Cutting Units
Page 9 -- 5

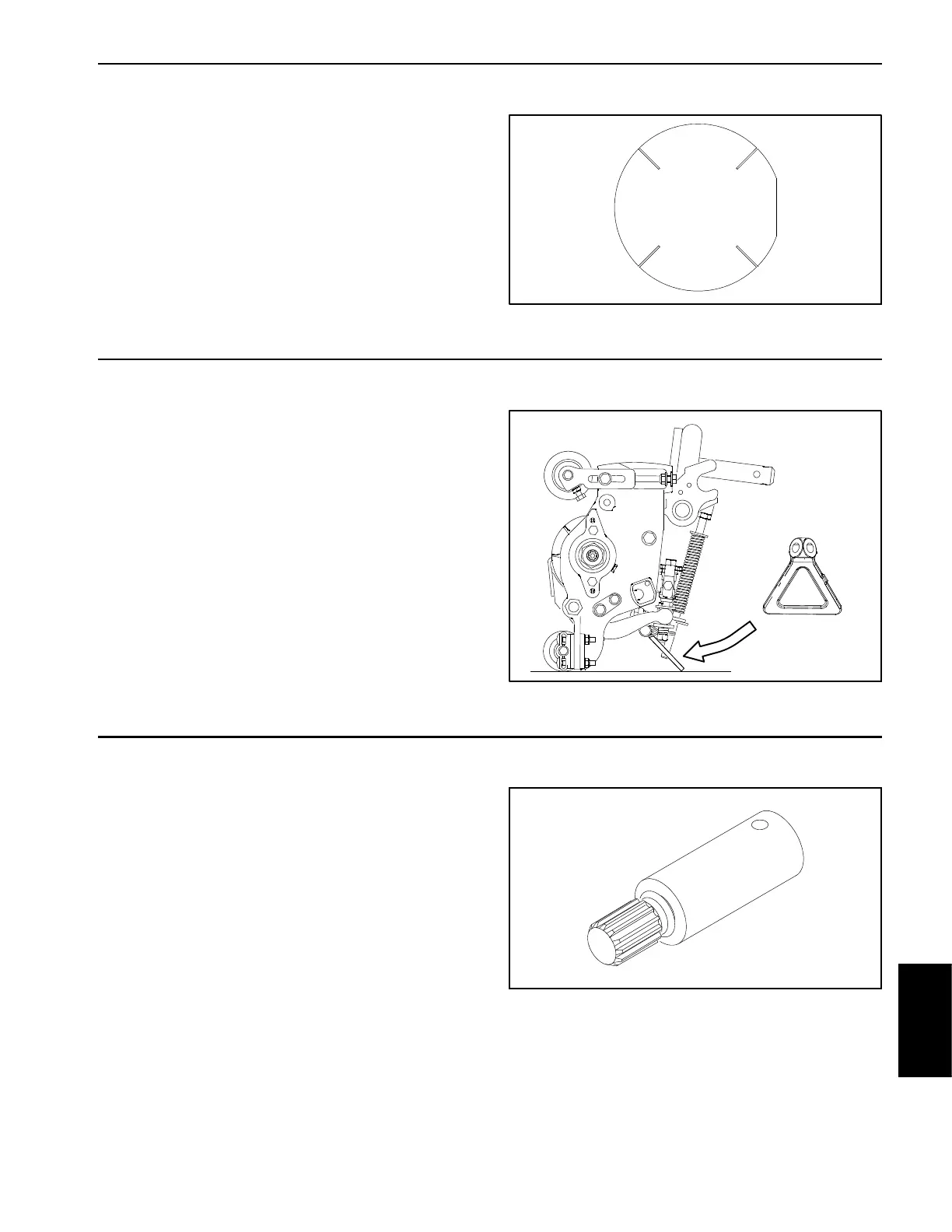

Plastic Plug
Toro Part Number: 94--2703
This plug is used for placement into the side plate bear-
ing housing when the hydraulic reel motor is removed.
It prevents dirt and debris from entering the cutting reel
bearing area.
Figure 5
Cutting Unit Kickstand
Toro Part Number: 119--8010--03
The cutting unit kickstand is used to prop up the rear of
the c utting unit during service. Use of this tool prevents
the bedbar adjusting screws from resting on the work
surface.
Figure 6
Spline Insert Tool
Toro Part Number: TOR4074 (9 tooth)
Use the spline insert tool for rotating the cutting reel
when hydraulic motor is removed. Also, use this tool for
installation of threaded inserts into the cutting reel shaft.
Figure 7
DPA Cutting
Units
