Reelmaster 7000--D
DPA Cutting Units
Page 9 -- 6

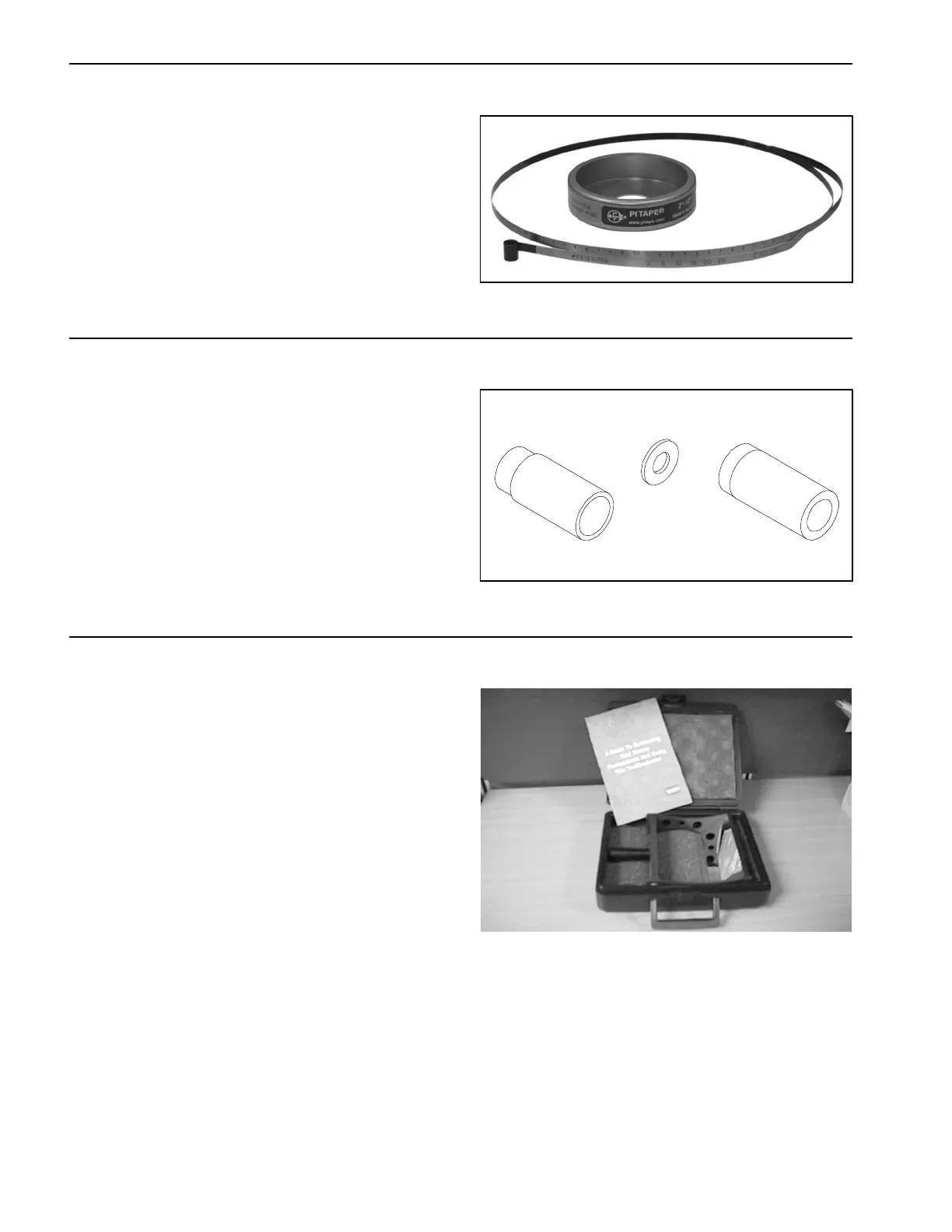

Diameter/Circumference Measuring Tape
Toro Part Number: TOR6023
Spring steel measuring tape for accurately measuring
the circumference and outside diameter of cutting reel
and other spherical components. Tape calibration is in
fixed inch readings (no adjustments).
Figure 8
Roller Rebuild Kit
Toro Part Number: 115--0803
This tool kit is used to assemble the cutting unit r ollers.
Tools in this kit are also available individually as follows:
115-- 0852 Inner Seal Tool
115--0853 Bearing/Outer Seal Tool
107-- 8133 Bearing Installation Washer
Figure 9
Inner Seal
Tool
Bearing/Outer Seal
Bearing Installation
Washer
Tool
Turf Evaluator Tool
Toro Model Number: 04399
Many turf discrepancies are subtle and require closer
examination. In these instances, the Turf Evaluator
grass viewing tool is helpful. It can assist turf managers
and service technicians in determining causes for poor
reel mower performance and in comparing the effective
height--of--cut of one mowed surface to another. This
tool should be used with the Toro Guide to Evaluation
Reel Mower Performance and Using the TurfEvaluator
(Toro part no. 97931SL).
Figure 10
