Reelmaster 7000--D
DPA Cutting Units
Page 9 -- 7

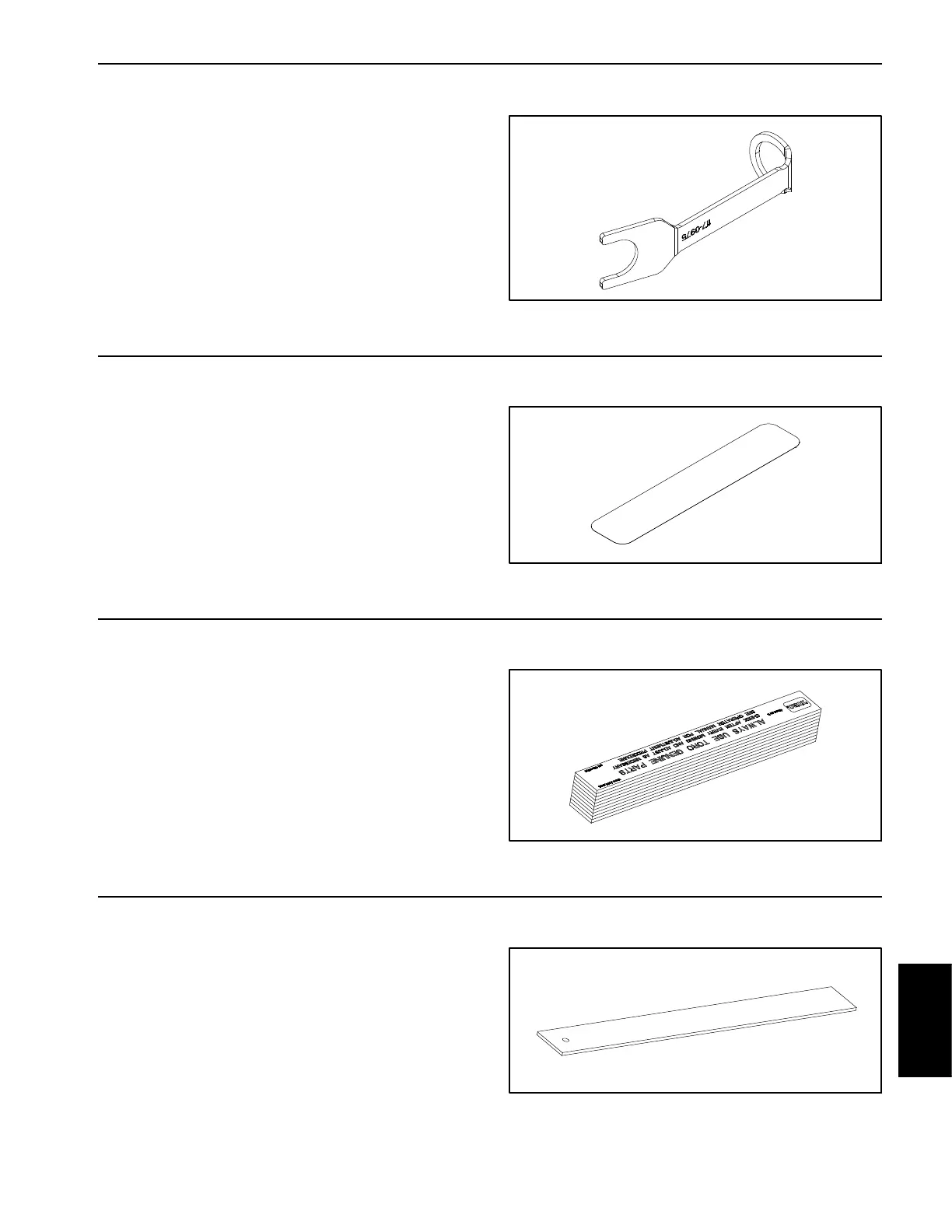

Reel Bearing Installation Tool (cutting units with painted side plates)
Toro Part Number: 117 -- 0975
Use the reel bearing installation tool to keep the reel
bearings aligned during reel installation.
Figure 11
Cutting Reel Shim
Toro Part Number: 125--5611
The cutting reel shim (0.002”) is used to help parallel t he
bedknife and cutting reel.
Figure 12
Cutting Performance Paper
Toro Part Number: 125--5610
Cutting performance paper is used to test the cutting
reel performance after adjusting the reel to bedknife
clearance. 10 packs (30 strips per pack) of cutting p er -
formance paper are included in this part number.
Figure 13
Pulley Alignment Tool
Toro Part Number: 114 -- 5446
Use the alignment tool for aligning optional rear roller
brush d rive pulleys.
Figure 14
